Extends Your Existing HDMI Cable Run by 20 ft.

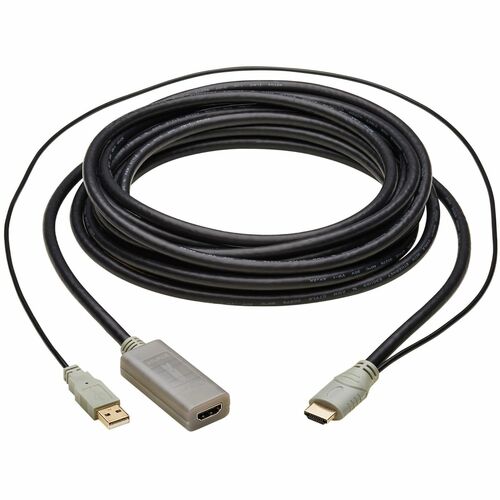

The dependable P569-020-MF-ACT (M/F) connects to your existing HDMI cable to extend the run by 20 feet (6.1 meters). This allows you more flexibility in placing, for instance, a cable box or media server connected to an HDMI-enabled television, monitor or projector.
Transmits Crystal-Clear 4K Video with HDR and 4:4:4 Color
This extension cable supports Ultra HD 4K resolutions up to 3840 x 2160 at 60 Hz, as well as HDR, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This cable also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Ready to Use Right from the Package, So You Can Plug and Play Immediately
The extension cable requires no software or external power. Its active repeater allows you to connect two devices farther apart than USB's standard five-meter limit without the cost of an external signal booster. An audio return channel simplifies setups between displays and receivers. When used with an Apple digital A/V adapter, the cable supports video mirroring for playing games, watching videos or displaying presentations.
TAA-Compliant for GSA Schedule Purchases
The P569-020-MF-ACT is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- Features Active
- Offers intense audio and video compatibility
- With HDMI and USB connectors, transfer high-quality pictures and 3D sound effects simultaneously at a high-speed
Spécifications techniques
| Miscellaneous | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Restriction of Hazardous Substances (RoHS) | |
| General Information | |
| Product Type | A/V Cable |
| Manufacturer Part Number | P569020MFACT |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | P569-020-MF-ACT |
| Product Name | P569-020-MF-ACT HDMI Extension Audio/Video Cable |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Gray |
| Black | |
| Color Family | Dual Color |
| Product Material | PVC |
| Jacket Color | Black |
| Connector Color | Gray |
| Technical Information | |
| Cable Length | 20 ft (6.10 m) |
| Device Supported | HDTV |
| Projector | |
| PC | |
| Monitor | |
| Media Server | |
| Audio/Video Device | |
| Jacket Type | VW-1 |
| Features | Active |
| Plug & Play | |
| HDR Support | |
| HDCP 2.2 | |
| Audio Return Channel (ARC) | |
| Repeater | |
| Bendable | |
| Extended Display Identification Data (EDID) | |
| HDCP 1.4 | |
| Cable Characteristic | Extension Cable |
| Cable Type | HDMI/USB |

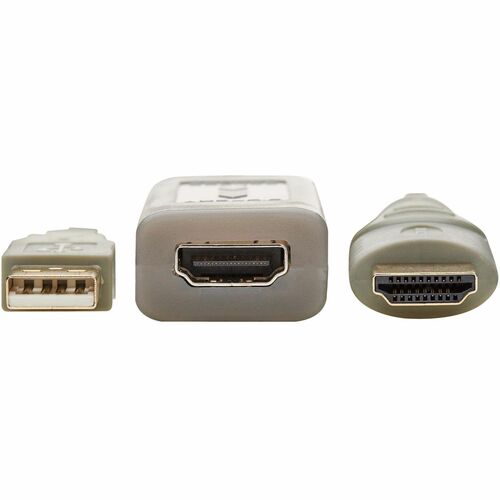

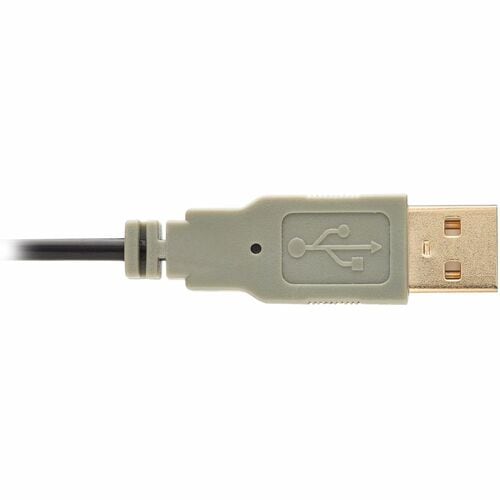

| Connector Type on First End | USB Type A - Male |
| HDMI Digital Audio/Video - Male | |
| Connector Type on Second End | HDMI Digital Audio/Video - Female |
| Connector Plating | Gold |
| American Wire Gauge | 28 AWG |
| Supported Resolution | 3840 x 2160 |
| Contact Plating | Gold |

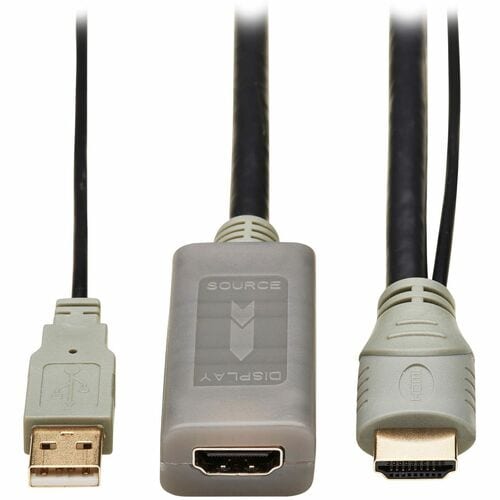

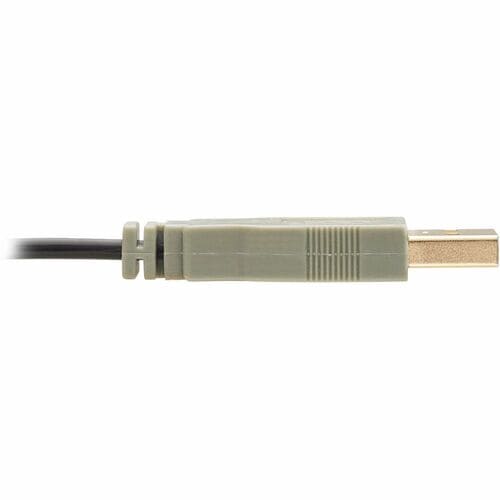

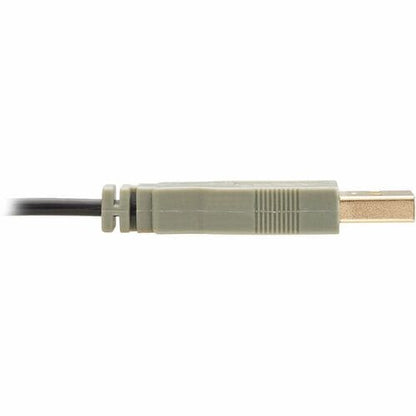

| Connector on First End Details | 1 x USB Type A - Male |

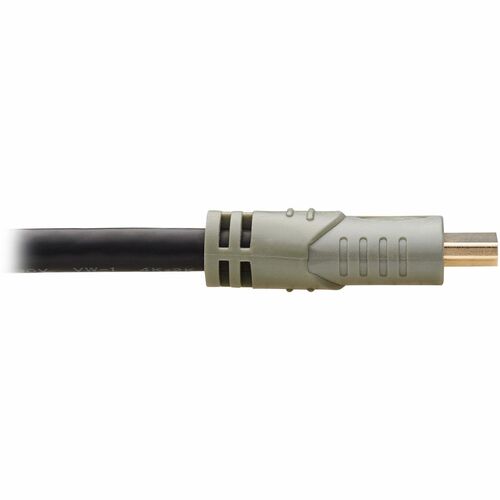

| 1 x HDMI Digital Audio/Video - Male | |

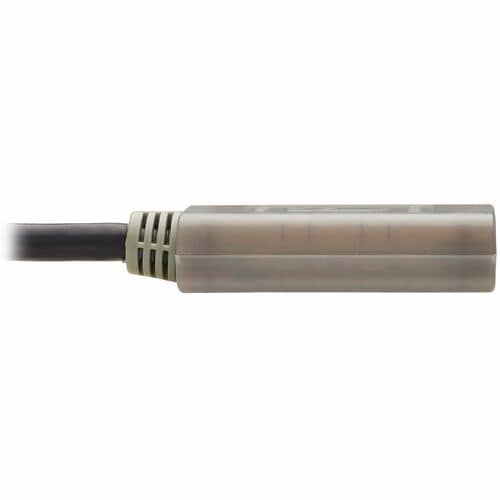

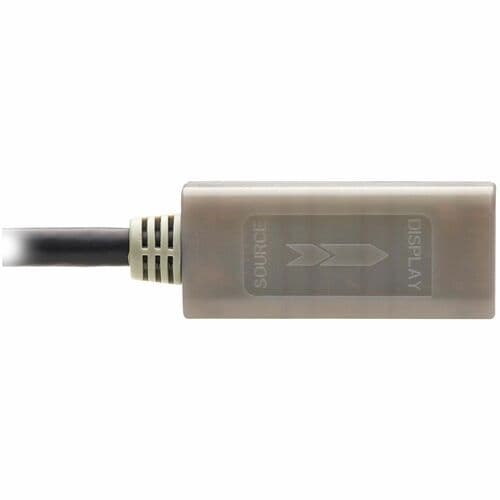

| Connector on Second End Details | 1 x HDMI Digital Audio/Video - Female |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Female |
