À propos du produit

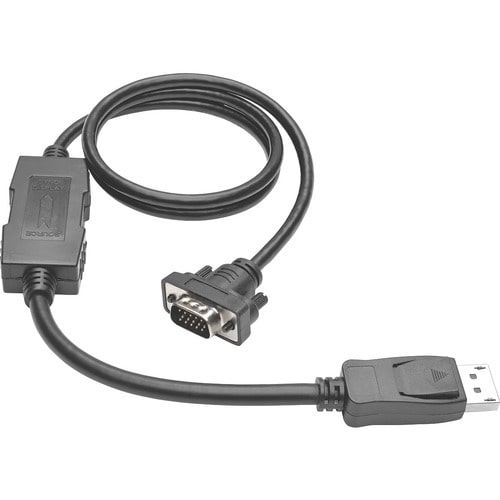

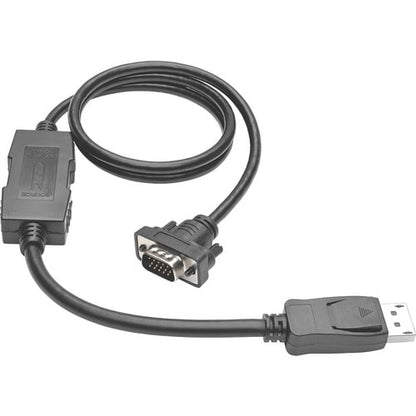

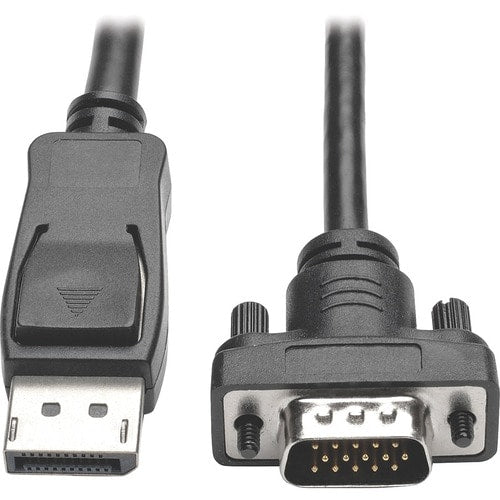

The P581-010-VGA-V2 DisplayPort 1.2 to VGA Active Adapter Cable with inline signal converter connects a DisplayPort computer to the VGA port on a monitor, projector or television. With a latching DisplayPort male connector on one end and an HD15 male connector on the other, this cable requires no separate adapter. It features a low profile VGA connector that fits neatly into the available monitor space, without jamming between the wall and the back of the display or impeding neighboring connectors. It lets you use your existing VGA display instead of buying a new DisplayPort monitor.Ideal for displaying video on a large monitor or digital sign, this cable supports computer video resolutions up to 1920 x 1200 and high-definition video resolutions up to 1920 x 1080 (1080p). It converts both Single-Mode and Dual-Mode (DP++) DisplayPort output, and is perfect for use with graphics cards, such as AMD Eyefinity, that do not output DP++ signals.First-class foil and braid shielding delivers reliable, error-free signal quality and protection from EMI/RFI interference. Nickel-plated connectors with gold-plated contacts ensure excellent conductivity. The DisplayPort plug latches to the port to provide a secure connection. Integral strain relief ensures the cable and molded connectors last a long time.
- Active adapter cable for use with any Displayport port
- Low-profile VGA connector fits neatly into available space; no jamming between wall and monitor or impeding neighboring connections
- Supports computer video resolutions up to 1920 x 1200
- Supports HD video resolutions up to 1920 x 1080 (1080p)
- No separate adapter required
- Nickel-plated connectors with gold-plated contacts
Spécifications techniques
| Miscellaneous | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 7.04 oz (199.58 g) |
| Shipping Height | 9" (228.60 mm) |
| Shipping Width | 7" (177.80 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Video Cable |
| Manufacturer Part Number | P581010VGAV2 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | P581-010-VGA-V2 |
| Product Name | P581-010-VGA-V2 DisplayPort 1.2 to VGA Active Adapter Cable, 10 ft. |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 10 ft (3.05 m) |
| Device Supported | Projector |
| Monitor | |
| TV | |
| Graphics Card | |
| Video Device | |
| Shielding | Yes |
| Features | Active |
| EMI/RF Protection | |
| Eyefinity Technology | |
| Molded | |
| Strain Relief | |
| Cable Type | DisplayPort/VGA |
| Connector Type on First End | HD-15 - Male |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Plating | Nickel |
| Supported Resolution | 1920 x 1200 |
| Contact Plating | Gold |
| Connector on First End Details | 1 x 15-pin HD-15 - Male |
| Connector on Second End Details | 1 x DisplayPort 1.2 Digital Audio/Video - Male |
