À propos du produit

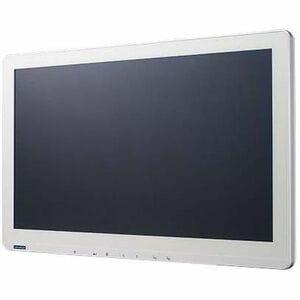

Designed to deliver medical images of optimal quality, the PAX-327 monitor supports Full HD and UHD resolution. Featuring the Rec. 709 Color Space, true RGB and DICOM Part 14 GSDF compliance, 14-bit LUT processing grayscale, hardware calibration support, and automatic input source detection, PAX-327 ensures precise representation of grayscale images.
- 27" true-flat monitor with AR filter
- High-brightness display with a high contrast ratio
- FHD resolution (1920 x 1200)/UHD resolution (3840 x 2160)
- DVI and RGB support resolutions of up to 1920 x 1200 @ 60 Hz
- HDMI 2.0, DP 1.2, and SDI support resolutions of up to 3840 x 2160 @ 60Hz
- Multi-standard (NTSC, PAL, SECAM) video input receiver
- Operating temperature 0 ~ 40 °C/32 ~ 104 °F; storage temperature -20 ~ 60 °C/-4 ~ 140 °F
- Video enhancement features
- 14-bit LUT processing
- DICOM Part 14 GSDF compliant
Spécifications techniques
| Miscellaneous | |
| Package Contents |
|
| Power Description | |
| Operating Power Consumption | 96.50 W |
| Video | |
| Brightness | 800 cd/m² |
| Color Supported | 1.07 Billion Colors |
| Maximum Resolution | 3840 x 2160 |
| Native Contrast Ratio | 1,000:1 |
| Physical Characteristics | |
| Weight (Approximate) | 22.84 lb (10360 g) |
| Height | 16.46" (418.11 mm) |
| Width | 26.14" (663.83 mm) |
| Depth | 2.90" (73.55 mm) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| General Information | |
| Product Type | LCD Monitor |
| Manufacturer Part Number | PAX327C8AHAS |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | PAX-327 |
| Product Name | PAX-327 Widescreen LCD Monitor |
| Brand Name | Advantech |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| HDMI Version | 2.0 |
| DVI | Yes |
| Number of USB Ports | 1 |
| DisplayPort | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Number of DisplayPorts | 2 |
| Number of DVI Ports | 4 |
| Technical Information | |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 6.11 mil (0.16 mm) |
| Response Time | 14 ms |
| Viewable Screen Size | 27" |
| Screen Mode | 4K UHD |
| Number of Screens | 1 |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Panel Technology | In-plane Switching (IPS) Technology |
| Screen Size Class | 27" |
| Ingress Protection (IP) Rating | IPX1 |
| IP65 | |
| Response Time Details | 14ms Tr+Tf |
