À propos du produit

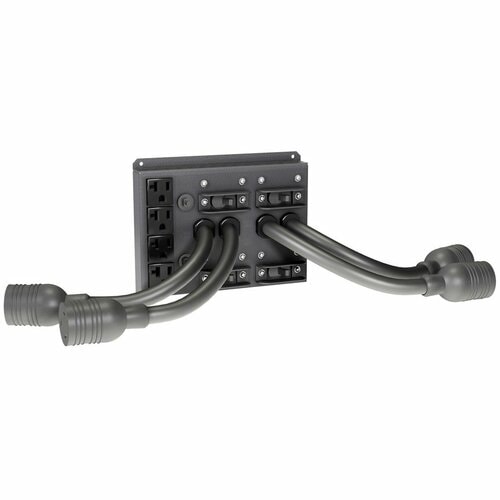

The Vertiv Liebert POD PD2-102 is a power output distribution (POD) unit with built-in maintenance bypass feature. Designed for the GXT4 8-10kVA uninterruptible power supply (UPS) models, it is a POD that allows you to conduct UPS maintenance or replacements without power interruption to the connected load. It also automatically transfers the current from the UPS to the original power source in cases of UPS failures, saving your equipment from unnecessary downtimes and ensuring continuous uptime for your system. The PD2-102 is a plug-and-play unit that will replace the existing POD box on your UPS. It has four NEMA 5-20 and four NEMA L6-30 output connectors and is equipped with a 2PH+N+G Hardwire 4-wire input connector. It also has a circuit breaker and supports a max current of 60A.
- Power output distribution unit with UPS maintenance bypass feature
- Avoid initiating unnecessary downtimes while conducting UPS maintenance
- Easy plug-and-play deployment to ensure continuous uptime of your network even during UPS maintenance
- Output: Four (4) NEMA 5-20R, Four (4) NEMA L6-30R| Max Current: 60A
- Input: Hardwire 4-wire (2PH+N+G)
Spécifications techniques
| Miscellaneous | |
| Additional Information | Power distribution |
| Compatibility | Liebert UPS Systems:
|
| Physical Characteristics | |
| Weight (Approximate) | 6.60 lb (2993.71 g) |
| Height | 5.70" (144.78 mm) |
| Width | 7.40" (187.96 mm) |
| Technical Information | |
| Plug/Connector Type | Hardwire Terminal Block 3W + G |
| Receptacle Type | NEMA L6-20R |
| NEMA 5-15R/20R | |
| Receptacle Detail | 4 x NEMA L6-20R |
| 4 x NEMA 5-15R/20R | |
| Plug/Connector Detail | 1 x Hardwire Terminal Block 3W + G |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PD2-102 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | PD2-102 |
| Product Name | PD2-102 8-Outlets PDU |
| Brand Name | Vertiv Liebert |
