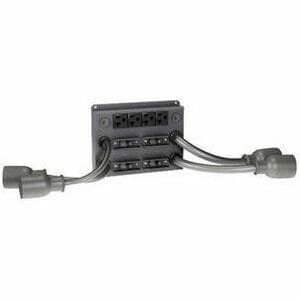

The Vertiv Liebert POD PD2-105 is a power output distribution (POD) unit with built-in maintenance bypass feature. Designed for the GXT4 8-10kVA uninterruptible power supply (UPS) models, it is a POD that allows you to conduct UPS maintenance and replacements without power interruption to the connected load. It also automatically transfers the current from the UPS to the original power source in cases of UPS failures, saving your equipment from unnecessary downtimes and ensuring continuous uptime for your system. The PD2-105 is a plug-and-play unit that will replace the existing POD box on your UPS. It has four NEMA 5-30R, two NEMA 5-20R, and NEMA L5-20R output connectors and is equipped with a 2PH+N+G Hardwire 4-wire input connector. It also has a circuit breaker and supports a max current of 60A.
- Power output distribution unit with UPS maintenance bypass feature
- Avoid initiating unnecessary downtimes while conducting UPS maintenance
- Easy plug-and-play deployment to ensure continuous uptime of your network even during UPS maintenance
- Output: Four (4) NEMA 5-30R, Two (2) NEMA 5-20R, Two (2) NEMA L5-20R| Max Current: 60A
- Input: Hardwire 4-wire (2PH+N+G)
Spécifications techniques
| Miscellaneous | |
| Additional Information | Power distribution |
| Compatibility | Liebert UPS:
|
| Physical Characteristics | |
| Weight (Approximate) | 4.40 lb (1995.81 g) |
| Height | 5.70" (144.78 mm) |
| Width | 7.40" (187.96 mm) |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PD2-105 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | PD2-105 |
| Product Name | PD2-105 8-Outlets PDU |
| Brand Name | Vertiv Liebert |
| Technical Information | |
| Plug/Connector Type | Hard Wire 4-wire (2PH+N+G) |
| Receptacle Type | NEMA L5-20R |
| NEMA 5-15R/20R | |
| NEMA L5-30R | |
| Receptacle Detail | 4 x NEMA 5-15R/20R |
| 2 x NEMA L5-30R | |
| 2 x NEMA L5-20R | |
| Plug/Connector Detail | 1 x Hard Wire 4-wire (2PH+N+G) |
