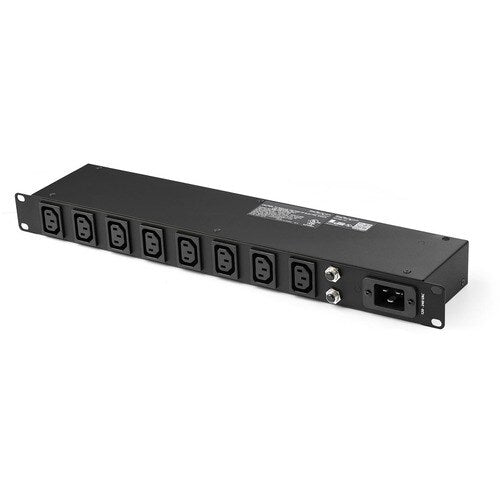

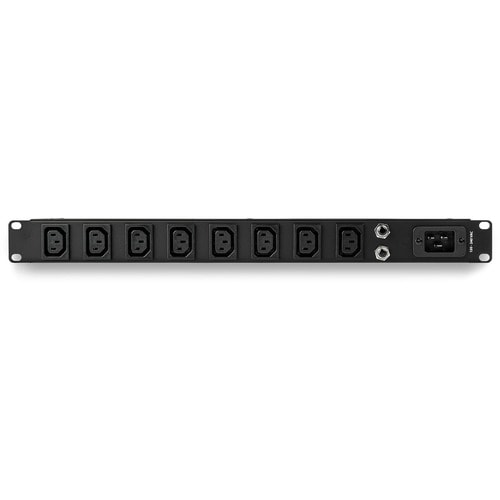

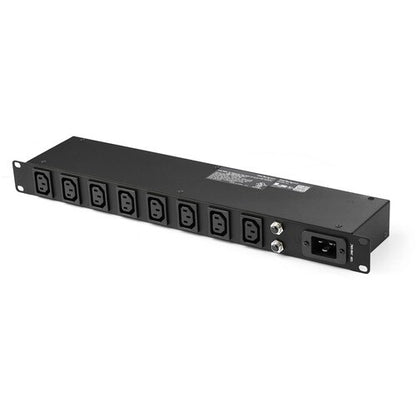

This rack-mount PDU features eight C13 outlets and you can install it into 1U of rack space to power your rack-mount equipment. The PDU provides 16 amps of power to be shared across the eight outlets.

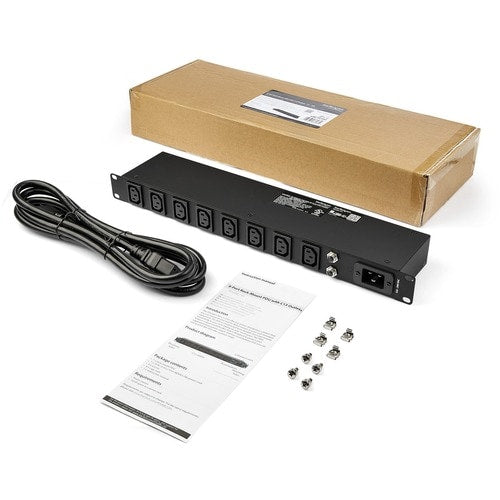

Sleek, professional installationUnlike some rack power solutions that mount awkwardly, if at all, this rack-mount PDU is EIA-310D compliant, which ensures a secure and tidy installation into any 19" rack with 1U of available space. Mounting screws and cage nuts are also included to ensure you have everything you need, saving you time and hassle.
Flexible power solutionFor maximum compatibility with your devices, this PDU features C13 outlets which are ideal for a wide range of globally distributed devices including I.T equipment, office equipment, measuring instruments and medical devices. Plus, with a total of eight C13 outlets, the PDU can distribute power to your entire rack.

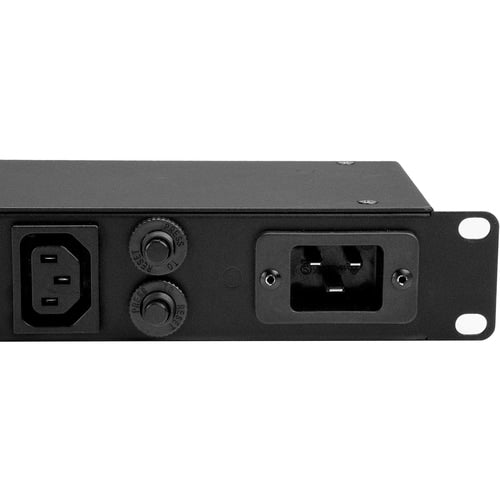

Protects your equipmentIn the event of random energy surges that can occur during power outages or other anomalies, this PDU prevents costly damages to your equipment with a built-in dual circuit breaker, ensuring your equipment is protected.
The housing of this PDU is also constructed of rugged steel to provide maximum durability in any environment.
The PDU08C13H is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- 8 POWERFUL NEMA C13 OUTLETS: Rack mount PDU provides up to 16A/120V (1920VA) or 20A/240V (4800 VA) for servers & equipment; 1U rack space for easy accessibility; 10ft/3m C19 to NEMA5-20p cord incl.
- 3600 JOULE CIRCUT PROTECTION: Built-in resettable circuit breaker that acts as a surge protector or shields from unintentional overloads in data center; Safety listed for performance and peace of mind
- CONFIGURABLE EIA-310D COMPLIANT DESIGN: Installable in standard 19in. 2 or 4 post rack using incl. cage nuts/screws; C20 power cord allows any local plug config for 120 or 240 V single phase in/out
- SPECS: 1U 19in. Horizontal PDU
- 8x IEC C13 Pwr out
- C20 Pwr input (1 phase)
Spécifications techniques
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU08C13H |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 8-Outlet PDU |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Weight (Approximate) | 4.90 lb (2222.60 g) |
| Length | 3.90" (99.06 mm) |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 18.90" (480.06 mm) |
| Mounting Orientation | Horizontal |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Output Voltage | 240 V AC |
| Input Current | 20 A |
| Input Voltage Range | 110 V AC - 240 V AC |
| Output Voltage Range | 110 V AC - 240 V AC |
| Power Rating (VA) | 1.92 kVA |
| Technical Information | |
| Protection Type | Circuit Protection |
| Surge Protection | |
| Plug/Connector Type | IEC 60320 C20 |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Plug/Connector Detail | 1 x IEC 60320 C20 |
