À propos du produit

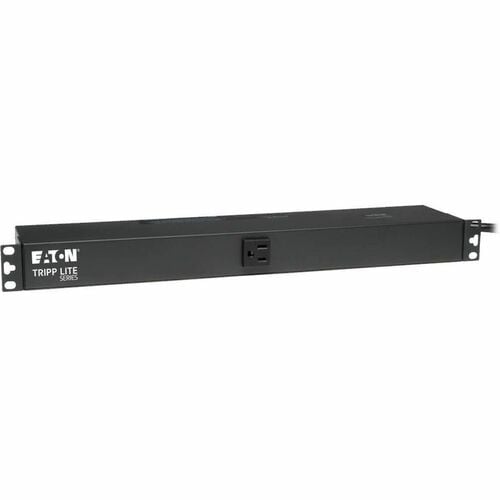

Tripp Lite's PDU1215 AC power distribution unit offers 15 amp, 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19 inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with all rear-facing outlets measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes PDU1215 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 12 rear-facing NEMA5-15R outlets and one front-facing, 15-ft. AC power cord, 15 amp circuit breaker, grounding lug and rugged all-metal case design.PLUG/OUTLETS - Input: NEMA 5-15P/Output: 13 NEMA5-15R (12 rear-facing, one front-facing)ELECTRICAL - 120V AC, 50/60Hz, 15A (Requires NEMA 5-15R wall receptacle)FORMAT - Supports 19 in. rackmount (1U/0U), wallmount, under-counter and more
- Basic single phase 15A 120V PDU
- 1U horizontal rackmount installation

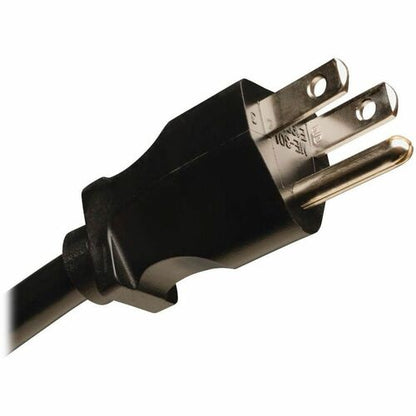

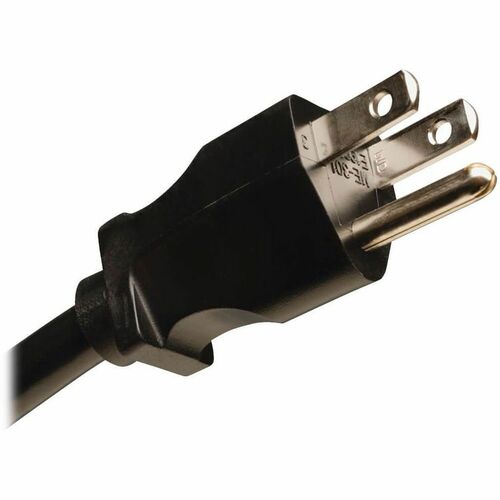

- NEMA 5-15P input; 15 ft. / 4.5m line cord

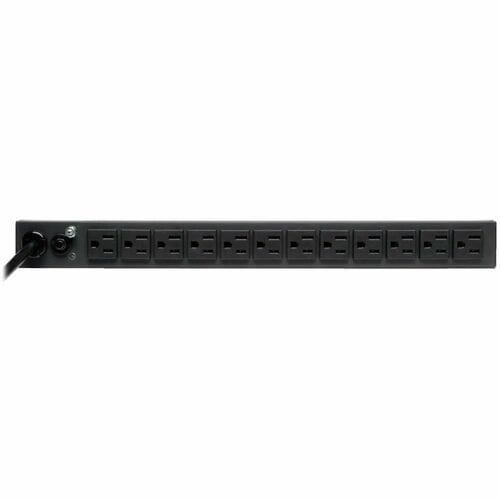

- 13 NEMA 5-15R outlets (1 front / 12 rear)
- Switchless design prevents accidental shut-off
Spécifications techniques
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 15 A |
| Power Rating (Watt) | 1.80 kW |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15R |
| PDU Type | Basic |
| Receptacle Detail | 13 x NEMA 5-15R |
| Plug/Connector Detail | 1 x NEMA 5-15P |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU1215 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDU1215 |
| Product Name | PDU1215 PDU Basic 120V 15A 13 Outlet |
| Brand Name | Tripp Lite by Eaton |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Compatibility | TYPICAL APPLICATIONS: Multi-outlet power distribution unit is the ideal means of powering multiple loads in 19 inch rackmount, wallmount and under-counter applications, such as internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement and more. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipment. |
| Certifications & Standards | cUL, UR |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 4.90 lb (2222.60 g) |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 2" (50.80 mm) |
| Width | 20" (508 mm) |
| Depth | 4.50" (114.30 mm) |
| Mounting Orientation | Horizontal |
