À propos du produit

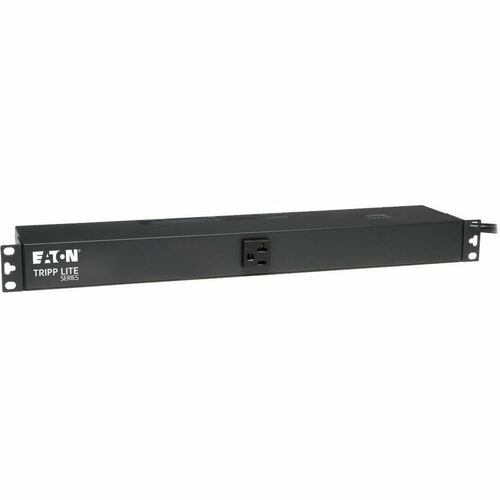

Tripp Lite's PDU1220T AC power distribution unit offers 20 amp, 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19 inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 12 rear-facing outlets and one front-facing measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes PDU1220T ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 12 rear-facing NEMA5-20R outlets, 1 front-facing NEMA5-20R outlet, NEMAL5-20P twist lock plug, 15 ft. AC power cord, 20 amp circuit breaker, grounding lug and rugged all-metal case design. PLUG/OUTLETS - Input: NEMA L5-20P/Output: 13 NEMA5-20R (12 rear-facing, one front-facing)ELECTRICAL - 120V AC, 50/60Hz, 20A (Requires NEMA L5-20R wall receptacle)FORMAT - Supports 19 in. rackmount (1U/0U), wallmount, under-counter and more
- Basic single phase 20A 120V PDU
- 1U horizontal rackmount installation

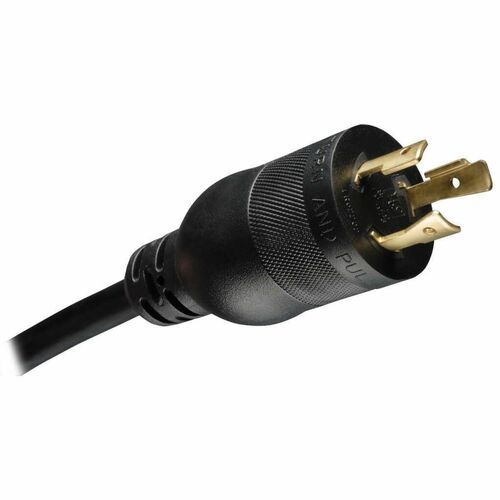

- NEMA L5-20P locking input; 15 ft. / 4.5m line cord

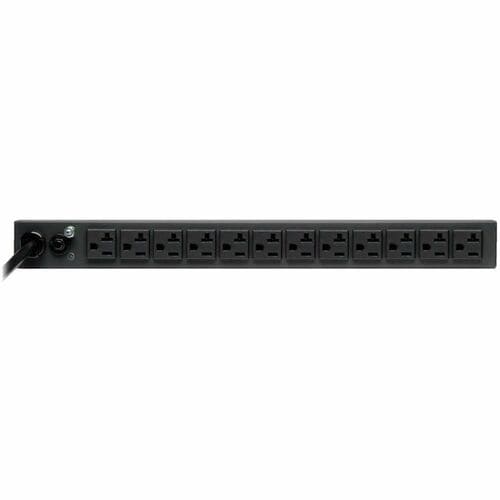

- 13 NEMA 5-15/20R outlets (1 front / 12 rear)
Spécifications techniques
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Physical Characteristics | |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Number of Cord/Cable | 1 |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Compatibility | TYPICAL APPLICATIONS: Multi-outlet power distribution unit is the ideal means of powering multiple loads in 19 inch rackmount, wallmount and under-counter applications, such as internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement and more. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipment |
| Certifications & Standards | UL, cUL |
| Country of Origin | China |
| Technical Information | |
| Plug/Connector Type | NEMA L5-20P |
| Receptacle Type | NEMA 5-20R |
| PDU Type | Basic |
| Receptacle Detail | 13 x NEMA 5-20R |
| Plug/Connector Detail | 1 x NEMA L5-20P |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU1220T |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDU1220T |
| Product Name | PDU1220T PDU Basic 120V 20A L5-20P 13 Outlet |
| Brand Name | Tripp Lite by Eaton |
