À propos du produit

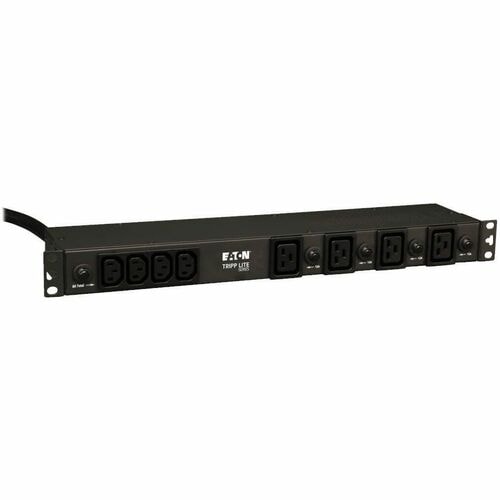

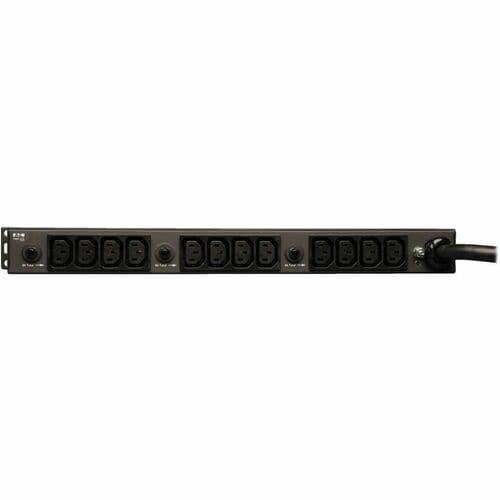

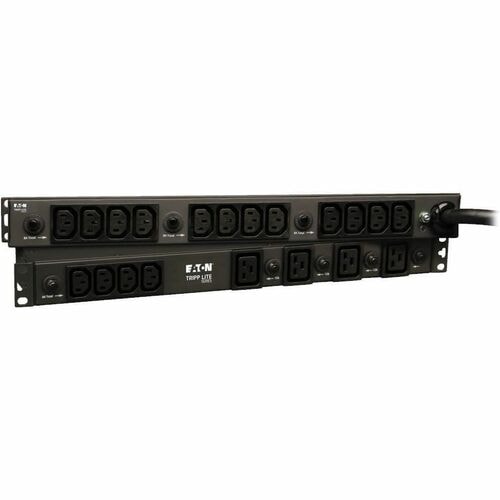

Tripp Lite's PDU1230 offers 208/240V power distribution with L6-30P input plug, 15-foot cord and 20 total output receptacles. Features 4 front-panel C19 outlets, each protected by separate 15A circuit breakers, 4 front-panel C13 outlets and 12 rear-panel C13 outlets protected in banks of 4 by 4 separate 10A circuit breakers. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19-inch rack, with the potential for 0U vertical mounting in the cable area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 8 front-facing and 12 rear-facing outlets measures only 5.2 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDU1230 ideal for distributing alternate waveform UPS or generator power in rack enclosures.
- Basic single phase 30A 208/240V PDU
- 1U horizontal rackmount installation
- NEMA L6-30P input; 15 ft. / 4.5m line cord
- 20 outlets (4 C19, 4 C13 front / 12 C13 rear)
Spécifications techniques
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| PDU Type | Basic |
| Receptacle Detail | 20 |
| Miscellaneous | |
| Additional Information | Output Receptacles:
|
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| 240 V AC | |
| Input Voltage Range | 208 V AC - 240 V AC |
| Power Rating (VA) | 4.99 kVA |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU1230 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDU1230 |
| Product Name | PDU1230 PDU Basic 208V / 240V 30A 20 Outlet |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Weight (Approximate) | 7.50 lb (3401.94 g) |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 5.20" (132.08 mm) |
| Mounting Orientation | Vertical |
