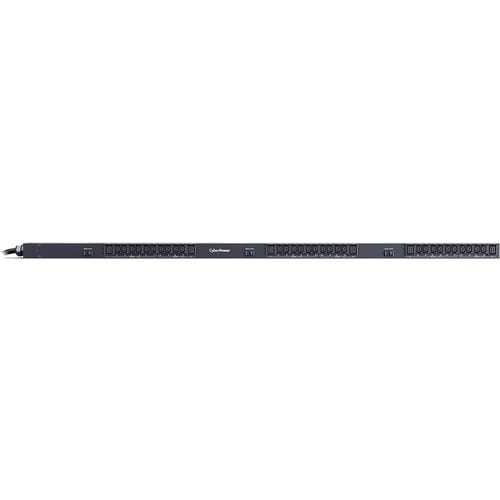

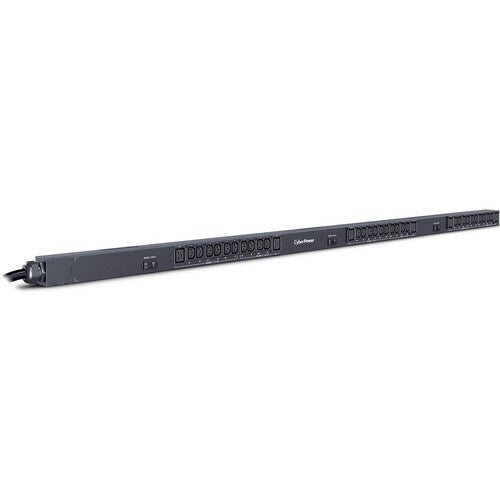

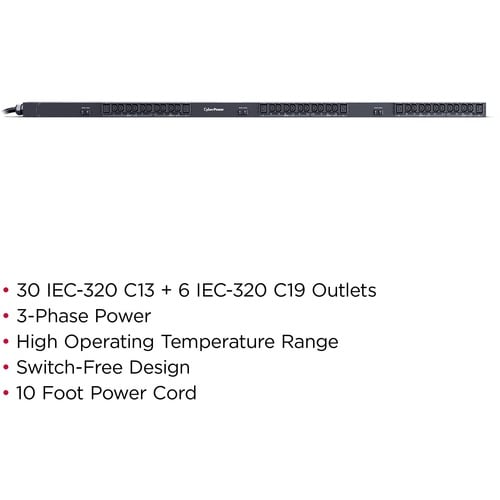

Deliver reliable unfiltered power to connected equipment with the CyberPower PDU13104 basic 3-Phase PDU. Designed for data centers and other electrically demanding applications, this unit features rugged, industrial-grade metal housing, network-grade outlets and operates in high temperatures up to 140°F (60°C).
The PDU13104 supports a 200V-240V 50A input, includes 36 IEC outlets, and provides a maximum output load of 14.5kW. The CyberPower PDU13104 is protected by a three-year limited warranty
The PDU13104 supports a 200V-240V 50A input, includes 36 IEC outlets, and provides a maximum output load of 14.5kW. The CyberPower PDU13104 is protected by a three-year limited warranty
- PDU is reliable for power protection and management solutions
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
Spécifications techniques
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU13104 |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PDU13104 |
| Product Name | PDU13104 36-Outlets PDU |
| Brand Name | CyberPower |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| 200 V AC | |
| Input Current | 50 A |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Voltage Range | 200 V AC - 240 V AC |
| Power Rating (Watt) | 5.70 kW |
| Technical Information | |
| Plug/Connector Type | Hubbell CS8365C |
| Phase | Three Phase |
| Receptacle Type | NEMA 5-20R |
| NEMA L6-20R | |
| PDU Type | Basic |
| Receptacle Detail | 30 x IEC 60320 C13 |
| 6 x NEMA L6-20R | |
| Physical Characteristics | |
| Weight (Approximate) | 13.89 lb (6300 g) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 70.50" (1790.70 mm) |
| Width | 2.20" (55.88 mm) |
| Depth | 2.20" (55.88 mm) |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
