À propos du produit

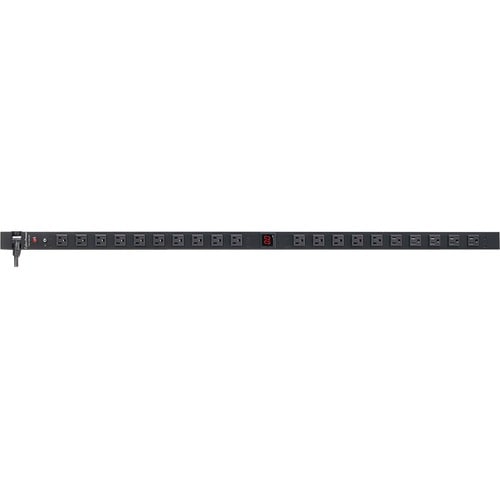

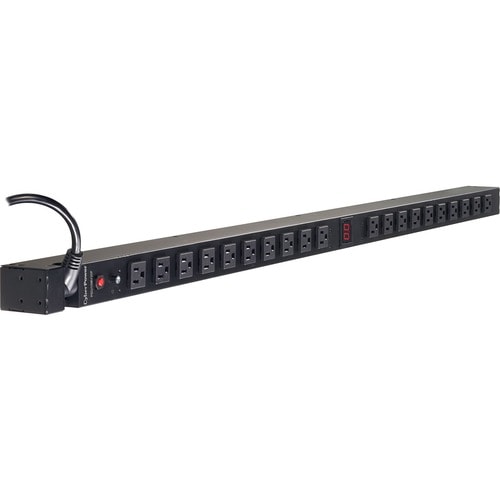

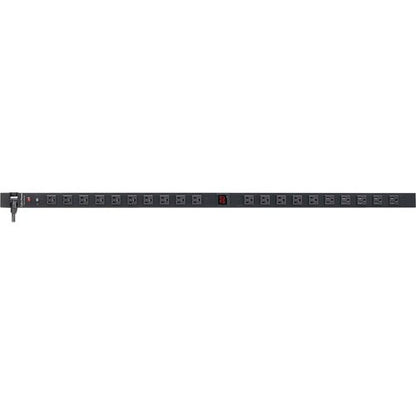

The CyberPower PDU15MV20F, a 20-outlet (front), 0U vertical rackmount metered power distribution unit (PDU), provides 100 - 125 V 15A output. It distributes power to 20 NEMA 5-15R receptacles from a single NEMA 5-15P plug with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.
Designed for datacenters and other electrically demanding applications, the PDU15MV20F has rugged, industrial-grade metal housing, and a 10-foot AC power cord. It supports vertical, horizontal, and wall mount installation. The PDU15MV20F comes with a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
Power DistributionDelivers AC power to servers, equipment, and connected devices via a power distribution unit.
Switch-Free Design
Safeguards against accidental power shutdown.
Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it's needed.
Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).
Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
Limited Lifetime Warranty
Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
What's In The Box
PDU, Cord Retention Tray, User Manual, Screw Kit, Cord Clip Kit, Horizontal Mounting Brackets, Vertical Mounting Brackets, Product Registration Card
- Metered PDU ; Enclosure Construction: Steel
- 20 NEMA 5-15R (20 Front) output receptacles
- 120V AC - 50/60Hz - 15-amp electrical capacity with circuit breaker
- 48 inch 0U Vertical Rack Mount - Rugged industrial metal housing
Spécifications techniques
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Energy Star | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Current | 15 A |
| Input Voltage Range | 100 V AC - 125 V AC |
| Output Voltage Range | 100 V AC - 125 V AC |
| Physical Characteristics | |
| Weight (Approximate) | 8 lb (3628.74 g) |
| Mount Type | Rack-mountable |
| Height | 48" (1219.20 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 2.25" (57.15 mm) |
| Mounting Orientation | Vertical |
| Technical Information | |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA 5-15P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15R |
| PDU Type | Metered |
| Receptacle Detail | 20 x NEMA 5-15R |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU15MV20F |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PDU15MV20F |
| Product Name | PDU15MV20F 20-Outlets PDU |
| Product Series | Metered PDU |
| Brand Name | CyberPower |
