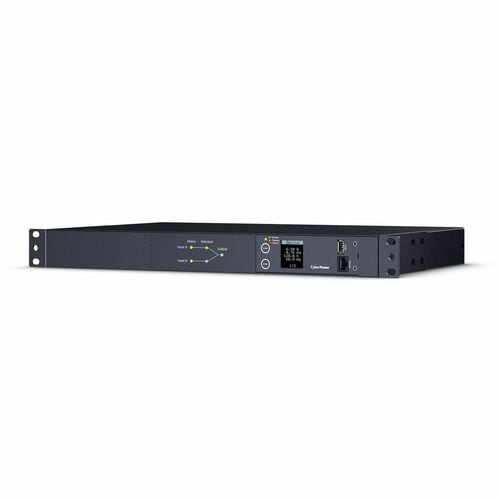

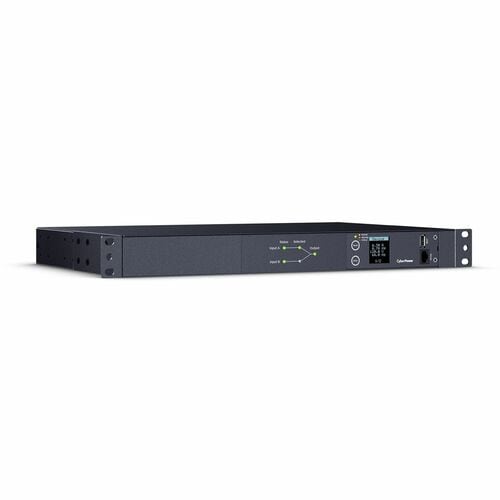

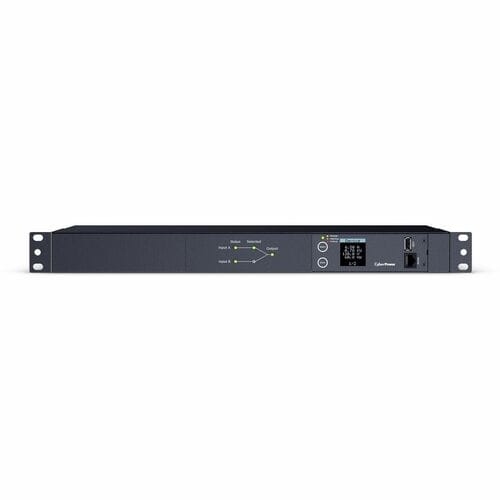

Ensure continued operation of critical devices with the CyberPower PDU24001 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.

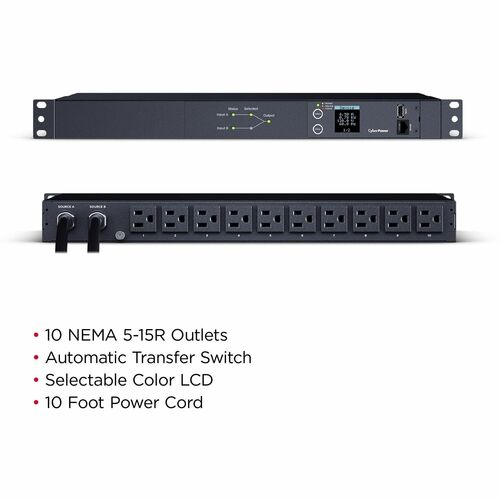

The PDU24001 supports inputs between 100-120V and includes (10) NEMA 5-15R outlets. Dual NEMA 5-15P power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24001 is protected by a three-year limited warranty.
- Phase: Single
- Amps: 15A (Derated to 12A)
- Volts: 100-120V
- Frequency: 50/60Hz
- Plug type: 2 x NEMA 5-15P
- Outlets: 10 x NEMA 5-15R
- Size: 1U Rackmount
- Warranty: 3 year
Spécifications techniques
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management | Protocols:
|
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Maximum Storage Temperature | 131°F (55°C) |
| Miscellaneous | |
| Additional Information |
|
| Application/Usage | Network Device |
| Data Center | |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 240 V AC |
| 200 V AC | |
| Input Current | 15 A |
| Input Voltage Range | 100 V AC - 120 V AC |
| Input Frequency | 60 Hz |
| Output Voltage Range | 100 V AC - 120 V AC |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU24001 |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PDU24001 |
| Product Name | Metered ATS PDU PDU24001 10-Outlets PDU |
| Product Series | Switched ATS PDU |
| Brand Name | CyberPower |
| Physical Characteristics | |
| Weight (Approximate) | 9.59 lb (4350 g) |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Cord Length | 10 ft (3.05 m) |

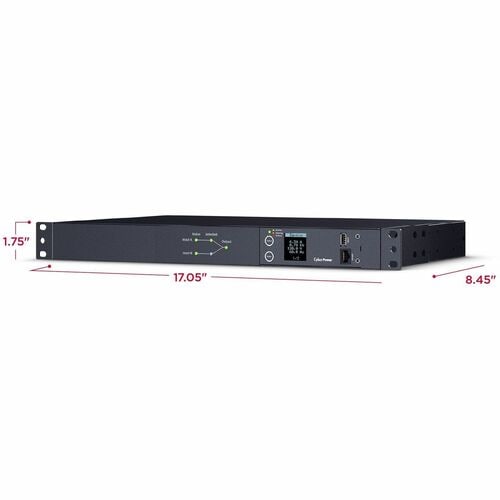

| Height | 1.75" (44.45 mm) |
| Width | 17.05" (433.07 mm) |
| Depth | 8.45" (214.63 mm) |
| Mounting Orientation | Horizontal |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Features | LED Status Indicator |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA 5-15P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15R |
| Design | Modular |
| PDU Type | Metered |
| Locking Receptacles | Cord Retention Tray |
| Receptacle Detail | 10 x NEMA 5-15R |
| Plug/Connector Detail | 2 x NEMA 5-15P |
