À propos du produit

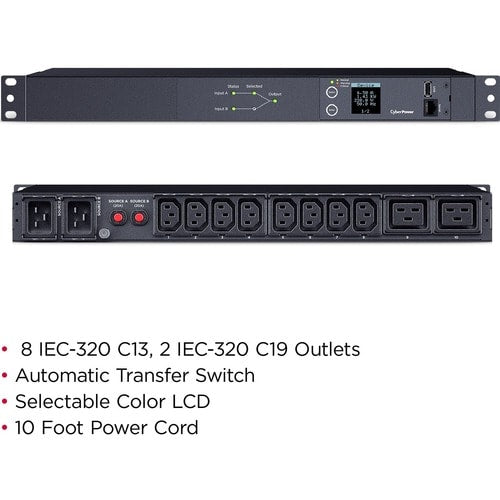

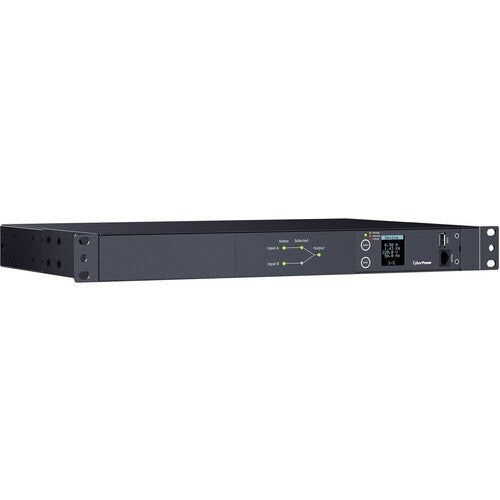

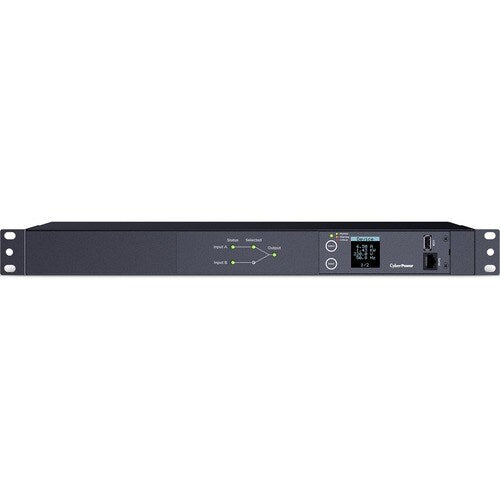

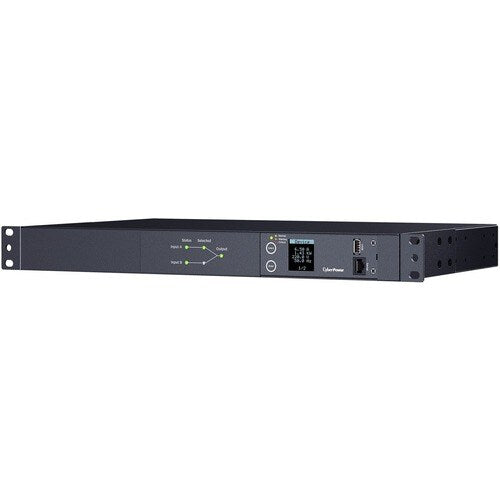

CyberPower PDU24005 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source within 10 ms (Source Failure Detection Time: 2-3 ms. Power Source Transfer Time: 2-7 ms) to ensure continuous operation.
The unit comes with a hot-swappable multifunction readout that displays real-time vitals including current, input voltage, power consumption levels in amps and watts. The digital LCD display is also color configurable, allowing easy maintenance and monitoring of the ATS PDU. Users can change LCD's colors to easily categorize devices between multiple machines in server room and IT environments. The firmware can also be conveniently upgraded via the USB port, ensuring the latest features and updates are available for users.
The product can be connected to a PC through the serial port to perform local control of the ATS PDU.
- Real-time Local Monitoring
- Quick Transfer Time (Total ? 10 ms)
- Digital Real-time Load Display
- Hot-swappable LCD Design
- Firmware Upgrade via USB
- Adjustable Mounting Brackets
- IEC Receptacle Locking
- Dual Inputs
- Industrial-grade Metal Housing
- User Configurable Color LCD
- LED Status Indicator
- User-upgradeable Firmware
- Cord Retention Tray
Spécifications techniques
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Current | 16 A |
| Input Voltage Range | 200 V AC - 240 V AC |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU24005 |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PDU24005 |
| Product Name | ATS PDU24005 10-Outlets PDU |
| Product Series | ATS |
| Brand Name | CyberPower |
| Physical Characteristics | |
| Weight (Approximate) | 7.05 lb (3200 g) |
| Form Factor | Hot-swappable |
| Mount Type | Rack-mountable |
| Rack Height | 1U |

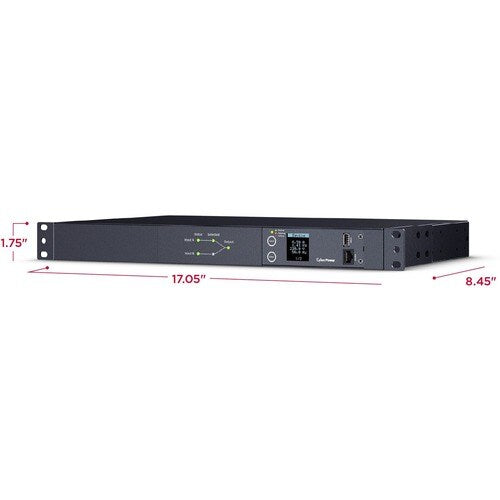

| Height | 1.73" (44 mm) |
| Width | 17.05" (433 mm) |
| Depth | 8.46" (215 mm) |
| Mounting Orientation | Horizontal |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Protection Type | Overload Protection |
| Circuit Breaker | |
| Plug/Connector Type | IEC 60320 C20 |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| PDU Type | Metered Auto Transfer Switch |
| Locking Receptacles | Cord Retention Tray |
| IEC 60320 C13 | |
| IEC 60320 C19 | |

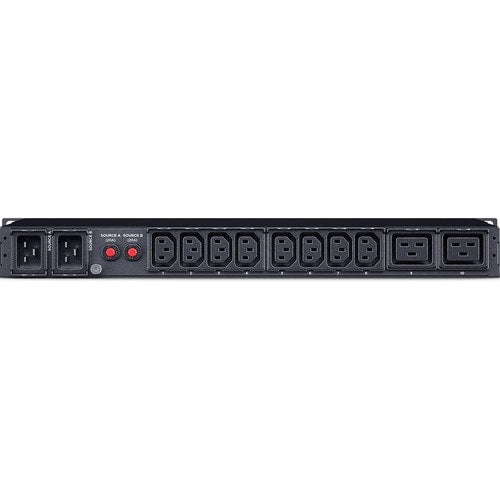

| Receptacle Detail | 8 x IEC 60320 C13 |
| 2 x IEC 60320 C19 | |
| Plug/Connector Detail | 2 x IEC 60320 C20 |
