À propos du produit

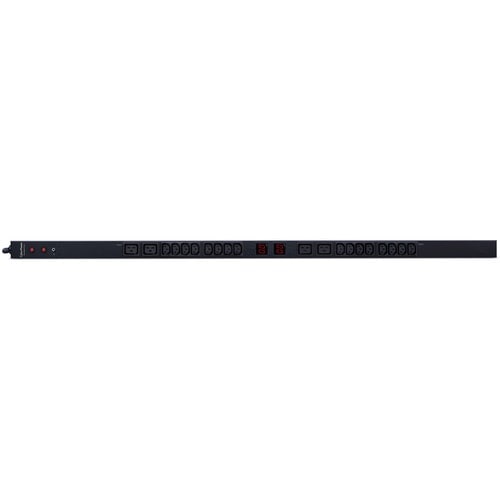

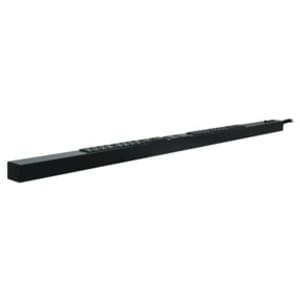

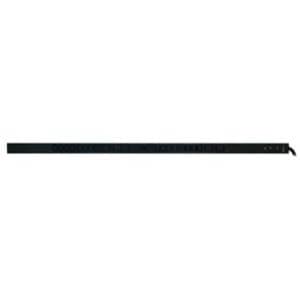

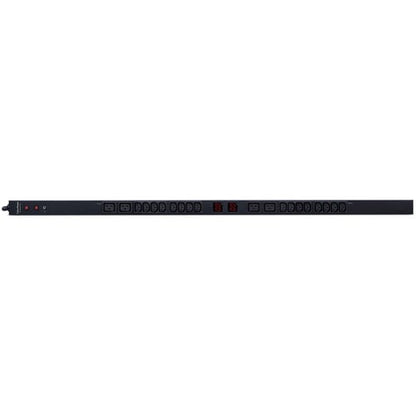

The CyberPower 20-outlet (20 Front) 0U vertical rack mount metered power distribution unit (PDU30MVHVT20F) provides 200/230V 30A output. It distributes power to 20 IEC-320 (4-C19 and 16-C13) receptacles from a single NEMA L6-20P twist lock plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front of two LCDs for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- Metered PDU
- 20 IEC-320 (4-C19 and 16-C13) output receptacles
- 200/230V AC - 50/60Hz - 30-amp electrical capacity with circuit breaker
- 48 inch 0U Vertical Rack Mount - Rugged industrial metal housing
Spécifications techniques
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Energy Star | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 8.89 lb (4032.44 g) |
| Length | 2.25" (57.15 mm) |
| Mount Type | Rack-mountable |
| Height | 48" (1219.20 mm) |
| Width | 1.75" (44.45 mm) |
| Mounting Orientation | Vertical |
| Technical Information | |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| Receptacle Detail | 16 x IEC 60320 C13 |
| 4 x IEC 60320 C19 | |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU30MVHVT20F |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PDU30MVHVT20F |
| Product Name | Metered PDU30MVHVT20F 20-Outlets PDU |
| Product Series | Metered PDU |
| Brand Name | CyberPower |
