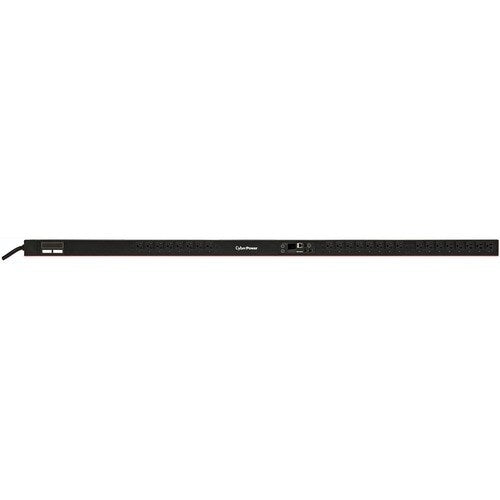

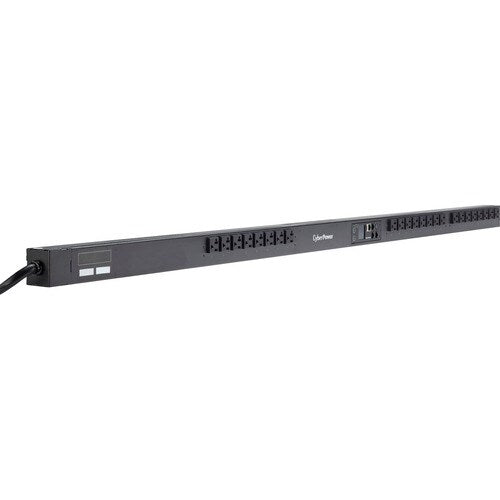

The CyberPower PDU31101, a 24-outlet (front), 0U rackmount monitored power distribution unit (PDU) provides 120V 20A output. It distributes power to 24 NEMA 5-20R receptacles from a single NEMA L5-20P plug with unfiltered electrical pass-through. (May be converted to non-locking NEMA 5-20P plug with included adapter.) Monitor power status over the network by using the CyberPower management console and the RJ45 Ethernet port for network connection. Monitor power status locally by using the LCD.
The PDU31101 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions.
- Automated notifications: E-mail, SMS, Text and SNMP Trap
- Phase: Single
- Amps: 20A (Derated to 16A)
- Volts: 100-120V
- Frequency: 50/60Hz
- Plug type: NEMA (L)5-20P
- Outlets: 24 NEMA 5-20R
- Size: 0U Rackmount
- Warranty: 3 year
Spécifications techniques
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management | Protocols:
|
| Remote Outlet Switching | No |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 100 V AC |
| 120 V AC | |
| Input Current | 20 A |
| Output Voltage Range | 100 V AC - 120 V AC |
| Technical Information | |
| Plug/Connector Type | NEMA L5-20P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-20R |
| PDU Type | Monitored |
| Receptacle Detail | 24 x NEMA 5-20R |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| TAA Compliant | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU31101 |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PDU31101 |
| Product Name | PDU31101 24-Outlets PDU |
| Product Series | Monitored PDU |
| Brand Name | CyberPower |
| Physical Characteristics | |
| Weight (Approximate) | 13.20 lb (5987.42 g) |
| Mount Type | Wall-mountable |
| Rack-mountable | |
| Rack Height | 0U |
| Cord Length | 10 ft (3.05 m) |
| Height | 65.50" (1663.70 mm) |
| Width | 2.20" (55.88 mm) |
| Depth | 1.90" (48.26 mm) |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
