À propos du produit

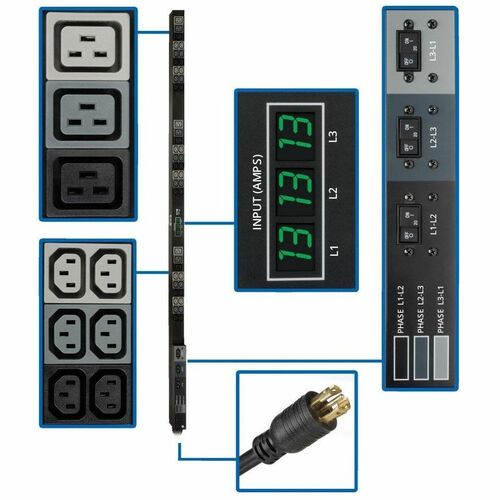

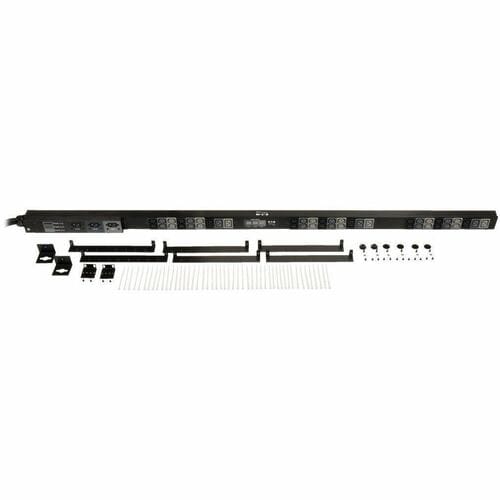

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

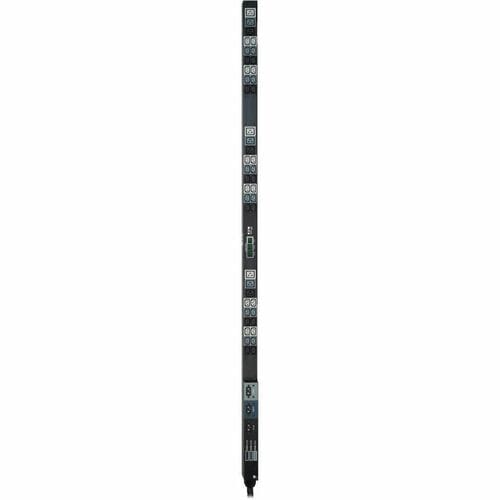

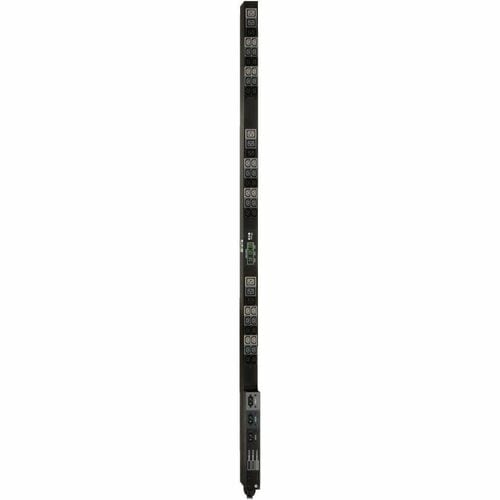

- Metered 8.6kW 3 Phase 208V PDU; 70 in. / 178cm 0U vertical rackmount

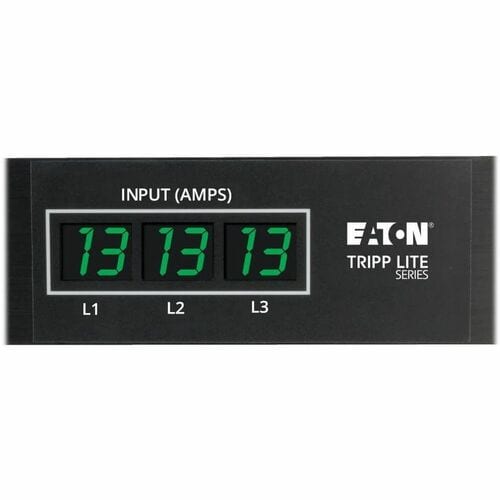

- Reports voltage and load per-phase via set of 3 digital current displays

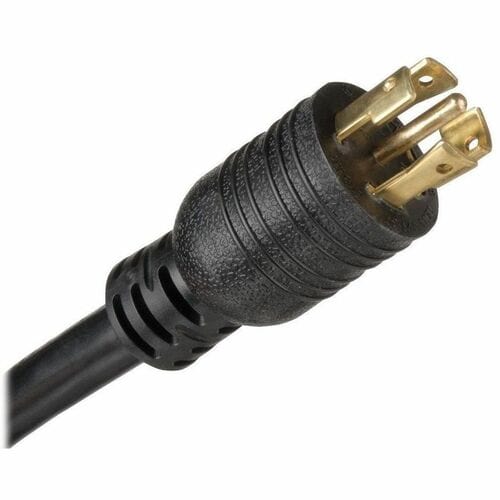

- NEMA L21-30P (3P+N+E) 208V 3 phase input, 6 ft. / 1.8m line cord

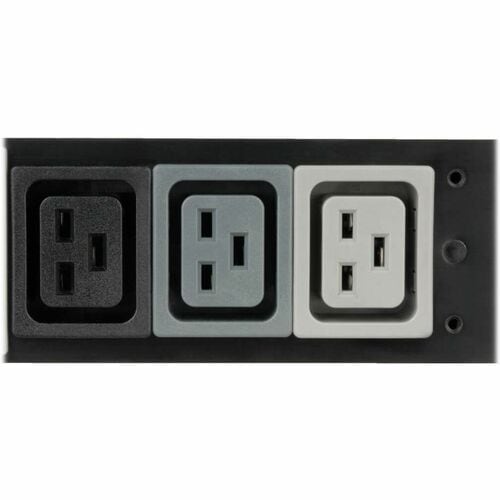

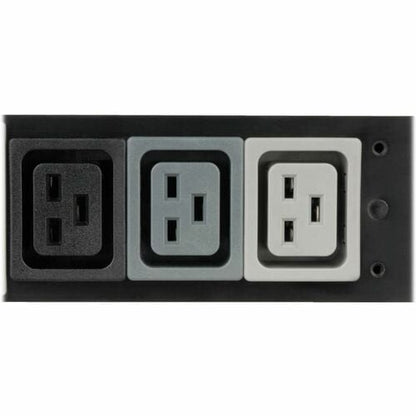

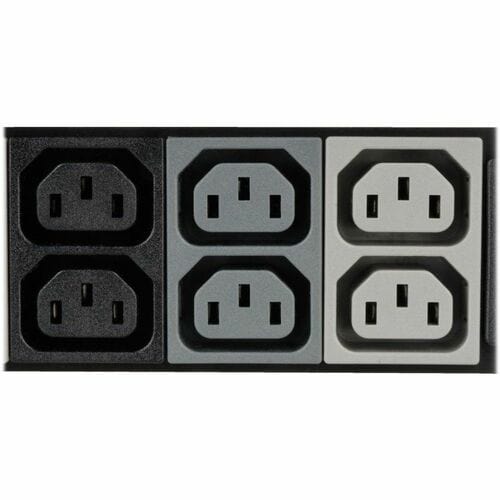

- 45 208V outlets (36 C13, 9 C19) with included plug-lock cord retention sleeves

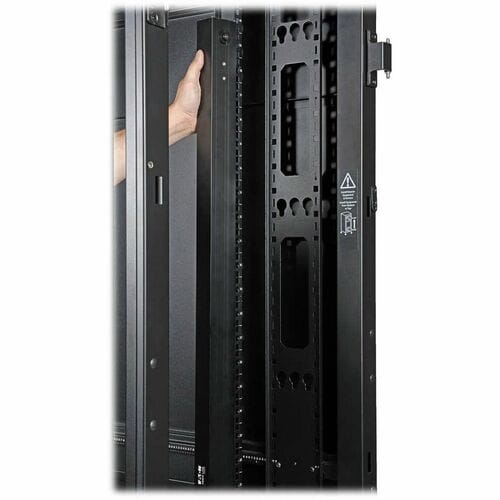

- Toolless button-mount installation, TAA Compliant
Spécifications techniques
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 24 A |
| Power Rating (Watt) | 8.60 kW |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |

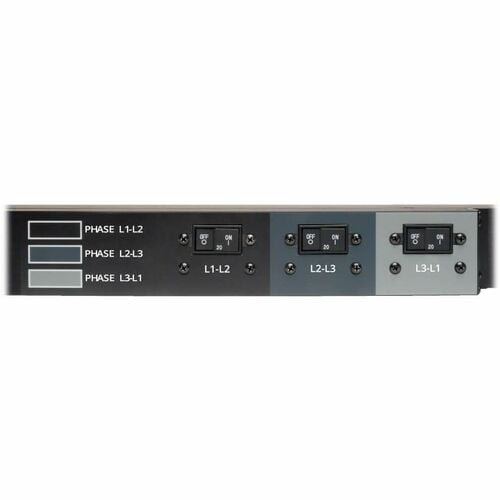

| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA L21-30P |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| Receptacle Detail | 36 x IEC 60320 C13 |
| 9 x IEC 60320 C19 | |
| Physical Characteristics | |
| Weight (Approximate) | 13.50 lb (6123.50 g) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 70" (1778 mm) |
| Width | 2.65" (67.31 mm) |
| Depth | 2.20" (55.88 mm) |
| Mounting Orientation | Vertical |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU3MV6L2130A |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDU3MV6L2130A |
| Product Name | Metered PDU3MV6L2130A 45-Outlets PDU |
| Product Series | Metered |
| Brand Name | Tripp Lite by Eaton |
