À propos du produit
PDU3VN10L2120LV Monitored 3 phase 208V Zero U vertical rack PDU supports 5.7kW total output capacity. Includes 10 ft. / 3m input cord with NEMA L21-20P 20A (3P+N+E) 208V 3 phase input plug and 36 120V outlets arranged in 3 single phase output load banks. Each output loading bank contains 12 NEMA 5-15/20R outlets. Visual meter with scroll button and PowerAlert remote monitoring interface enables real-time current monitoring for each output phase. Supports 0U vertical rackmount installation with included mounting accessories. Toolless button-mount installation supported in compatible racks. Included cord retention brackets keep vital network equipment plugged in and continuously powered.
- Monitored 5.7kW 3 Phase 208V input PDU; 70 in. / 178cm 0U vertical rackmount
- Reports voltage, frequency and load per-phase via built in ethernet interface
- Visual current meter; Toolless button-mount installation

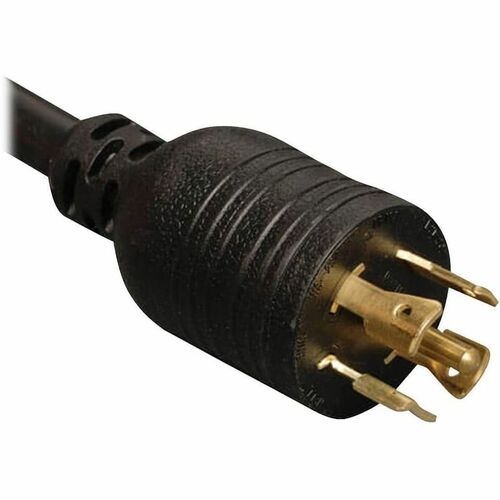

- NEMA L21-20P 20A (3P+N+E) 208V 3 phase input; 10 ft. / 3m line cord
- 36 5-15/20R single phase 120V outlets; Included cord retention brackets
- Temperature, humidity and contact closure monitoring options
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
Spécifications techniques
| Management | |
| Management | Protocols:
|
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 120 V AC |
| Power Rating (Watt) | 5.70 kW |
| Technical Information | |
| Plug/Connector Type | NEMA L21-20P |
| Receptacle Type | NEMA 5-15/20R |
| PDU Type | Monitored |
| Receptacle Detail | 36 x NEMA 5-15/20R |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 10.10 lb (4581.28 g) |
| Mount Type | Rack-mountable |
| Height | 70" (1778 mm) |
| Width | 2.19" (55.63 mm) |
| Depth | 3.26" (82.80 mm) |
| Mounting Orientation | Vertical |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU3VN10L2120LV |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDU3VN10L2120LV |
| Product Name | Monitored PDU3VN10L2120LV 36-Outlets 5.7kW PDU |
| Product Series | Monitored |
| Brand Name | Tripp Lite by Eaton |
