À propos du produit
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

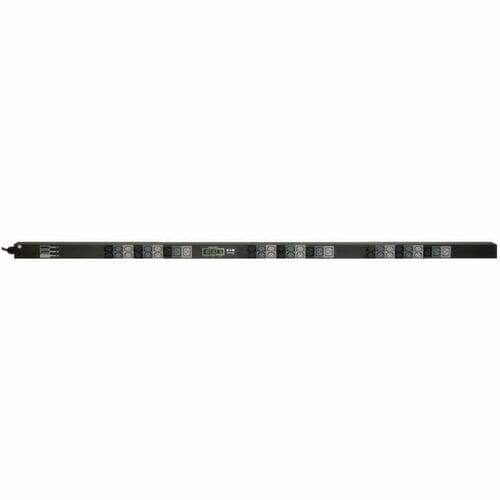

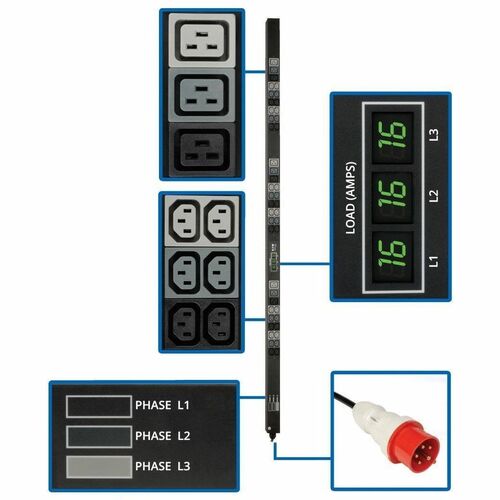

- Metered 11.5kW 3 Phase 415/240V, 400/230V, 380/220V input / output PDU

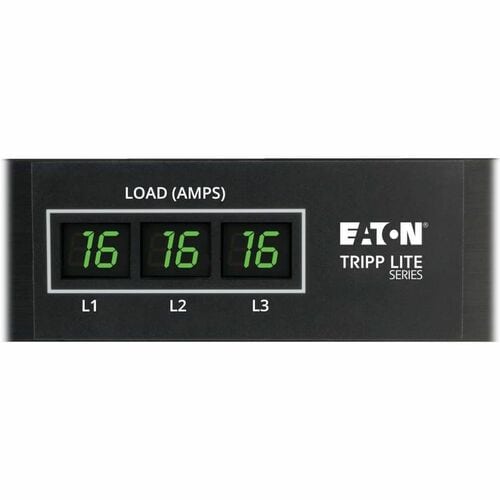

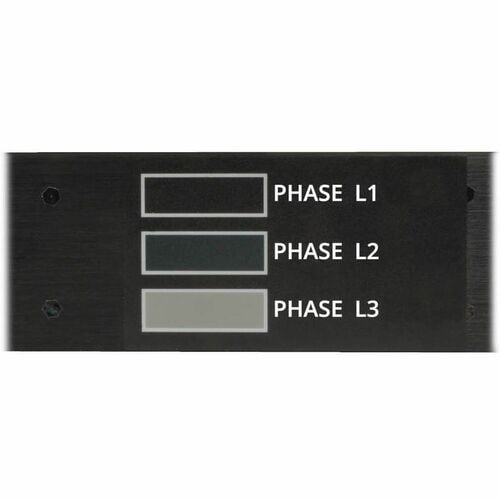

- Set of 3 digital meters reports output load level per phase in amps

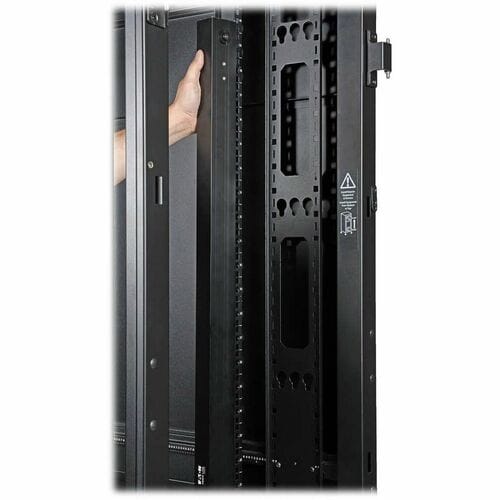

- 70in / 1778mm 0U vertical format, toolless button-mount installation

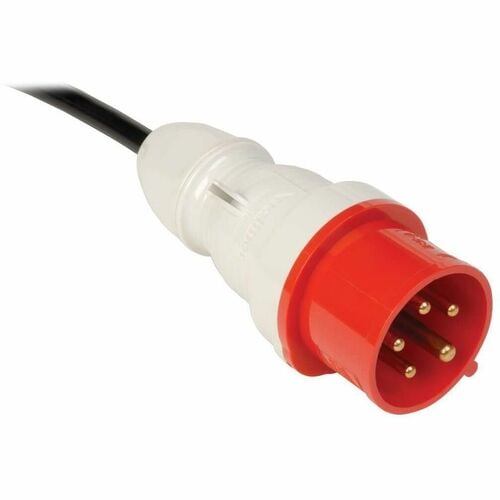

- IEC-309 Red 16/20A (3P+N+E) 3 phase input; 6ft 1.8m line cord

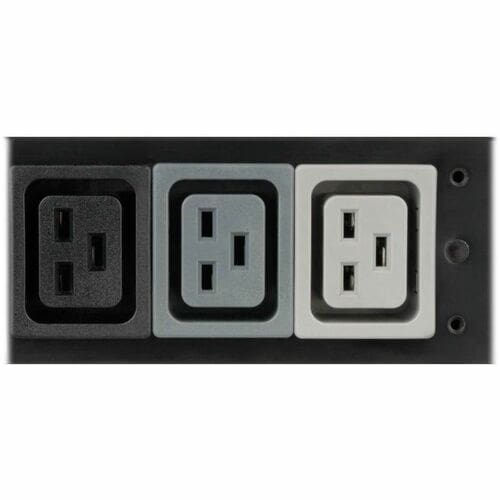

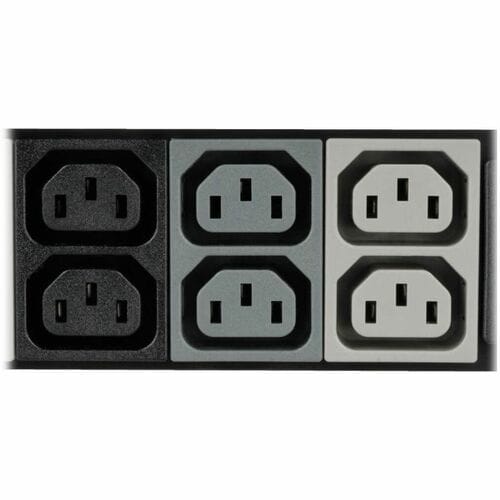

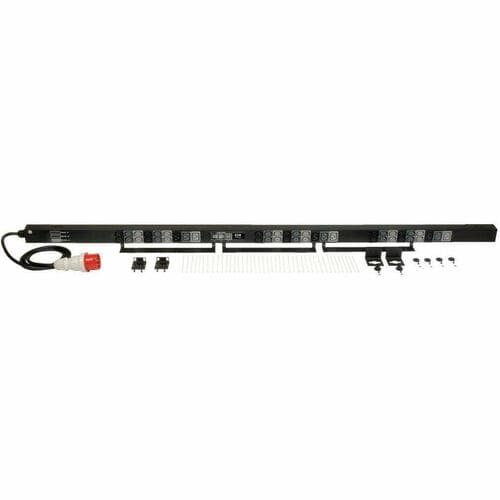

- 36 C13 & 9 C19 single phase outlets; Included cord retention brackets
Spécifications techniques
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Output Voltage | 240 V AC |
| 230 V AC | |
| 220 V AC | |
| Input Voltage Range | 380 V AC - 415 V AC |
| Power Rating (VA) | 11.50 kVA |
| Technical Information | |
| Plug/Connector Type | IEC 60309 16A |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| Receptacle Detail | 36 x IEC 60320 C13 |
| 9 x IEC 60320 C19 | |
| Physical Characteristics | |
| Weight (Approximate) | 9 lb (4082.33 g) |
| Mount Type | Rack-mountable |
| Height | 70" (1778 mm) |
| Width | 2.20" (55.88 mm) |
| Depth | 1.93" (49.02 mm) |
| Mounting Orientation | Vertical |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU3XMV6G20 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDU3XMV6G20 |
| Product Name | Metered PDU3XMV6G20 45-Outlets 11.5kVA PDU |
| Product Series | Metered |
| Brand Name | Tripp Lite by Eaton |
