À propos du produit

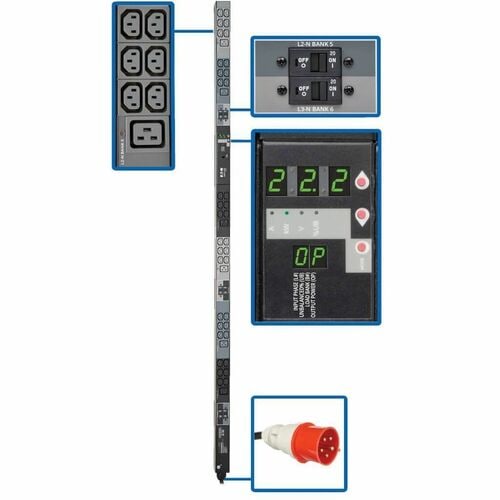

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of output current, output kW and input voltage via built-in multifunction digital display. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- Metered 22.2kW 3 Phase 380/400V input 220/230V output PDU

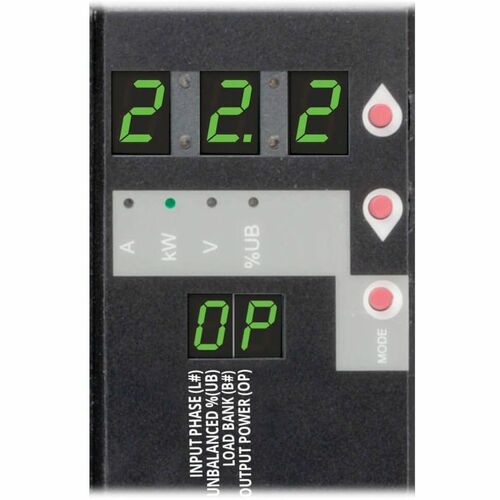

- Visual meter reports output amps per bank, total kW and input voltage

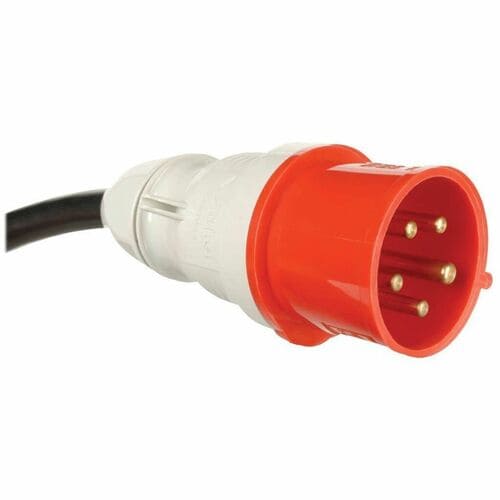

- IEC309 32A Red (3P+N+E) 3 phase 380/400V input, 6 ft. / 1.8m line cord

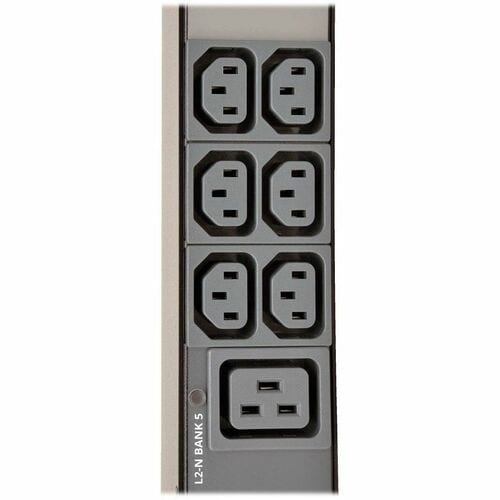

- 42 220/230V outlets (36 C13, 6 C19) with included plug-lock cord retention sleeves

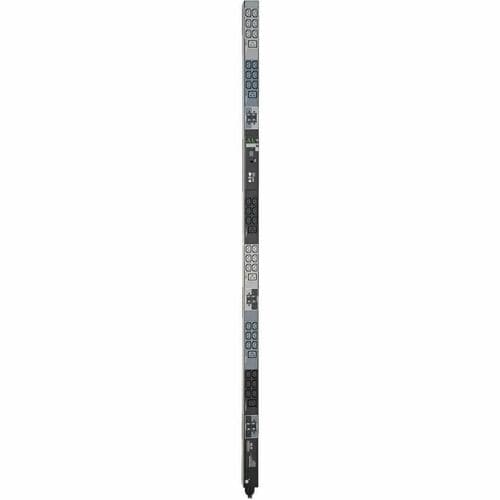

- 0U Vertical Rackmount with Toolless button-mount installation
- TAA Compliant
Spécifications techniques
| Miscellaneous | |

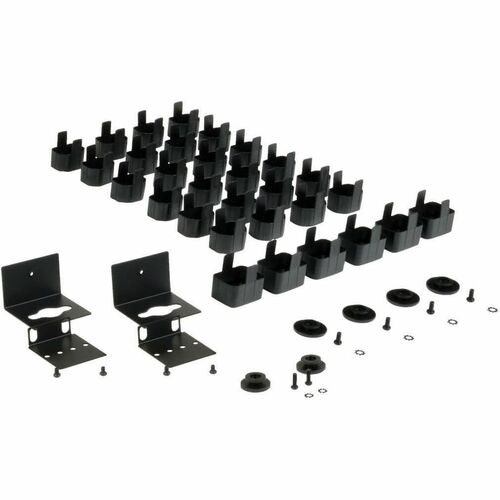

| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |
| Protection Type | Overload Protection |
| Plug/Connector Type | IEC 60309 32A Red 3P+N+E |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| Receptacle Detail | 36 x IEC 60320 C13 |
| 6 x IEC 60320 C19 | |
| Physical Characteristics | |
| Weight (Approximate) | 14.29 lb (6481.83 g) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 70" (1778 mm) |
| Width | 2.17" (55.12 mm) |
| Depth | 2.49" (63.25 mm) |
| Mounting Orientation | Vertical |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU3XMV6G32 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDU3XMV6G32 |
| Product Name | Metered PDU3XMV6G32 42 Outlets PDU |
| Product Line | Metered |
| Brand Name | Tripp Lite by Eaton |
| Power Description | |

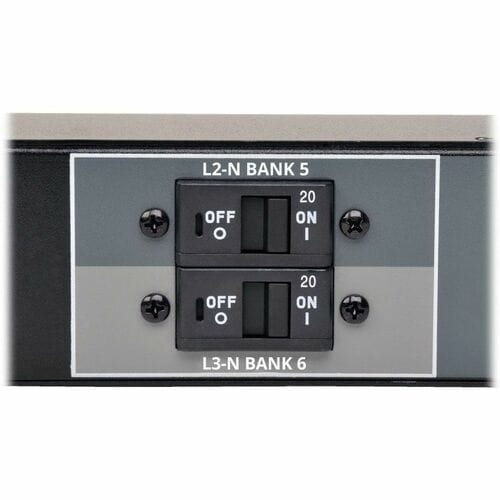

| Circuit Breaker | Yes |
| Output Voltage | 240 V AC |
| 220 V AC | |
| 200 V AC | |
| 230 V AC | |
| Input Current | 32 A |
| Input Voltage Range | 380 V AC - 400 V AC |
| Power Rating (Watt) | 23 kW |
