3-Phase 360-415V input / 208V-240V output PDU Distributes Network-Grade Power to Multiple Loads

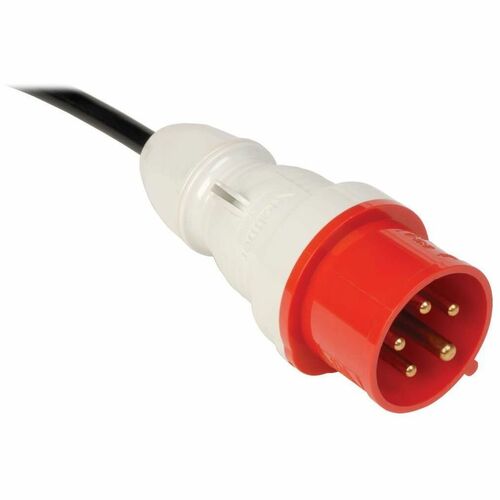

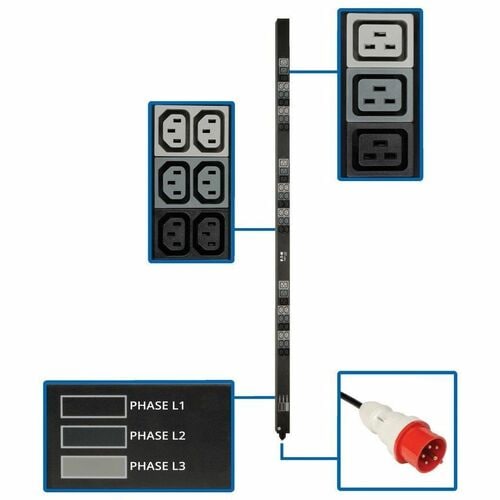

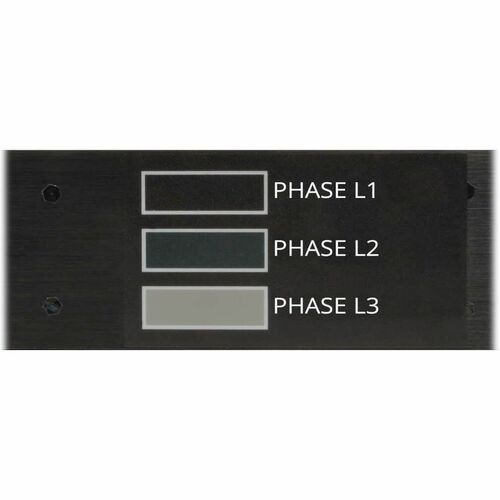

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDU3XV6G20 features 36 C13 and six C19 (208-240V) outlets in three single-phase output load banks for connecting equipment. A six-foot (1.8-meter) cord with IEC 309 16/20A Red 360-415V (3P+N+E) 3-phase input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.

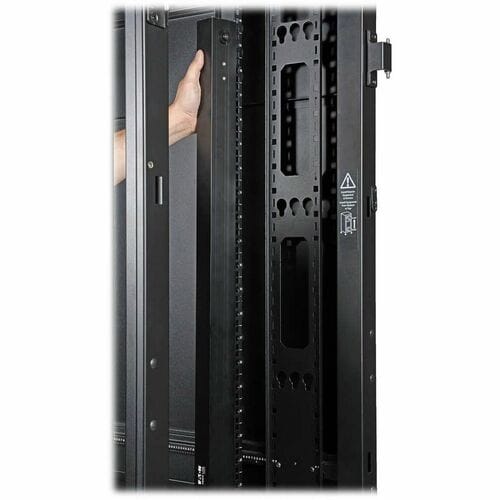

Easy to Install Vertically in an EIA-Standard 19 in. Rack

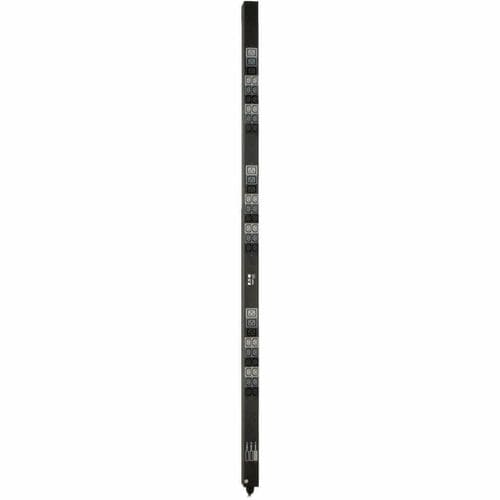

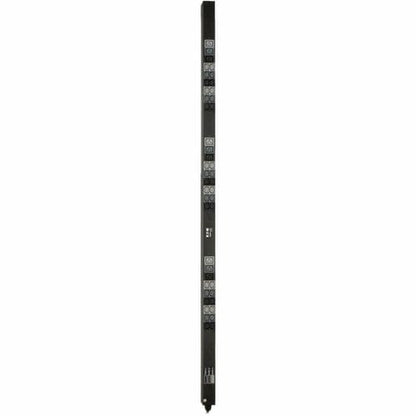

The 70-inch 0U PDU's all-metal housing mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. Cable retention brackets keep power cords organized and your rack free of clutter. The PDU's switchless design helps prevent an accidental shutdown, which could lead to costly downtime.
TAA-Compliant for GSA Schedule Purchases
The PDU3XV6G20 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- PDU allows power to be more efficiently distributed and controlled
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
Spécifications techniques
| Miscellaneous | |

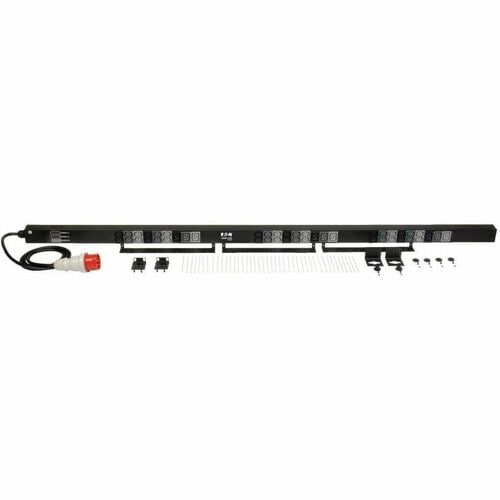

| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU3XV6G20 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDU3XV6G20 |
| Product Name | PDU3XV6G20 45-Outlets PDU |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Weight (Approximate) | 9 lb (4082.33 g) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 70" (1778 mm) |
| Width | 2.20" (55.88 mm) |
| Depth | 1.93" (49.02 mm) |
| Mounting Orientation | Vertical/Toolless |
| Power Description | |
| Output Voltage | 230 V AC |
| 240 V AC | |
| 208 V AC | |
| 220 V AC | |
| Input Current | 16 A |
| Input Voltage Range | 360 V AC - 415 V AC |
| Power Rating (Watt) | 11.50 kW |
| Technical Information | |
| Protection Type | Accidental Power Shutdown |
| Plug/Connector Type | IEC 60309 16/20A Red (3P+N+E) |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Basic |
| Locking Receptacles | Cord Retention Bracket |

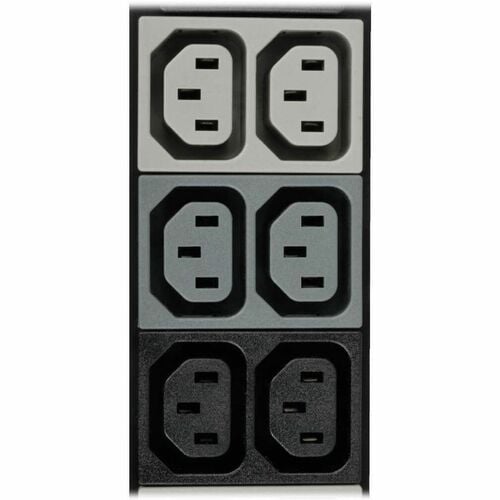

| Receptacle Detail | 36 x IEC 60320 C13 |

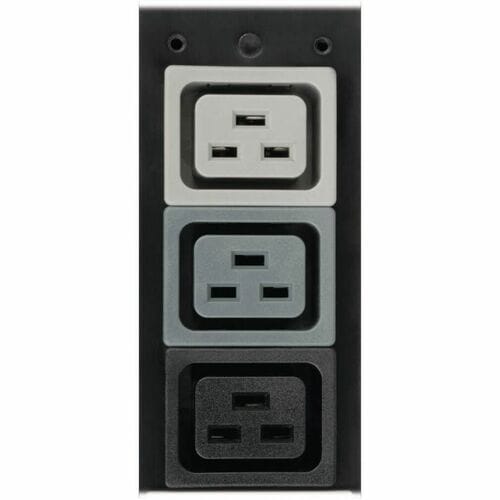

| 9 x IEC 60320 C19 |
