À propos du produit

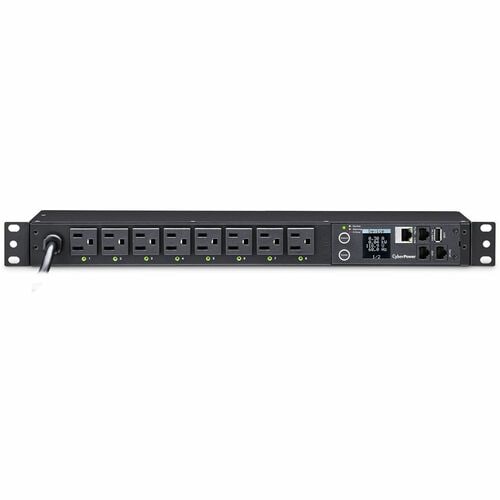

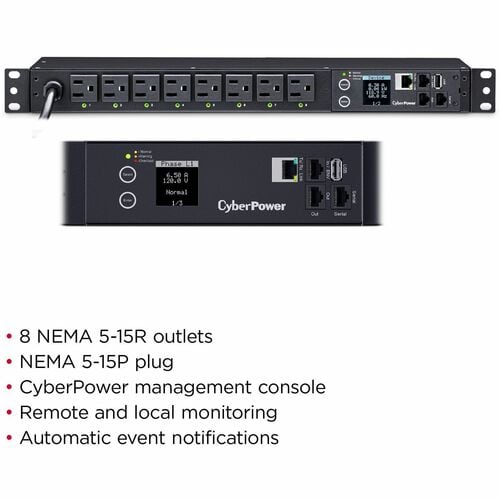

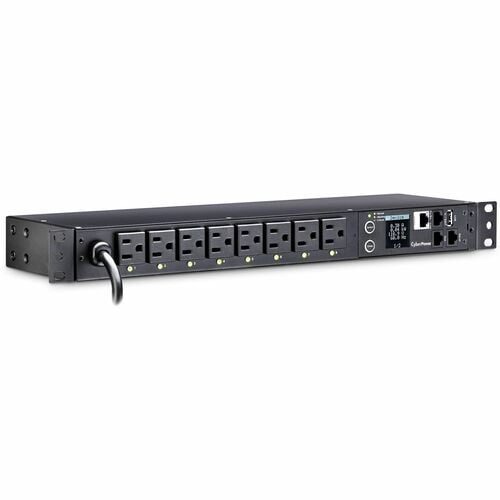

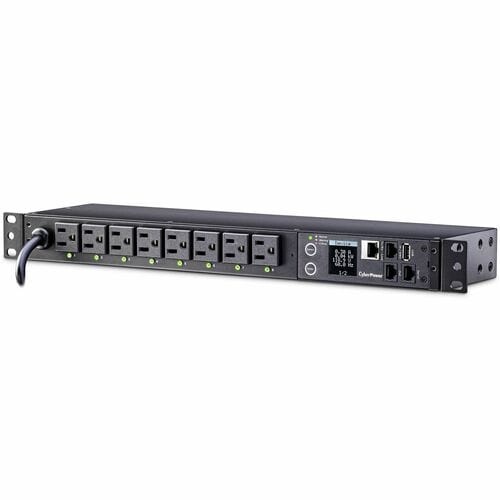

The CyberPower PDU41001, an 8-outlet (front), 1U rackmount switched power distribution unit (PDU), provides 120V 15A output. It distributes power to 8 NEMA 5-15R receptacles from a single NEMA 5-15 plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.
- Automated notifications: Email, SMS Text, and SNMP Trap
- Phase: Single
- Amps: 15A (Derated to 12A)
- Volts: 100 - 120 V
- Frequency: 50Hz/60Hz
- Plug type: NEMA 5-15P
- Outlets: 8 NEMA 5-15R
- Size: 1U Rackmount
- Warranty: 3 year
Spécifications techniques
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management | Protocols:
|
| Remote Outlet Switching | Yes |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU41001 |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PDU41001 |
| Product Name | Switched PDU41001 8 Outlets PDU |
| Product Series | Switched PDU |
| Brand Name | CyberPower |
| Miscellaneous | |
| Application/Usage | Server |
| Network Device | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Star | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| Output Voltage | 100 V AC |
| 120 V AC | |
| Input Current | 15 A |
| Input Voltage Range | 100 V AC - 120 V AC |
| Input Frequency | 60 Hz |
| Output Voltage Range | 100 V AC - 120 V AC |
| Technical Information | |
| Features | LED Status Indicator |
| LCD Display | |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA 5-15P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15R |
| PDU Type | Switched |
| Locking Receptacles | Cord Retention Tray |
| Receptacle Detail | 8 x NEMA 5-15R |
| Physical Characteristics | |
| Weight (Approximate) | 5.70 lb (2585.48 g) |
| Form Factor | Horizontal/Vertical |
| Mount Type | Wall-mountable |
| Rack-mountable | |
| Rack Height | 1U |
| Cord Length | 12 ft (3.66 m) |

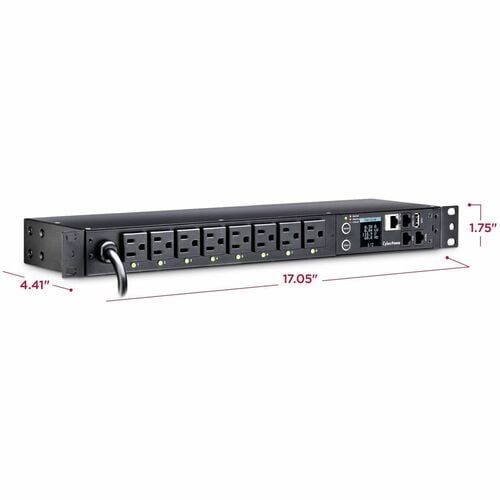

| Height | 1.75" (44.45 mm) |
| Width | 4.41" (112.01 mm) |
| Depth | 17.05" (433.07 mm) |
| Mounting Orientation | Horizontal |
| Product Color | Black |
| Color Family | Black |
