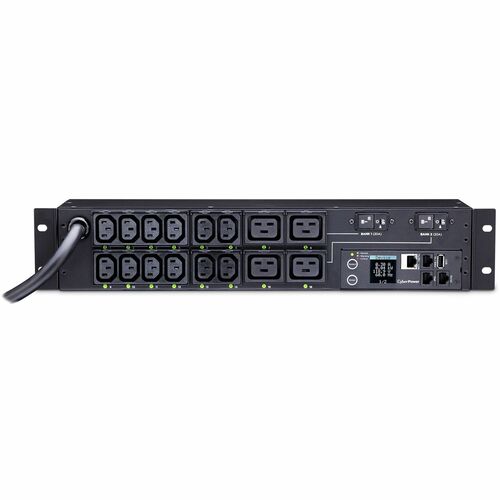

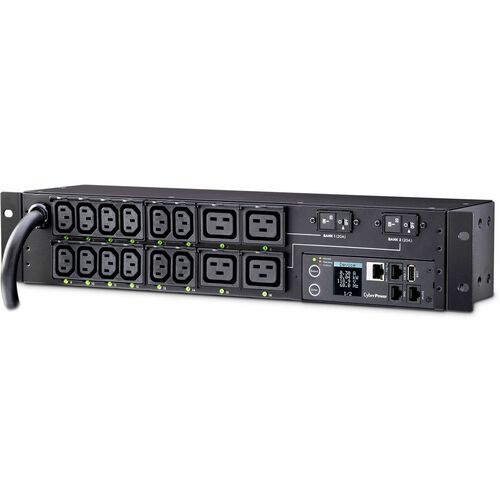

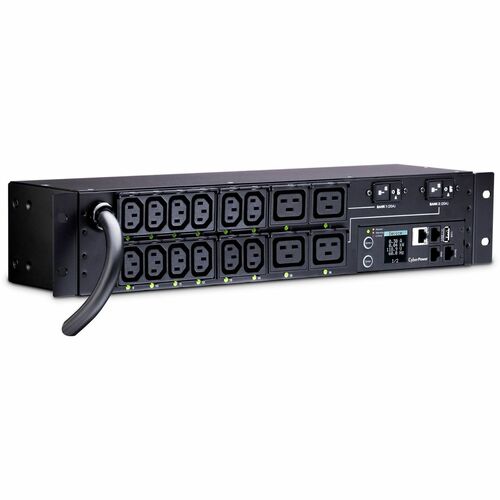

The CyberPower PDU41008, a 16-outlet (front), 2U rackmount switched power distribution unit (PDU), provides 200-240V 30A output. It distributes power to twelve (12) IEC C13 receptacles and four (4) IEC C19 receptacles from a single NEMA L6-30P plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.
- Switched PDU: SNMP Network Interface and Switchable Outlets
- Automated notifications: E-mail, SMS, Text and SNMP Trap
- Phase: Single
- Amps: 30A (Derated to 24A)
- Volts: 200 - 240 V
- Frequency: 50Hz/60Hz
- Plug type: NEMA L6-30P
- Outlets: 12 IEC-320 C13, 4 IEC-320 C19
- Outlet location: 16 Front
- Size: 2U Rackmount
- Cord Length (ft): 12
- Warranty: Three-Year
Spécifications techniques
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management | Protocols:
|
| Remote Outlet Switching | Yes |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 200 V AC |
| 240 V AC | |
| Input Current | 30 A |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Frequency | 60 Hz |
| Output Voltage Range | 200 V AC - 240 V AC |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU41008 |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PDU41008 |
| Product Name | Switched PDU41003 16 Outlets PDU |
| Product Series | Switched PDU |
| Brand Name | CyberPower |
| Miscellaneous | |
| Application/Usage | Network Device |
| Data Center | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Star | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |
| Features | LED Status Indicator |
| LCD Display | |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA L6-30P |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| PDU Type | Switched |
| Locking Receptacles | Cord Retention Tray |
| Receptacle Detail | 12 x IEC 60320 C13 |
| 4 x IEC 60320 C19 | |
| Physical Characteristics | |
| Weight (Approximate) | 9.90 lb (4490 g) |
| Form Factor | Horizontal/Vertical |
| Mount Type | Wall-mountable |
| Rack-mountable | |
| Rack Height | 2U |
| Cord Length | 12 ft (3.66 m) |
| Height | 3.50" (88.90 mm) |
| Width | 17.05" (433.07 mm) |
| Depth | 4.41" (112.01 mm) |
| Mounting Orientation | Horizontal |
| Product Color | Black |
| Color Family | Black |
