À propos du produit

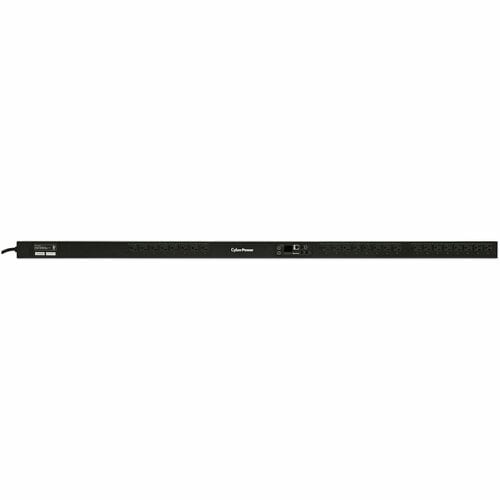

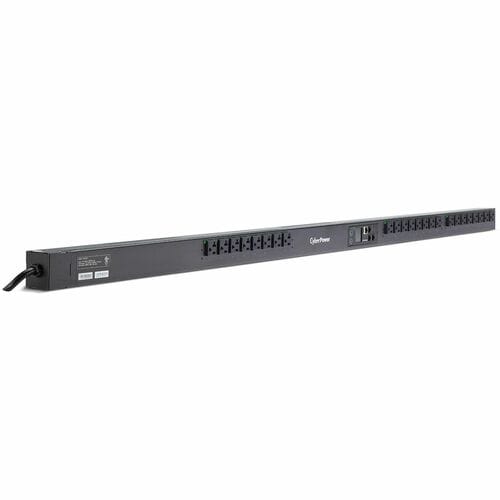

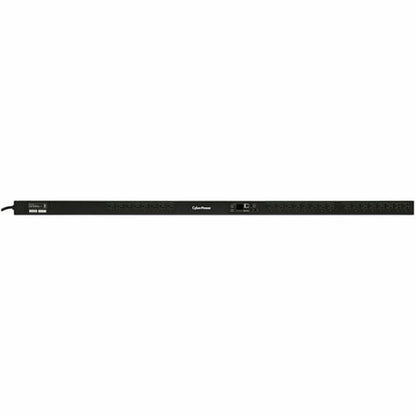

The CyberPower PDU41101 is a 0U rackmount switched power distribution unit or PDU that has 24 outlets and provides 120V 20A output. This PDU distributes power to 24 NEMA 5-20R receptacles from a single NEMA (L)5-20P plug with unfiltered electrical pass-through.
Using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, the user can manage the switched outlet receptacles individually or collectively over the network. In addition, the user can manage the switched outlet receptacles locally by using the LCD controls. Outlets can be turned on, turned off, or cycled on demand. The user can also schedule outlets to address a number of needs: remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads.
The PDU41101 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
- With PDUs decisions for load balancing and minimizing extra cost can be managed
- With switched PDU, remotely monitor, connect or disconnect data center loads
Spécifications techniques
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management | Protocols:
|
| Remote Outlet Switching | Yes |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 20 A |
| Input Voltage Range | 100 V AC - 120 V AC |
| Output Voltage Range | 100 V AC - 120 V AC |
| Technical Information | |
| Features | LCD Display |
| Plug/Connector Type | NEMA L5-20P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-20R |
| PDU Type | Switched |
| Receptacle Detail | 24 x NEMA 5-20R |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU41101 |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PDU41101 |
| Product Name | Switched PDU41101 24 Outlets PDU |
| Product Series | Switched PDU |
| Brand Name | CyberPower |
| Miscellaneous | |
| Application/Usage | Data Center |
| Network Device | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Star | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 15.43 lb (6998.93 g) |
| Length | 66.55" (1690.37 mm) |
| Mount Type | Rack-mountable |
| Wall-mountable | |
| Rack Height | 0U |
| Cord Length | 10 ft (3.05 m) |
| Height | 2.20" (55.88 mm) |
| Width | 1.88" (47.75 mm) |
| Mounting Orientation | Vertical |
