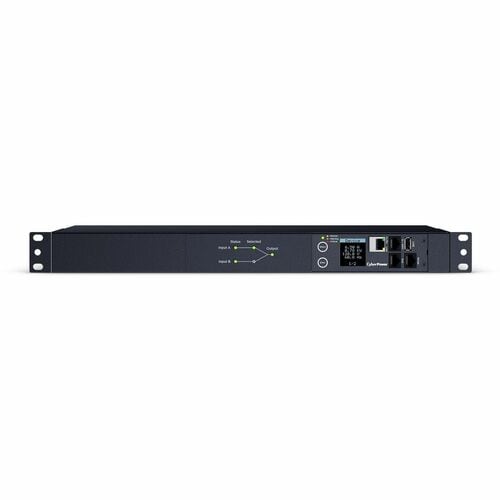

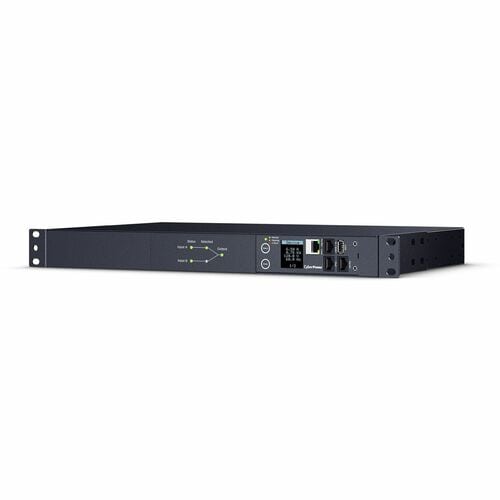

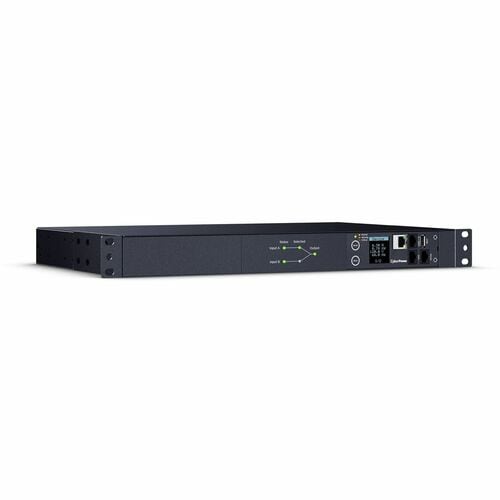

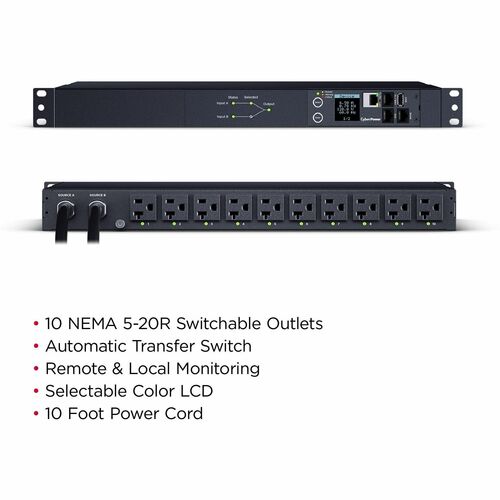

Ensure continued operation of critical devices with the CyberPower PDU44002 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.
The PDU44002 supports inputs between 100-120V and includes (10) NEMA 5-20R outlets. Dual NEMA L5-20P power cords (L5-20P to non-locking 5-20P adpaters included) are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44002 is protected by a three-year limited warranty.
- Automated notifications: Email, SMS Text, and SNMP Trap
- Phase: Single
- Amps: 20A (Derated to 16A)
- Volts: 100-120V
- Frequency: 50/60Hz
- Plug type: 2 x NEMA L5-20P (L5-20P to 5-20P adapter included)

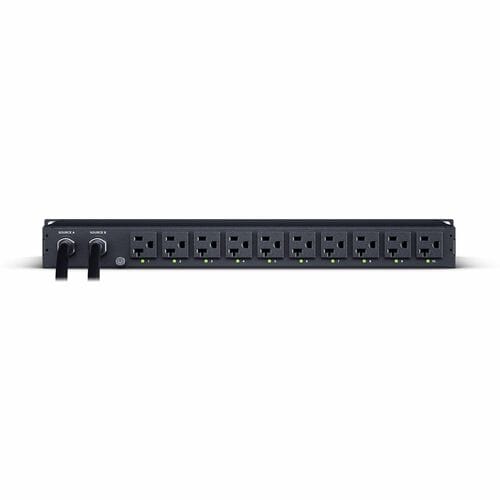

- Outlets: 10 x NEMA 5-20R
- Size: 1U Rackmount
- Warranty: 3 year
Spécifications techniques
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management | Protocols:
|
| Remote Outlet Switching | Yes |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Maximum Storage Temperature | 131°F (55°C) |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 100 V AC |
| 120 V AC | |
| Input Current | 20 A |
| Input Voltage Range | 100 V AC - 120 V AC |
| Input Frequency | 60 Hz |
| Output Voltage Range | 100 V AC - 120 V AC |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU44002 |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PDU44002 |
| Product Name | Switched ATS PDU PDU44002 10-Outlets PDU |
| Product Series | Switched ATS PDU |
| Brand Name | CyberPower |
| Miscellaneous | |
| Additional Information |
|
| Application/Usage | Data Center |
| Network Device | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |
| Features | LED Status Indicator |
| Plug/Connector Type | NEMA L5-20P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-20R |
| Design | Modular |
| PDU Type | Switched |
| Locking Receptacles | Cord Retention Tray |
| Receptacle Detail | 10 x NEMA 5-20R |
| Plug/Connector Detail | 2 x NEMA L5-20P |
| Physical Characteristics | |
| Weight (Approximate) | 11.31 lb (5130 g) |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Cord Length | 10 ft (3.05 m) |

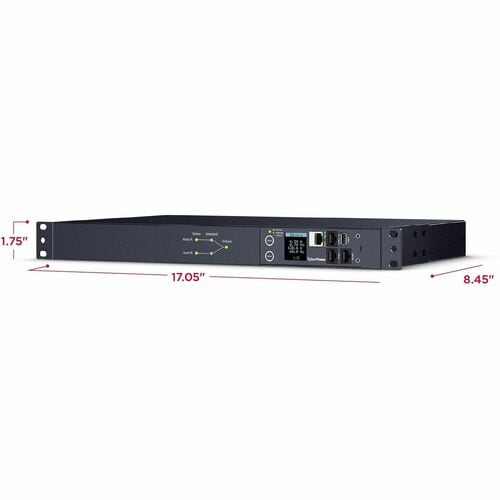

| Height | 1.75" (44.45 mm) |
| Width | 17.05" (433.07 mm) |
| Depth | 8.45" (214.63 mm) |
| Mounting Orientation | Horizontal |
| Product Color | Black |
| Color Family | Black |
