À propos du produit

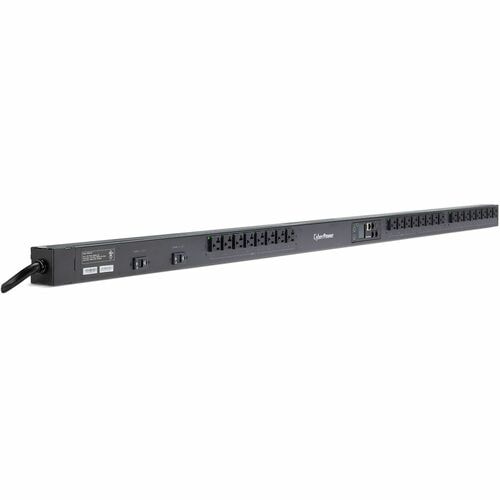

Streamline capacity planning and power management with the CyberPower PDU81102 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling and more.
The PDU81102 supports inputs between 100-120V and includes 24 NEMA 5-20R outlets. Other features include a rack mount design (0U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81102 is protected by a three-year limited warranty.
Spécifications techniques
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management | Protocols:
|
| Remote Outlet Switching | Yes |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU81102 |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PDU81102 |
| Product Name | PDU81102 24-Outlet PDU |
| Product Series | Switched Metered-by-Outlet PDU |
| Brand Name | CyberPower |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| 100 V AC | |
| Input Current | 30 A |
| Input Voltage Range | 100 V AC - 120 V AC |
| Input Frequency | 60 Hz |
| Output Voltage Range | 100 V AC - 120 V AC |
| Technical Information | |
| Features | LCD Display |
| Protection Type | Overload Protection |
| Accidental Power Shutdown | |
| Plug/Connector Type | NEMA L5-30P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-20R |
| PDU Type | Switched with Metered-by-Outlet |
| Receptacle Detail | 24 x NEMA 5-20R |
| Miscellaneous | |
| Application/Usage | Server |
| Data Center | |
| Network Device | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Star | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 21.38 lb (9697.80 g) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Cord Length | 10 ft (3.05 m) |
| Height | 65.60" (1666.24 mm) |
| Width | 2.20" (55.88 mm) |
| Depth | 1.90" (48.26 mm) |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
