À propos du produit

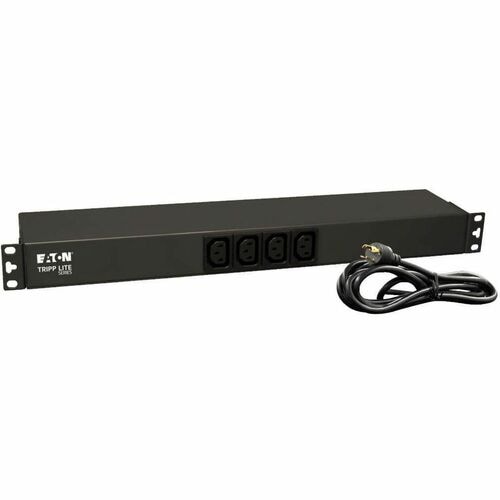

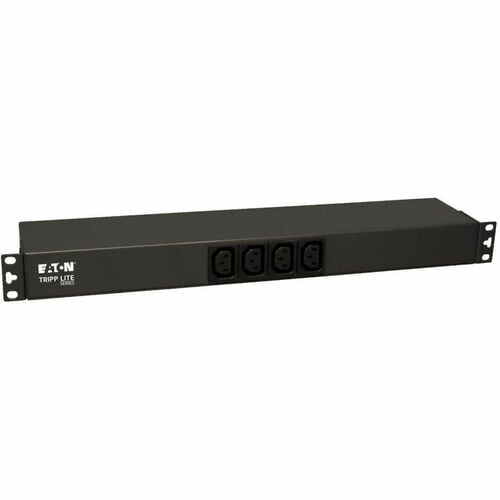

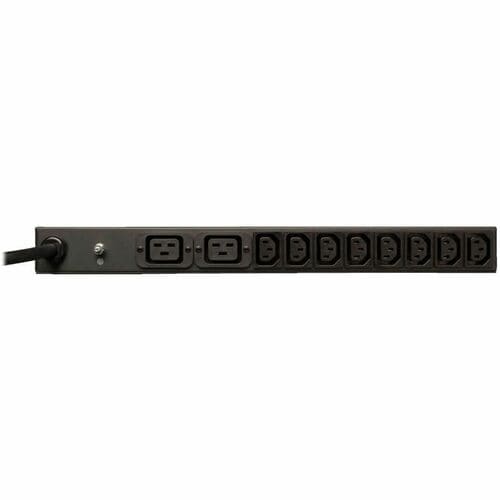

Tripp Lite's PDUH20HVL6 Basic PDU / power distribution unit offers 20A 208/240V power distribution in rack enclosures, network closets and datacenter applications. Detachable mounting flanges are configurable for 1U horizontal and 0U vertical rackmount installation with additional support for secure wallmount and under-counter placement. Attached 15 ft. / 4.5m line cord with L6-20P input plug. Includes 4 front-facing and 8 rear-facing C13 outlets (12 total), plus 2 rear-facing C19 outlets. Ideal for power distribution in rack enclosures, network closets and a variety of other application types. Includes back panel grounding lug, reversible housing and rugged all-metal case design.
- Basic single phase 20A 208/240V PDU
- 1U horizontal rackmount installation
- L6-20P input; 15 ft. / 4.5m line cord
- 2 C19 and 12 C13 outlets
Spécifications techniques
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Input Voltage Range | 208 V AC - 240 V AC |
| Technical Information | |
| Plug/Connector Type | NEMA L6-20P |
| PDU Type | Basic |
| Receptacle Detail | 14 |
| Miscellaneous | |
| Additional Information | Output Receptacles:
|
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 3.75 lb (1700.97 g) |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.25" (438.15 mm) |
| Depth | 3.75" (95.25 mm) |
| Mounting Orientation | Horizontal/Vertical |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDUH20HVL6 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDUH20HVL6 |
| Product Name | Basic PDUH20HVL6 14-Outlets PDU |
| Product Line | Basic |
| Brand Name | Tripp Lite by Eaton |
