À propos du produit

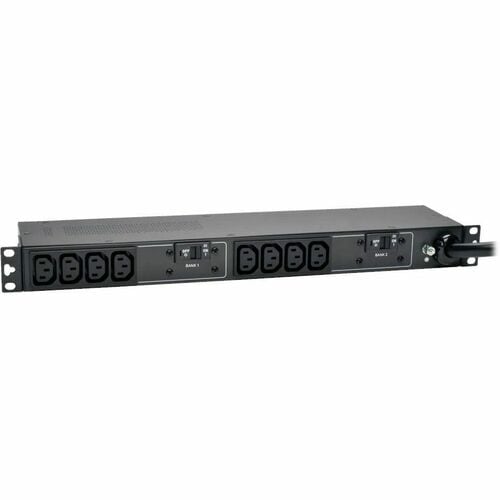

Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- Basic single phase 30A 208/240V PDU
- 1U horizontal rackmount installation

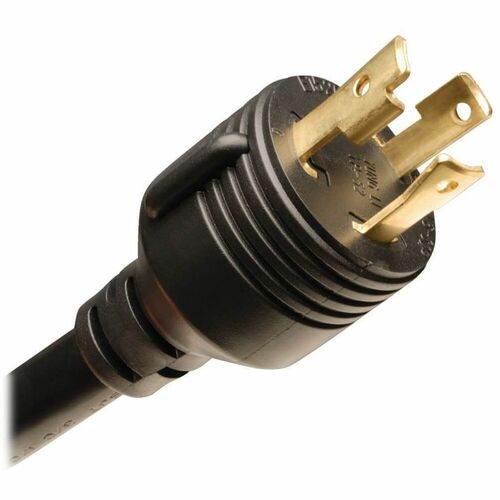

- NEMA L6-30P input; 12 ft. / 3.6m line cord

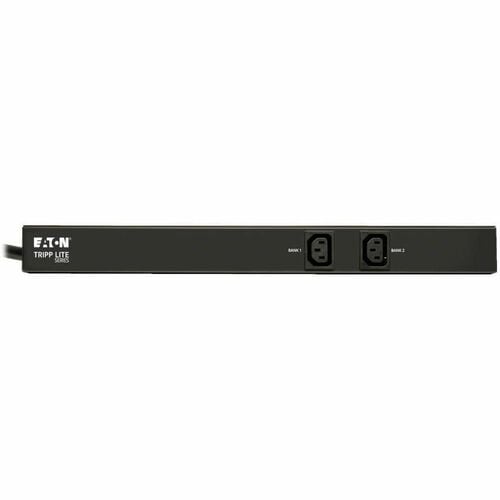

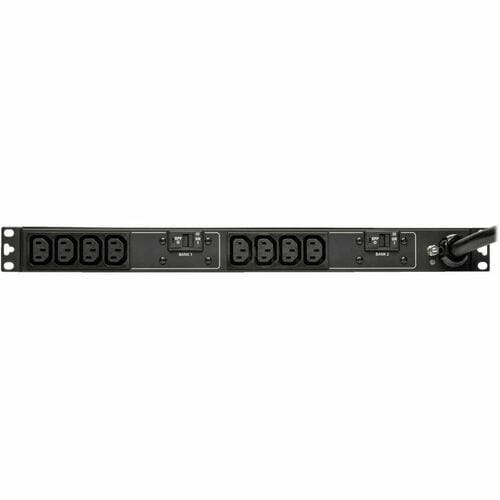

- 10 C13 outlets (8 front / 2 rear)
Spécifications techniques
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Input Current | 30 A |
| Power Rating (Watt) | 5.80 kW |
| Technical Information | |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C13 |
| PDU Type | Basic |
| Receptacle Detail | 10 x IEC 60320 C13 |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDUH30HV |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDUH30HV |
| Product Name | Basic PDUH30HV 10-Outlets PDU |
| Product Line | Basic |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Weight (Approximate) | 7.80 lb (3538.02 g) |
| Mount Type | Rack-mountable |
| Wall-mountable | |
| Rack Height | 1U |
| Placement | Under-counter |
| Cord Length | 12 ft (3.66 m) |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 5.20" (132.08 mm) |
| Mounting Orientation | Horizontal |
