Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- Metered single phase 15A 120V PDU

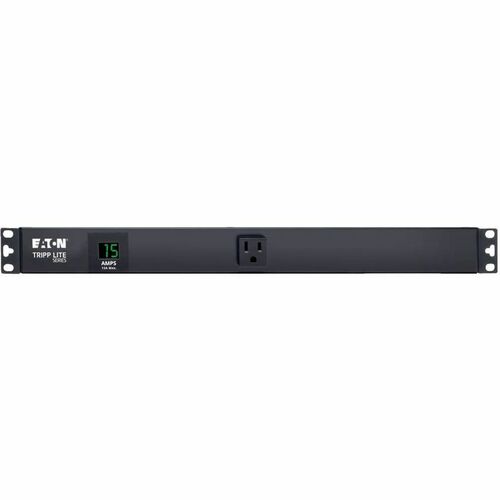

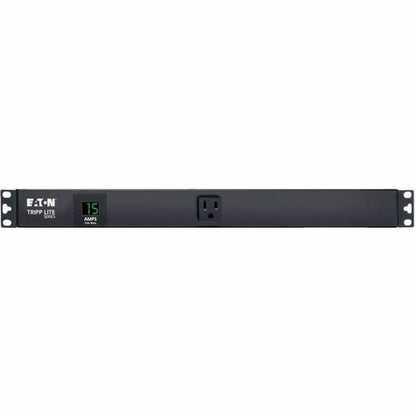

- 1U horizontal rackmount, Digital current meter
- NEMA 5-15P input with 15 ft / 4.5m line cord

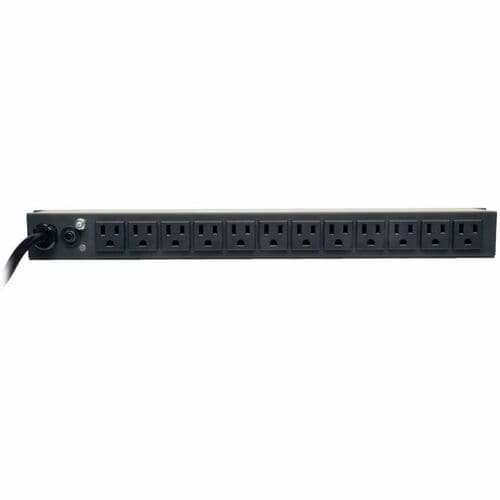

- 13 NEMA 5-15R outlets oriented with ground pin on the bottom (1 front / 12 rear)
Spécifications techniques
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 15 A |
| Power Rating (Watt) | 1.50 kW |
| Technical Information | |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 13 x NEMA 5-15R |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDUMH15-RA |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDUMH15-RA |
| Product Name | PDUMH15-RA Metered Rackmount PDU |
| Product Line | Metered |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Weight (Approximate) | 4.60 lb (2086.52 g) |
| Mount Type | Rack-mountable |
| Wall-mountable | |
| Rack Height | 0U/1U/2U |
| Placement | Under-counter |
| Cord Length | 15 ft (4.57 m) |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 3.75" (95.25 mm) |
| Mounting Orientation | Horizontal/Vertical |
