Single-Phase PDU Distributes and Monitors Network-Grade Power in Real Time

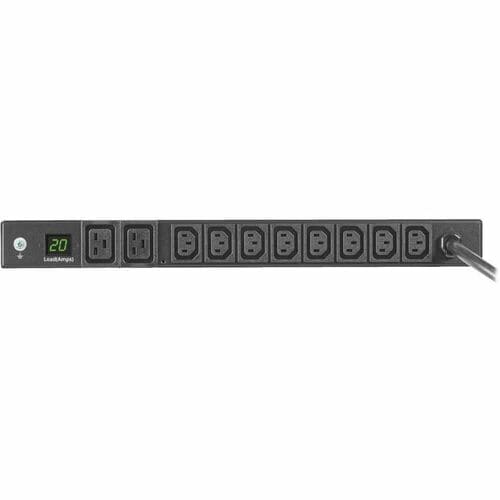

This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMH20HVL66 features eight C13 and two C19 208/230V outlets for connecting equipment. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.
Digital Load Meter Helps Prevent Potentially Expensive Overloads

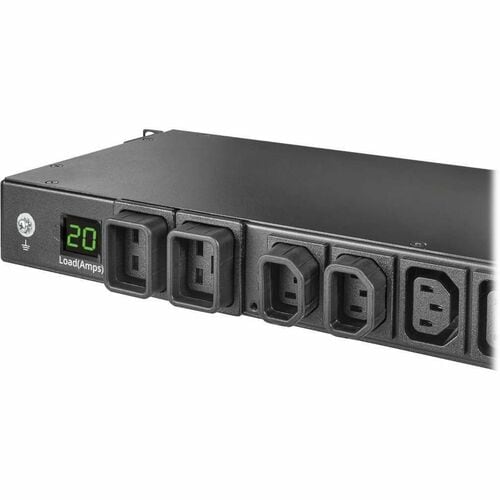

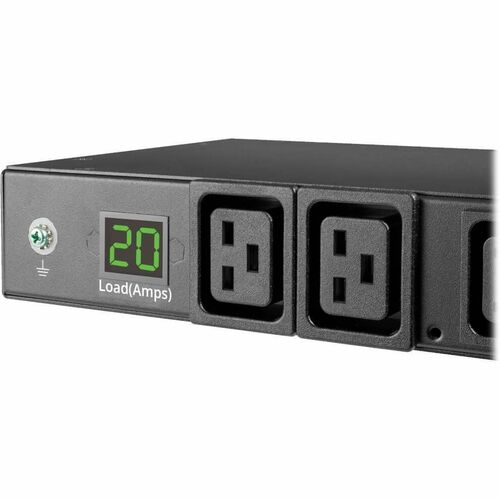

A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low.
Versatile Installation Options Give You Plenty of Choices

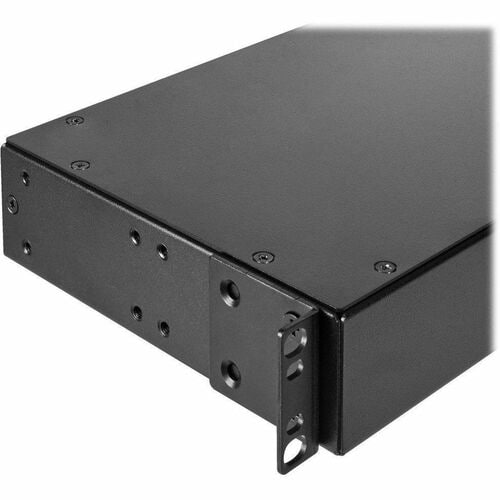

The reversible all-metal housing comes with mounting brackets for installation in 1U of space or 0U vertical mounting in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware. The six-foot cord with NEMA L6-20P input plug connects the single-phase PDU to a protected UPS system, generator or mains input source for reliable multi-outlet power distribution.
TAA-Compliant for GSA Schedule Purchases
The PDUMH20HVL66 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- PDU is reliable for power protection and management solutions
- PDU improves efficiency, uptime and growth of data centers
- Metered PDU offers reliable, rack-mount and multi-outlet power source
- You can always avoid potential overloads with PDU meter
Spécifications techniques
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| 208 V AC | |
| Input Current | 20 A |
| Power Rating (Watt) | 3.80 kW |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDUMH20HVL66 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDUMH20HVL66 |
| Product Name | PDUMH20HVL66 10-Outlets PDU |
| Brand Name | Tripp Lite by Eaton |
| Miscellaneous | |
| Additional Information | USER INTERFACE, ALERTS & CONTROLS
SPECIAL FEATURES
|
| Package Contents |
|
| Certifications & Standards | STANDARDS & COMPLIANCE
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 6.80 lb (3084.43 g) |
| Mount Type | Wall-mountable |
| Rack-mountable | |
| Rack Height | 1U |
| Placement | Under-counter |
| Cord Length | 6 ft (1.83 m) |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 6.50" (165.10 mm) |
| Mounting Orientation | Horizontal/Vertical |
| Technical Information | |
| Protection Type | Circuit Protection |
| Overload Protection | |
| Accidental Power Shutdown | |
| Plug/Connector Type | NEMA L6-20P |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Metered |
| Receptacle Detail | 2 x IEC 60320 C19 |
| 8 x IEC 60320 C13 |
