À propos du produit

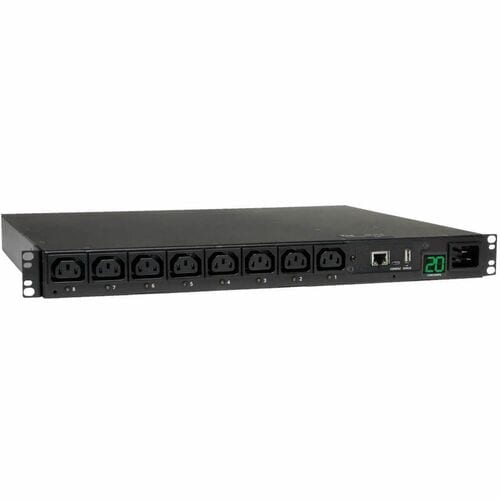

Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.
Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
- Switched 16/20A 200-240V PDU, 1U Horizontal Rackmount format
- Reports voltage, frequency & loading information via ethernet interface
- Visual current meter, reversible housing

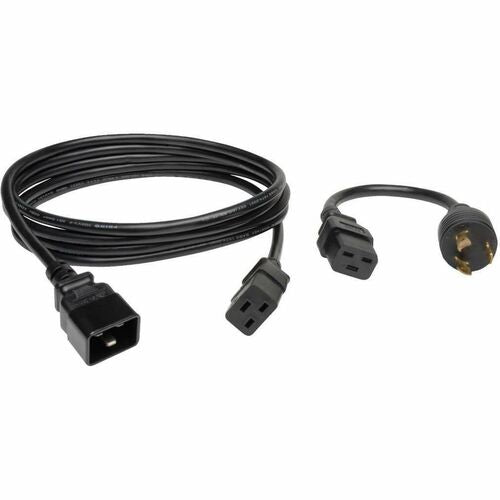

- C20 inlet; 8.5ft / 2.6m C20 input cable with L6-20P adapter
- Auto Probe for Autonomous Device Management
Spécifications techniques
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management | Supported Protocols:
|
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| 208 V AC | |
| Input Voltage Range | 208 V AC - 240 V AC |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 9 lb (4082.33 g) |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 14.80" (375.92 mm) |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDUMH20HVNET |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDUMH20HVNET |
| Product Name | PDUMH20HVNET PDU Switched 208V - 240V 20A 8 Outlet |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Protection Type | Short Circuit Protection |
| Overload Protection | |
| Plug/Connector Type | IEC 60320 C20 |
| Receptacle Type | IEC 60320 C13 |
| PDU Type | Switched |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Plug/Connector Detail | 1 x IEC 60320 C20 |
