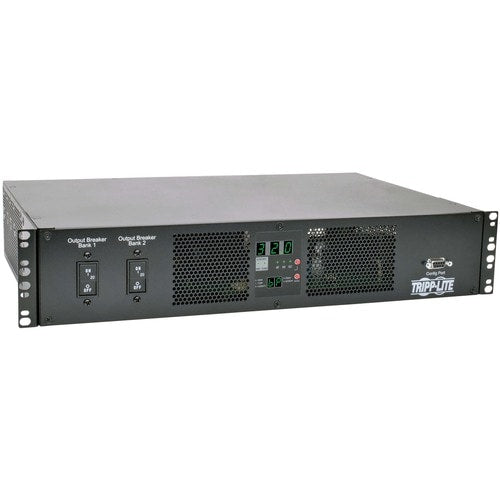

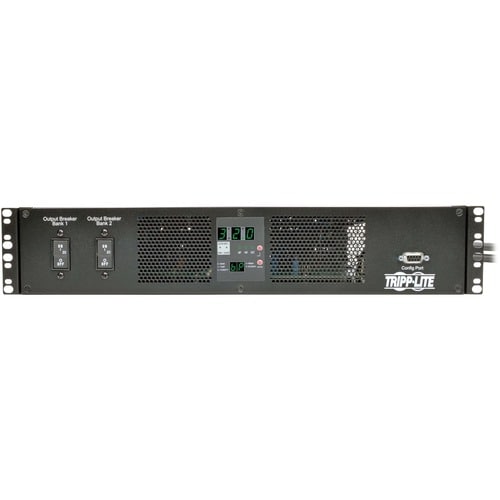

The PDUMH32HVAT 7.4kW Single-Phase 230V ATS/Metered PDU provides power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 2U of space in EIA-standard 19-inch racks and features 18 outlets (16 C13 and two C19) in two load banks, each bank protected by a 20A circuit breaker.Dual three-meter input cords with IEC 309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase 230V power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption. Multifunction digital display with LED indicators reports output current, voltage and kW loading information.
- Single-phase IEC309 32A Blue (2P+E) input and 230V output

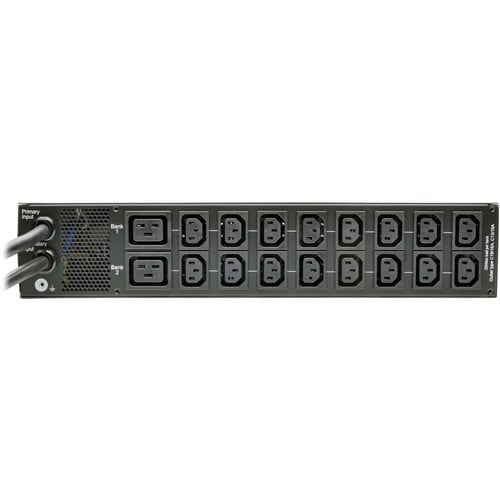

- 16 C13 and 2 C19 outlets in 2 load banks
- Automatic transfer switching within 1-5 ms
- Mounts in 2U of space in EIA-standard 19 in. racks

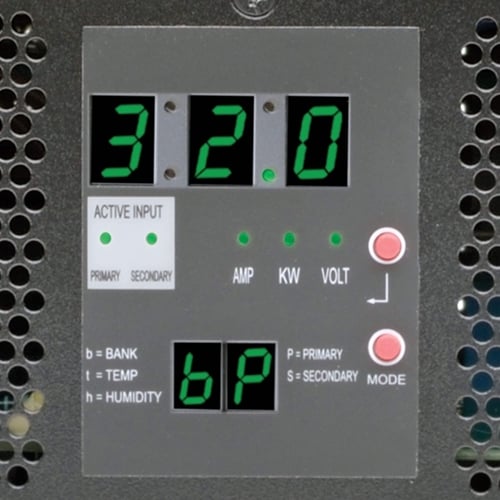

- Multifunction digital display with LED indicators
Spécifications techniques
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 13.70 lb (6214.22 g) |
| Mount Type | Rack-mountable |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 12.50" (317.50 mm) |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDUMH32HVAT |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDUMH32HVAT |
| Product Name | PDUMH32HVAT PDU |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Protection Type | Overload Protection |
| Plug/Connector Type | IEC 60309 32A Blue (2P+E) |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| Receptacle Detail | 2 x IEC 60320 C19 |
| 16 x IEC 60320 C13 | |
| Plug/Connector Detail | 2 x IEC 60309 32A BLUE (2P+E) |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 200 V AC |
| 208 V AC | |
| 230 V AC | |
| 240 V AC | |
| 220 V AC | |
| Input Current | 32 A |
| Input Voltage Range | 200 V AC - 240 V AC |
| Power Rating (Watt) | 7.70 kW |
