Tripp Lite par Eaton PDUMNH30HVAT 5,8 kW monophasé 208/240 V ATS/Monit
Tripp Lite par Eaton PDUMNH30HVAT 5,8 kW monophasé 208/240 V ATS/Monit
Prix habituel
$1,641.72 CAD
Prix habituel
$1,838.73 CAD
Prix promotionnel
$1,641.72 CAD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Tripp Lite by Eaton PDUMNH30HVAT 5,8 kW monophasé 208/240 V ATS/PDU surveillé - Surveillé - NEMA L6-30P - 1 x NEMA L6-30R - 230 V CA - 5,80 kW - 1U - Montable en rack VPN : PDUMNH30HVAT SKU : RSC101581 UPC : 37332184917
- Deux entrées monophasées L6-30P avec cordons de 10 pieds
- Prise L6-30R pour connecter un seul appareil ou un PDU vertical 0U
- Commutation de transfert automatique dans un délai de 1 à 5 ms
Bloc de texte
Impossible de charger la disponibilité du service de retrait
Remise sur volume disponible - Demandez un devis.
Afficher tous les détails



Recently Viewed
Tripp Lite par Eaton PDUMNH30HVAT 5,8 kW monophasé 208/240 V ATS/Monit
Résumé des informations sur le produit

À propos du produit
The PDUMNH30HVAT 5.8kW Single-Phase 208/240V ATS/Monitored PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features one L6-30R outlet-perfect for connecting a single device or a 0U 208/240V PDU with an L6-30P plug.

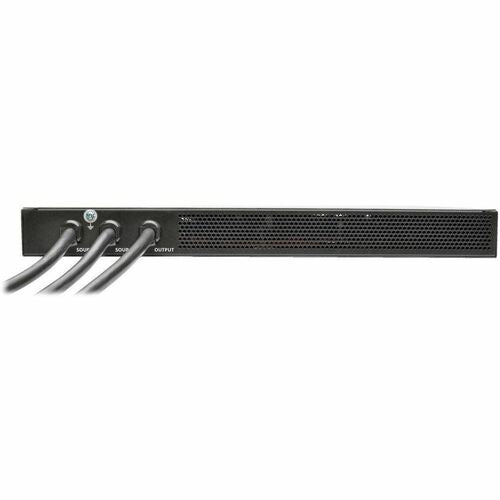

Dual 10-foot input cords with L6-30P plugs connect to separate primary and secondary single-phase power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Automated alerts help prevent accidental overloads, power loss and downtime. Digital display indicates power availability, voltage, source A/B input status, output load and power factor, as well as temperature and humidity conditions with the optional ENVIROSENSE module (sold separately).
Dual 10-foot input cords with L6-30P plugs connect to separate primary and secondary single-phase power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Automated alerts help prevent accidental overloads, power loss and downtime. Digital display indicates power availability, voltage, source A/B input status, output load and power factor, as well as temperature and humidity conditions with the optional ENVIROSENSE module (sold separately).
- Two single-phase L6-30P inputs with 10 ft. cords
- L6-30R outlet for connecting single device or 0U vertical PDU
- Automatic transfer switching within 1-5 ms
- Built-in LX Platform Network Interface

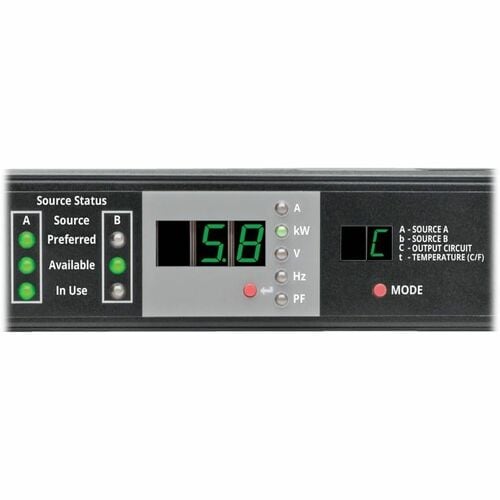

- Digital LED display for real-time status monitoring
Spécifications techniques
Management | |
Management | Protocols:
|
Miscellaneous | |
Package Contents |
|
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Power Description | |
Input Voltage | 230 V AC |
Output Voltage | 230 V AC |
Input Current | 30 A |
Power Rating (Watt) | 5.80 kW |
Physical Characteristics | |
Weight (Approximate) | 15.37 lb (6971.71 g) |
Mount Type | Rack-mountable |
Rack Height | 1U |
Height | 1.72" (43.69 mm) |
Width | 16.93" (430.02 mm) |
Depth | 14" (355.60 mm) |
Technical Information | |
Plug/Connector Type | NEMA L6-30P |
Phase | Single Phase |
Receptacle Type | NEMA L6-30R |
PDU Type | Monitored |
Receptacle Detail | 1 x NEMA L6-30R |
Plug/Connector Detail | 2 x NEMA L6-30P |
General Information | |
Product Type | PDU |
Manufacturer Part Number | PDUMNH30HVAT |
Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
Manufacturer | Eaton Corporation |
Product Model | PDUMNH30HVAT |
Product Name | PDUMNH30HVAT 5.8kW Single-Phase 208/240V ATS/Monitored PDU |
Product Series | Monitored |
Brand Name | Tripp Lite by Eaton |
