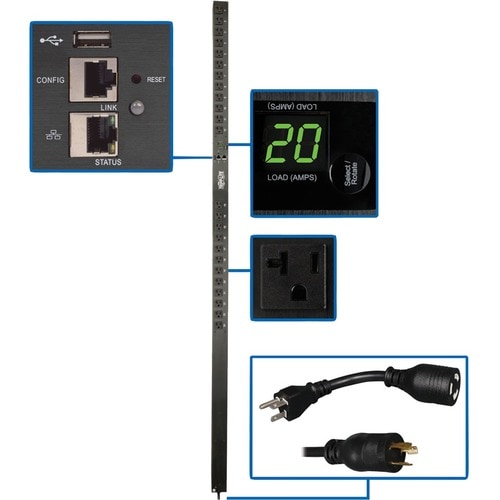

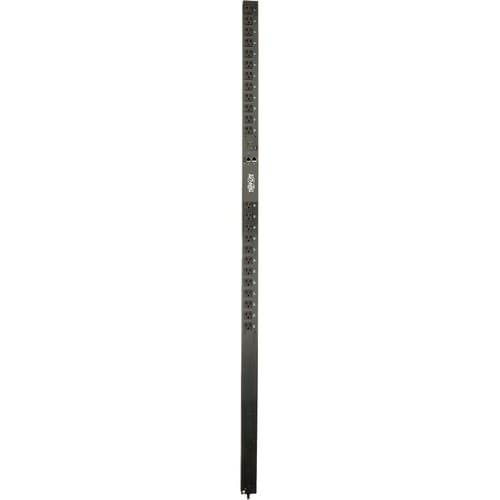

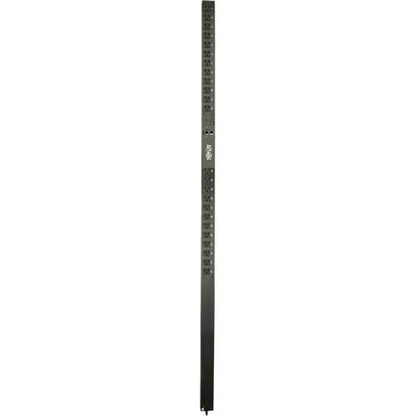

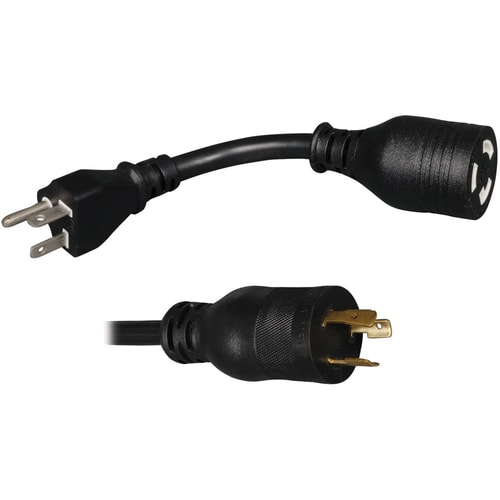

The PDUMNV20LX 1.9kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for any IT or industrial application, it features 24 NEMA 5-15/20R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L5-20P plug and 5-20P adapter connects the PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

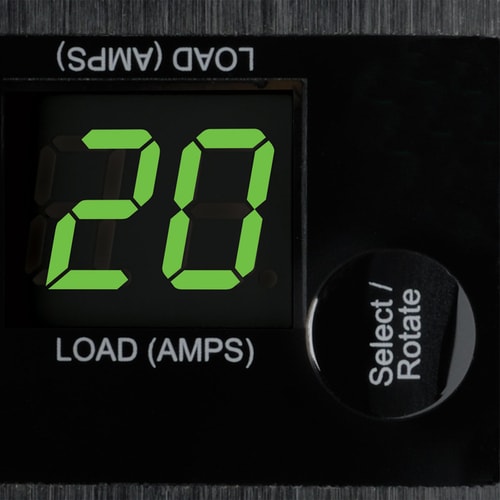

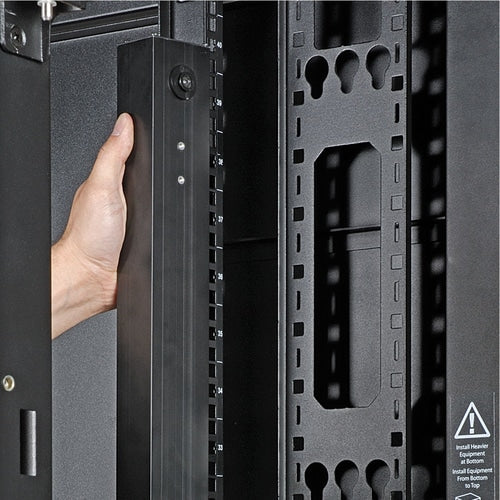

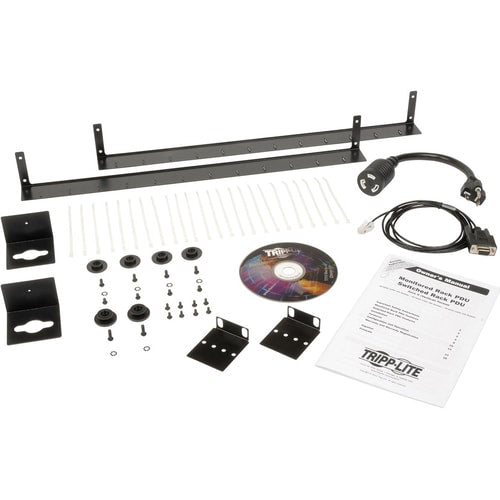

A digital ammeter allows you to monitor the PDU's current level in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
- Electric power fitted to racks of computers and networking equipment within a data center
- With PDUs decisions for load balancing and minimizing extra cost can be managed
- Remotely monitor single-or-three phase voltage, frequency even load levels with monitored PDUs
- Before critical input source become overloaded always be warned with monitored PDUs
Spécifications techniques
| Management | |
| Management |
|
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |
| Plug/Connector Type | NEMA L5-20P |
| Phase | Single Phase |

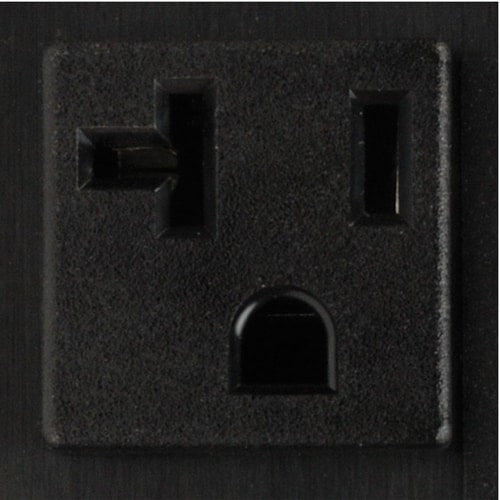

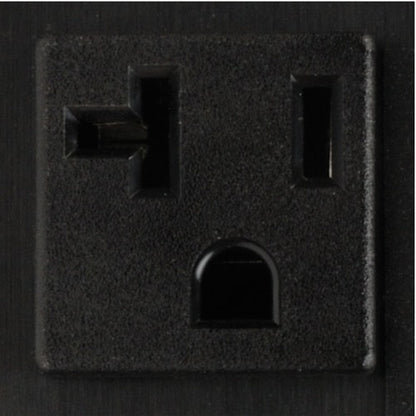

| Receptacle Type | NEMA 5-15/20R |
| PDU Type | Monitored |
| Receptacle Detail | 24 x NEMA 5-15/20R |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDUMNV20LX |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Name | PDUMNV20LX 1.9kW Single-Phase Monitored PDU |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Weight (Approximate) | 12.20 lb (5533.83 g) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 70" (1778 mm) |
| Width | 2.19" (55.63 mm) |
| Depth | 1.75" (44.45 mm) |
| Mounting Orientation | Vertical |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 127 V AC |
| 120 V AC | |
| 100 V AC | |
| Input Current | 20 A |
| Input Voltage Range | 100 V AC - 127 V AC |
| Power Rating (Watt) | 1.90 kW |
