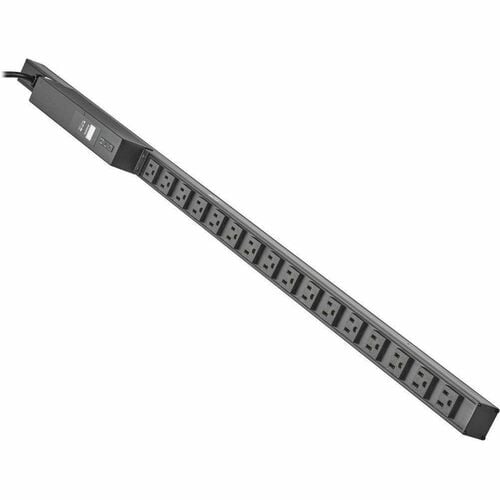

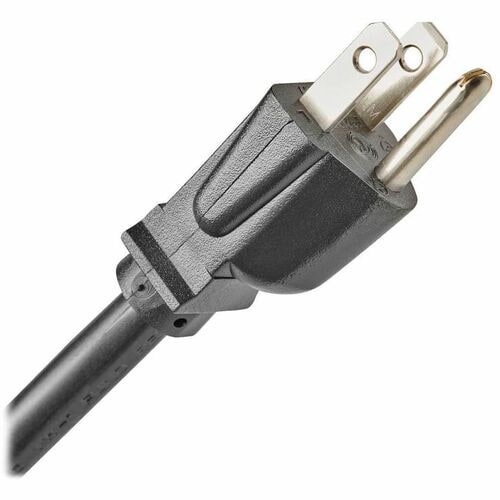

This local metered PDU is an ideal unit for telecom, security, audio/video and a wide variety of general portable and stationary rack-mount applications. Recommended for network-grade IT environments, the PDUMV15-ISO provides real-time monitoring of load levels via its built-in digital current metering. A 15-foot (4.6-meter) cord with 5-15P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
Digital Load Meter Helps Prevent Potentially Expensive Overloads
The PDUMV15-ISO features 16 NEMA 5-15R outlets for delivering power to equipment. A digital ammeter reports the total input current in real time. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels can keep your TCO (total cost of ownership) low.
3840 Joules per Load Bank Fight Back Against Unexpected Power Surges
Protecting your valuable electronics is ISOBAR® network-grade AC surge and noise suppression. A 3840-joule surge protection rating defends your sensitive electronic components against even the strongest power surges, spikes and line noise. The PDUMV15-ISO covers full normal (H-N) and common (N-G/H-G) protection modes. A green LED confirms your connected equipment is protected.
Up-to-Date Safety Features Protect Your Vital Equipment
All outlets are protected by a resettable 15A circuit breaker that shuts down the PDU in the event of a power load to safeguard connected equipment. A transparent cover protects the lighted on/off switch to help prevent an accidental shutdown that could lead to costly downtime.
Versatile Installation Options Give You Plenty of Choices

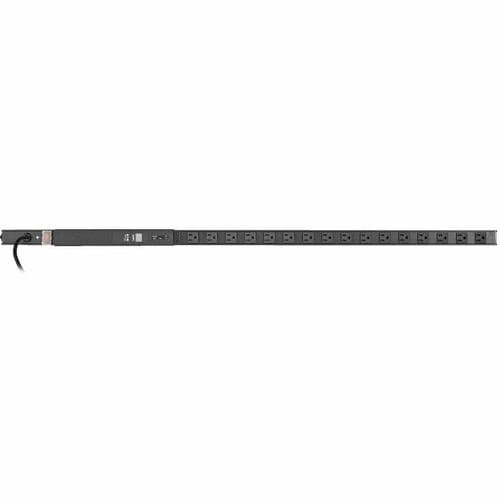

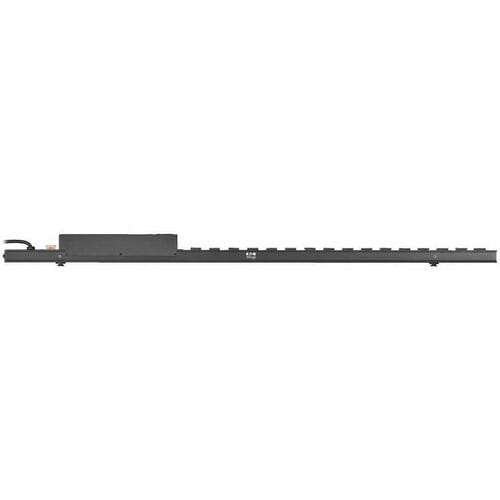

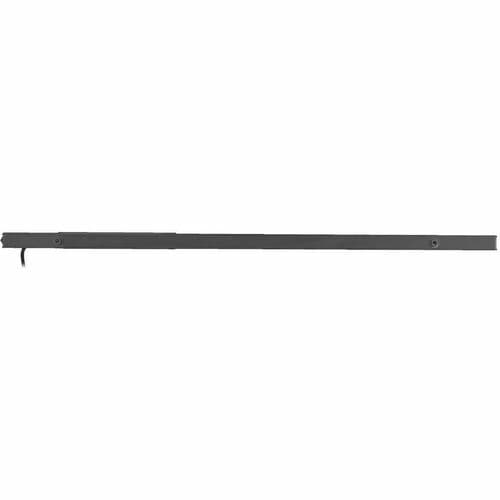

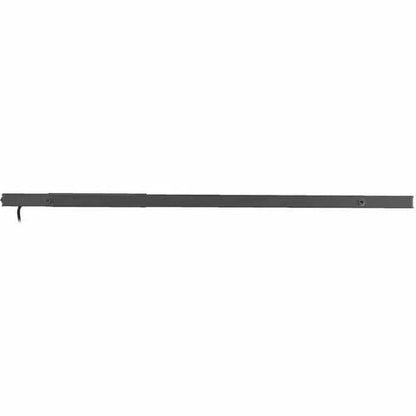

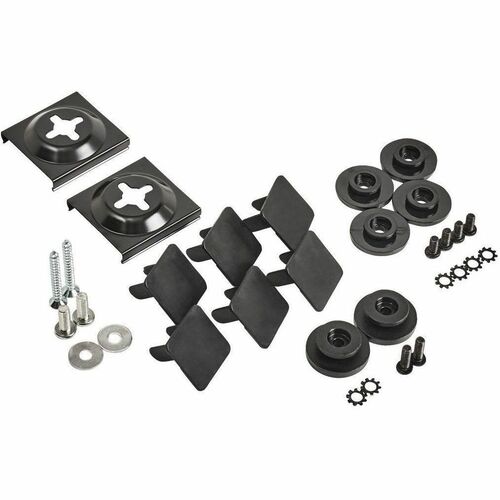

The 0U PDU mounts vertically using the included hardware. Vertical 0U mounting reduces cable clutter and permits efficient airflow through the rack. You can also install the long-lasting all-metal housing on a wall, raceway or a similar flat surface.
- PDU provides power control as remote controlled relay & load monitoring
- Metered PDU offers reliable, rack-mount and multi-outlet power source
Spécifications techniques
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 12 A |
| Power Rating (Watt) | 1.44 kW |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDUMV15-ISO |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDUMV15-ISO |
| Product Name | PDUMV15-ISO 16-Outlets PDU |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Protection Type | Noise |
| Surge Protection | |
| Plug/Connector Type | NEMA 5-15P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15R |
| PDU Type | Metered |
| Receptacle Detail | 16 x NEMA 5-15R |
| Physical Characteristics | |
| Weight (Approximate) | 4.94 lb (2240.75 g) |
| Form Factor | Rack |
| Mount Type | Wall-mountable |
| Rack Height | 0U |
| Height | 48.43" (1230.12 mm) |
| Width | 1.50" (38.10 mm) |
| Depth | 3.14" (79.76 mm) |
| Mounting Orientation | Vertical |
