À propos du produit
This single-phase Local Metered PDU offers real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rack-mount multi-outlet power distribution from any protected UPS, generator or mains input power source. High-quality design includes rugged all-metal housing and secure rack-mount installation with included mounting accessories.
Features
- 3.84kW 16A single phase 208/230V Local Metered Power Distribution Unit / PDU

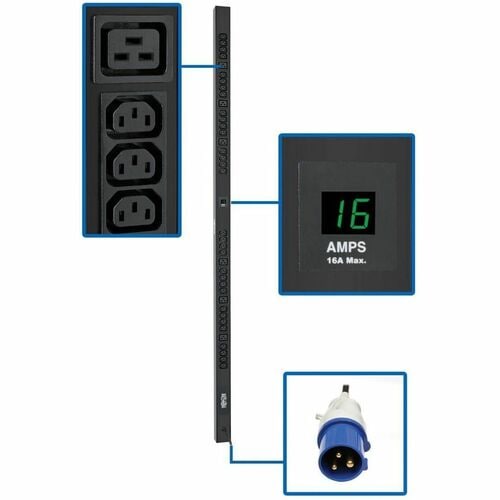

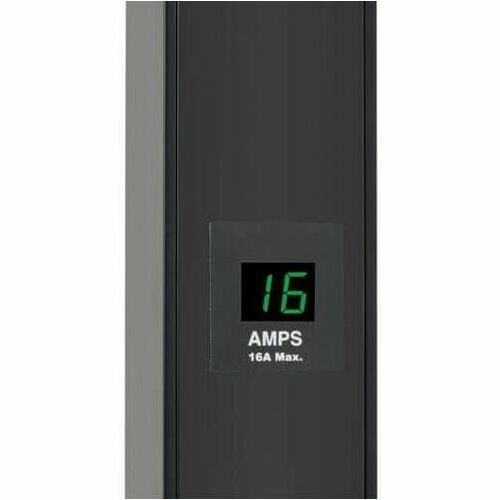

- Two-digit lighted meter reports combined total output current in amps

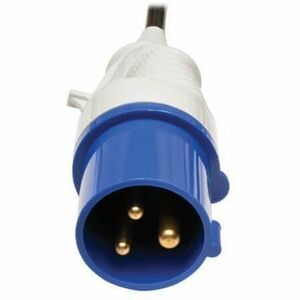

- 10ft / 3m input cable with Blue IEC309 16A input plug

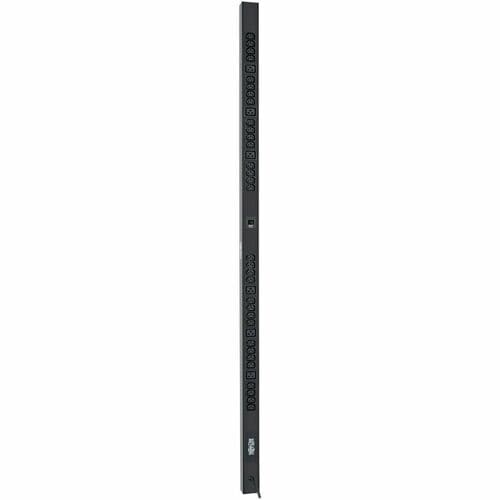

- 0U 63.75in / 162cm vertical rackmount format installs vertically, using no rack spaces

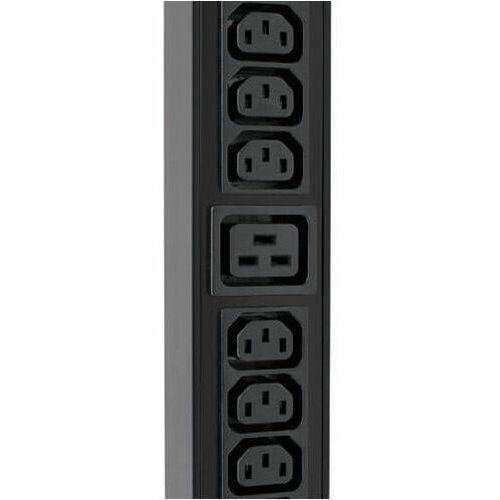

- 38 total outlets (6 C19, 32 C13)
- Plug-lock cord retention sleeves keep C20 and C14 equipment plugs from accidental disconnection
- Toolless installation supported in button-mount compatible equipment racks

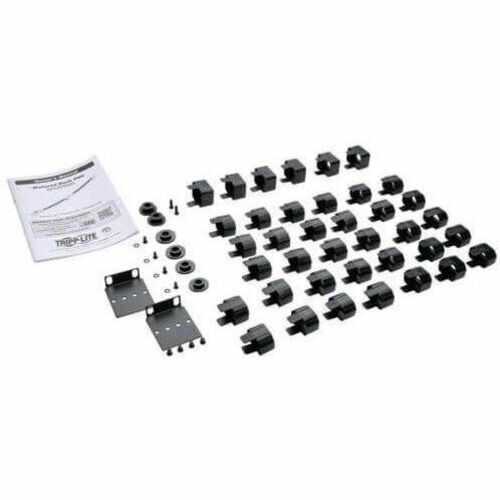

- Bolt-down installation brackets support installation in other racks and additional surfaces
- PDU is reliable for power protection and management solutions
- Metered PDU offers reliable, rack-mount and multi-outlet power source
Spécifications techniques
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | -22°F (-30°C) |
| Maximum Storage Temperature | 122°F (50°C) |
| Power Description | |
| Input Voltage | 230 V AC |
| Power Source | UPS |
| Output Voltage | 208 V AC |
| 230 V AC | |
| Input Current | 16 A |
| Power Rating (Watt) | 3.70 kW |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDUMV16HV |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDUMV16HV |
| Product Name | PDUMV16HV 38-Outlets PDU |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Features | LCD Display |
| Plug/Connector Type | IEC 60309 16A Blue (2P+E) |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Metered |
| Locking Receptacles | P-Lock |
| Receptacle Detail | 32 x IEC 60320 C13 |
| 6 x IEC 60320 C19 | |
| Physical Characteristics | |
| Weight (Approximate) | 5.29 lb (2400 g) |
| Form Factor | Vertical |
| Mount Type | Button Mount |
| Rack-mountable | |
| Rack Height | 0U |
| Cord Length | 10 ft (3.05 m) |
| Height | 63.78" (1620 mm) |
| Width | 2.24" (57 mm) |
| Depth | 3.74" (95 mm) |
| Mounting Orientation | Vertical |
