À propos du produit

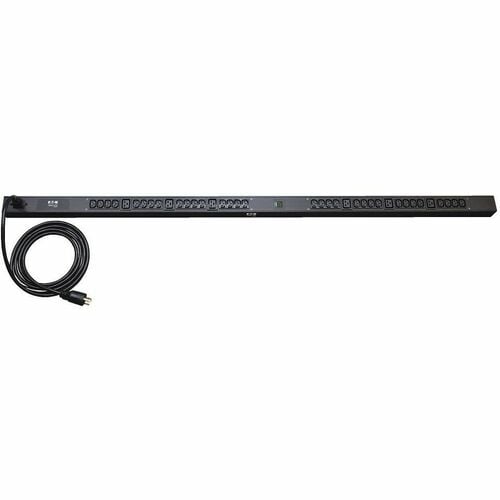

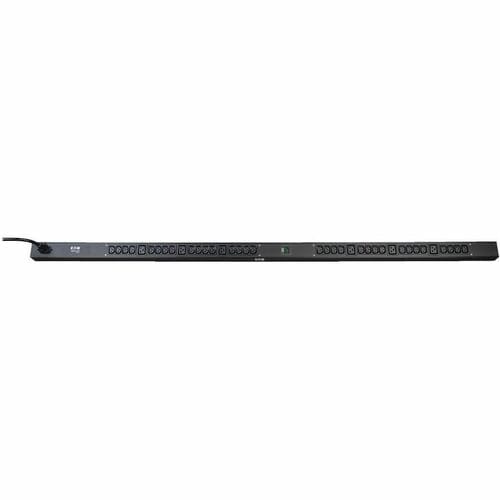

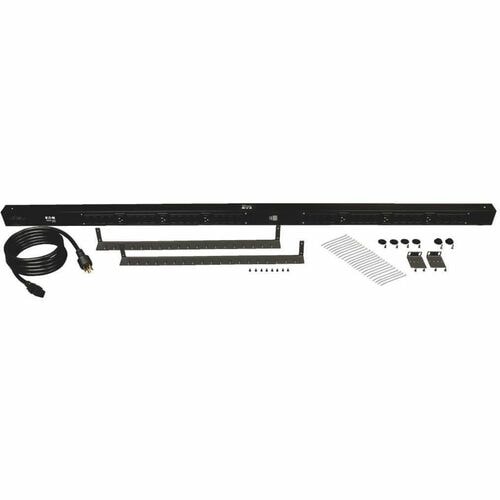

Tripp Lite Metered Power Distribution Units give IT Managers the ability to monitor network power consumption levels to prevent mains, generator, UPS or PDU overloads and to ensure proper load balance in complex redundant power applications. Each built-in, easy to read, two-character LED display offers continuous PDU current monitoring data in one-amp increments. Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to multiple servers and vital networking equipment in rack enclosures, network closets and more. Tooless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered.PDUMV20HV 63.75 in. vertical 0U metered rack PDU supports 20A maximum capacity at 208/230/240V (agency derated to 16A). Includes 10 ft. detachable line cord with L6-20P input plug. 32 C13 and 6 C19 outlets support up to 38 directly connected pieces of networking equipment. Outlets are arranged in a single unbreakered load bank. Built-in 2 character displays offer continuous information on PDU power consumption.
- Metered single phase 16/20A 200-240V 0U 63.75in / 162cm vertical rackmount PDU
- Two-digit meter reports output current in amps
- 10ft / 3m detachable input cable with NEMA L6-20P plug
- C20 inlet accepts a variety of 16A international cordsets
Spécifications techniques
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| 230 V AC | |
| 208 V AC | |
| Input Voltage Range | 208 V AC - 240 V AC |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDUMV20HV |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDUMV20HV |
| Product Name | PDUMV20HV PDU Metered 208V - 240V 20A 38 Outlet |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Weight (Approximate) | 5.20 lb (2358.68 g) |
| Mount Type | Rack-mountable |
| Wall-mountable | |
| Height | 63.75" (1619.25 mm) |
| Width | 2.25" (57.15 mm) |
| Depth | 3.75" (95.25 mm) |
| Mounting Orientation | Vertical |
| Technical Information | |
| Protection Type | Overload Protection |
| Short Circuit Protection | |
| Plug/Connector Type | NEMA L6-20P |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| Receptacle Detail | 32 x IEC 60320 C13 |
| 6 x IEC 60320 C19 |
