À propos du produit

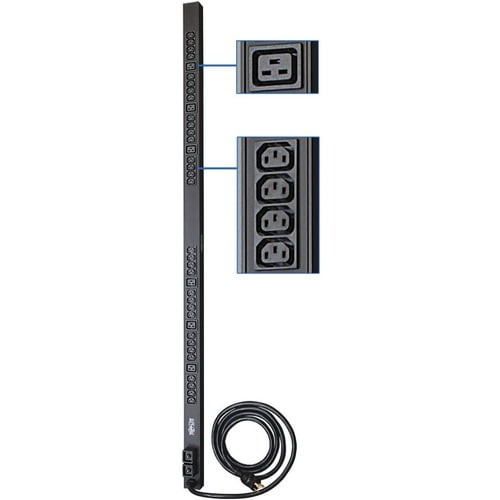

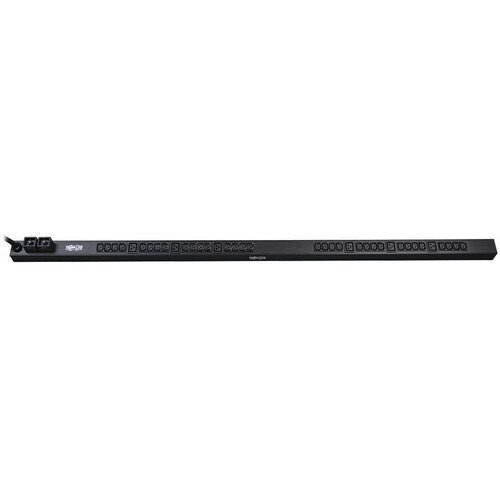

Tripp Lite Basic Power Distribution Units give IT Managers the ability to power multiple servers and vital networking hardware from a single input power source. Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to critical equipment in rack enclosures, network closets and more. Tooless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered.PDUV30HV 63.75 in. vertical 0U rack PDU supports 30A maximum capacity at 208/240V (agency derated to 24A). Includes 10 ft. attached line cord with L6-30P input plug. 32 C13 and 6 C19 outlets support up to 38 directly connected pieces of networking equipment. Outlets are arranged in two separately breakered 15A load banks.
- Basic 0U 63.75 in. vertical rack PDU
- 208/240V 30A maximum capacity
- 10 ft. input cable with locking L6-30P plug
- 38 total output receptacles (6 C19, 32 C13)
- Toolless button-mount installation
- Cord retention brackets keep vital equipment plugs connected
Spécifications techniques
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| 208 V AC | |
| Input Voltage Range | 208 V AC - 240 V AC |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDUV30HV |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDUV30HV |
| Product Name | PDUV30HV PDU Basic 208V - 240V 30A 38 Outlet |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Weight (Approximate) | 8 lb (3628.74 g) |
| Mount Type | Rack-mountable |
| Wall-mountable | |
| Height | 63.75" (1619.25 mm) |
| Width | 2.25" (57.15 mm) |
| Depth | 3.75" (95.25 mm) |
| Mounting Orientation | Vertical |
| Technical Information | |
| Protection Type | Short Circuit Protection |
| Overload Protection | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Basic |
| Receptacle Detail | 32 x IEC 60320 C13 |
| 6 x IEC 60320 C19 |
