À propos du produit

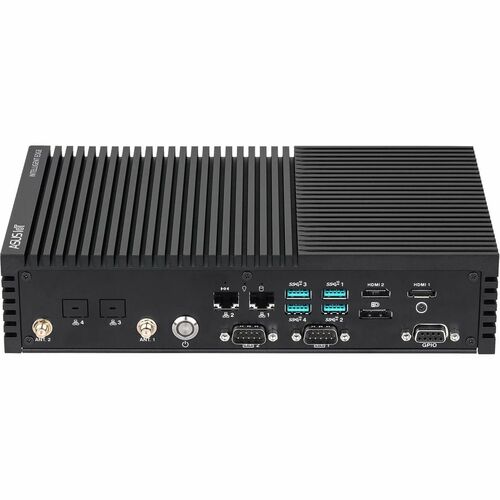

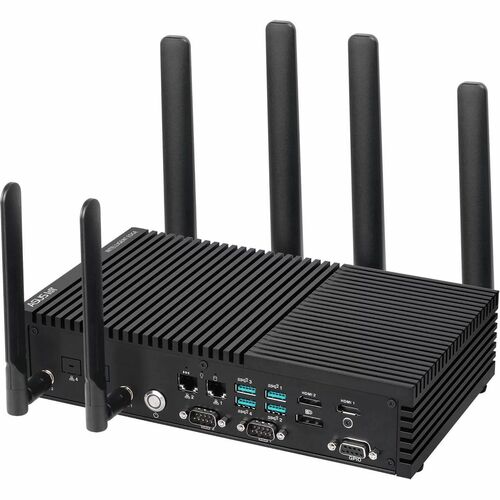

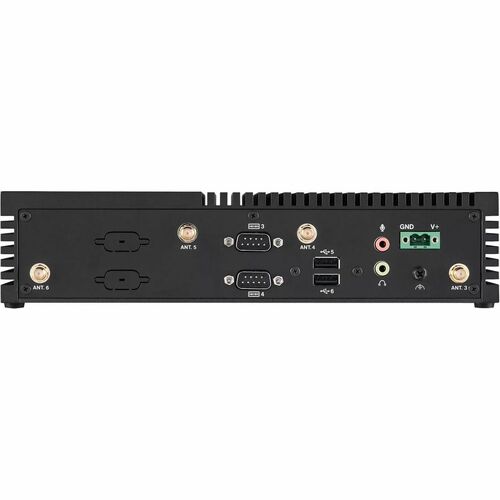

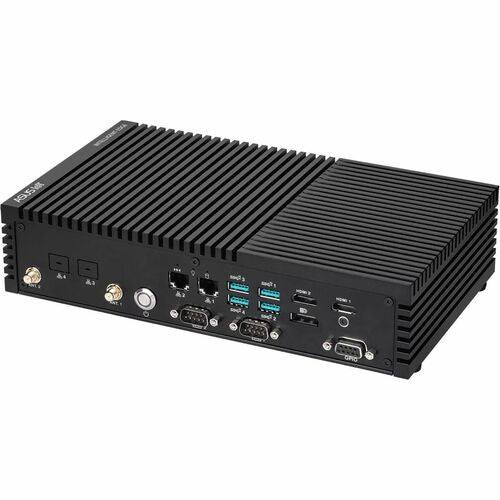

ASUS PE2100U is an Intelligent Edge Computer featuring rich I/O capabilities, various connectivity options and fanless thermal design that suitable for diverse IoT applications. Constructing with Intel ® 13th Gen. Core™-I processors, PE2100U includes up to 4 COM ports (2x RS-232/422/485), provides triple independent video outputs (2x HDMI 2.0 / 1x DP 1.2), and supplies plentiful expansion capacity (PoE LAN, CANBus module and so on). This new edge computer is designed to take consideration for both high performance and silent operation in rugged environment by achieving full CPU utilization while being cooled with a fanless thermal solution.
In order to offer enhanced features to ensure optimal performance and flexibility of adapting the surrounding environment, PE2100U is also designed with wide range of power inputs (9 - 36VDC), operating temperatures (-20°C - 60°C) and versatile I/O interfaces for multiple vertical market applications. ASUS Edge Computer ensures 24/7 stability and reliability, combined with our world-class after-sales service and guaranteed long-term availability - your investment for the duration of the product lifecycle is maximized.
Spécifications techniques
| Built-in Devices | |
| Fanless | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Power Description | |
| Maximum Power Supply Wattage | 120 W |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 2 |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Processor | |
| Processor Type | Core i5 |
| Processor Model | i5-1345UE |
| Processor Manufacturer | Intel |
| Processor Generation | 13th Gen |
| General Information | |
| Product Type | Industrial Computer |
| Manufacturer Part Number | PE2100U-i5-1345UE-ACDC |
| Manufacturer Website Address | http://www.asus.com |
| Manufacturer | ASUS Computer International |
| Product Model | PE2100U |
| Product Name | PE2100U Industrial Computer |
| Brand Name | Asus |
| Interfaces/Ports | |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 2 |
| DisplayPort | Yes |
| Serial Port | Yes |
| Number of DisplayPort Outputs | 1 |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 4 |
