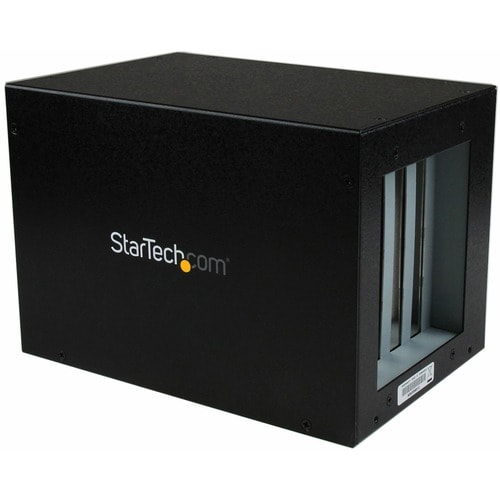

StarTech.com's innovative PCI Express to PCI Expansion Chassis provides a quick and simple solution to I/O expandability on almost any PCI Express (PCIe) enabled system. Adding external PCI slots to a server/workstation or laptop, this cost-effective and time-saving method of simply adding additional PCI cards to a server/workstation or providing a platform to be able to swap PCI add-in cards between a mobile and desktop setup is the optimal method of maximizing the I/O capabilities of new or existing systems.
The external expansion chassis adds four PCI slots (32-bit/33MHz) to the host computer system, through a single PCI Express connection. Providing total bandwidth of up to 250MBps from the x1 PCIe host controller card, which allows the host computer to function as though the cards in the expansion chassis were connected directly to the motherboard. The PCIe controller card connects directly to the PCI Expansion box with an included DVI cable for a reliable, high quality connection.
A dependable I/O expansion solution, the Expansion Chassis is backed by StarTech.com's 2-year warranty and free lifetime technical support.
More from the Manufacturer
- Add an additional 4 PCI slots (32-bit/33 MHz), using PCI Express
- Rugged steel construction
- Supports both 5V and 3.3V & 5V add-in PCI cards
- Self-powered Expansion box with an on/off button
- No driver or software installation
- PCI Express adapter card includes both Full/Low Profile installation brackets and a DVI cable to connect the card to the PCI enclosure
Spécifications techniques
| General Information | |
| Product Type | Expansion Chassis |
| Manufacturer Part Number | PEX2PCI4 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | PCI Express to 4 Slot PCI Expansion System |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Weight (Approximate) | 5.20 lb (2358.68 g) |
| Length | 8" (203.20 mm) |
| Height | 5.60" (142.24 mm) |
| Width | 5.40" (137.16 mm) |
| Product Color | Black |
| Color Family | Black |
| Product Material | Aluminum |
| Steel | |
| Miscellaneous | |
| Additional Information | Connector(s):
|
| Application/Usage | Laptop |
| PC | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) |
