À propos du produit

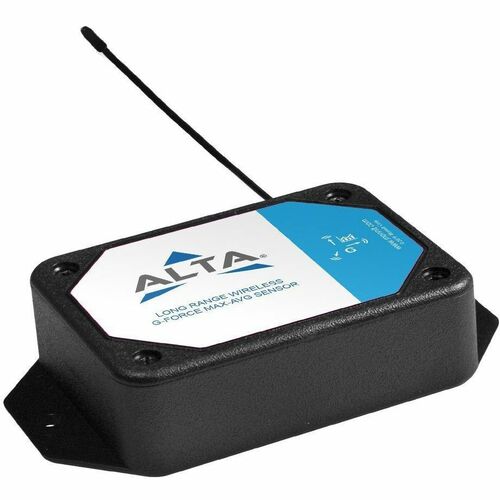

ALTA® Wireless Accelerometer - G-Force Max-Avg Sensors measure the maximum and average g-force levels that occur on the X, Y, and Z axes over a user-defined report interval.
Key Features
- Measures on three axes
- Resolution: 0.001 g
- Accuracy: ±2.5% on all axes
- Range: 2 g, 4 g, or 8 g
- High Pass Filter (HPF) optional to remove static forces
- Configurable thresholds for critical condition monitoring
Principles of Operation
The ALTA Wireless Accelerometer - G-Force Max-Avg Sensor uses a MEMS (microelectromechanical system) accelerometer to measure and record acceleration over a user-configurable time interval or Heartbeat. On every Heartbeat, the data collected is analyzed, and Max and Average results are forwarded to the gateway, making the data available in iMonnit or another approved data service.
Spécifications techniques
| Physical Characteristics | |
| Weight (Approximate) | 133.2 g |
| Power Description | |
| Power Source | Battery |
| Technical Information | |
| Wireless Technology | Wi-Fi |
| Miscellaneous | |
| Application/Usage | Commercial |
| Package Contents |
|
| Battery Information | |
| Number of Batteries Supported | 2 |
| Battery Included | Yes |
| Battery Voltage | 3.80 V |
| General Information | |
| Product Type | Wireless Accelerometer Vibration Meter |
| Manufacturer Part Number | MNS29W2ACGM |
| Manufacturer Website Address | http://www.monnit.com |
| Manufacturer | Monnit Corporation |
| Product Name | Wireless G-Force Max-Avg Accelerometer - Commercial AA Battery Powered |
| Product Line | ALTA |
| Brand Name | Monnit |
