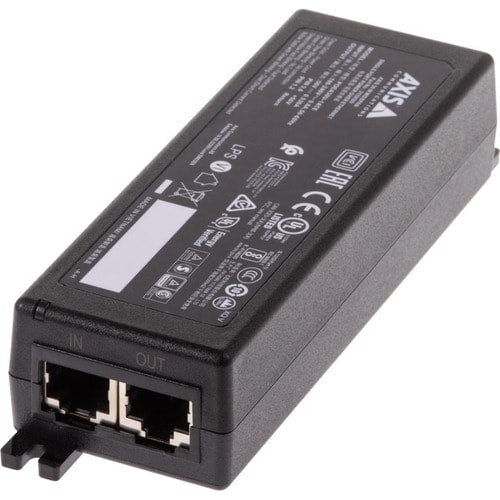

AXIS 30 W Midspan is a 1-port midspan that can deliver up to 30 W to one network device. It is IEEE 802.3af (15 W) and IEEE 802.3at (30 W) compliant, which ensures compatibility with most Axis network products with built-in PoE.

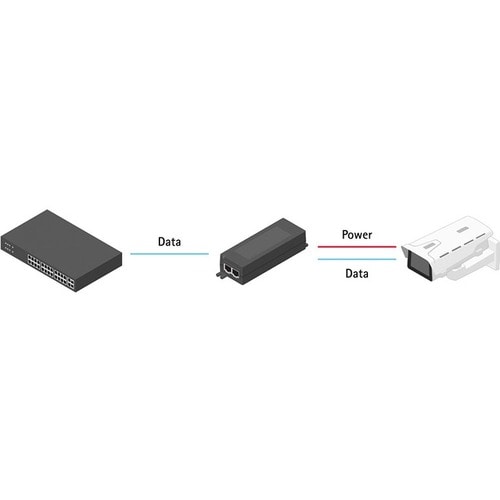

Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. With a single network cable, a PoE midspan injects power to the network device with built-in PoE support and enables data communication between the device and the switch. No need to replace existing Ethernet switches and cabling infrastructure.
Spécifications techniques
| Interfaces/Ports | |
| Input Ports | 1 x 10/100/1000Base-T |
| Output Ports | 1 x PoE |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Maximum Frequency | 60 Hz |
| Minimum Frequency | 50 Hz |
| Maximum Output Power | 30 W |
| General Information | |
| Product Type | PoE Injector |
| Manufacturer Part Number | 02172-004 |
| Manufacturer Website Address | http://www.axis.com |
| Manufacturer | Axis Communications |
| Product Name | 30 W Midspan |
| Brand Name | AXIS |
| Physical Characteristics | |
| Weight (Approximate) | 145 g |
| Form Factor | Wall/Shelf/DIN Rail Mountable |
| Height | 1.18" (30 mm) |
| Width | 1.81" (46 mm) |
| Depth | 5.52" (140.10 mm) |
| Product Color | Black |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Axis Fixed Cameras:
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| NDAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| China Restriction of Hazardous Substances (China RoHS) |
