À propos du produit

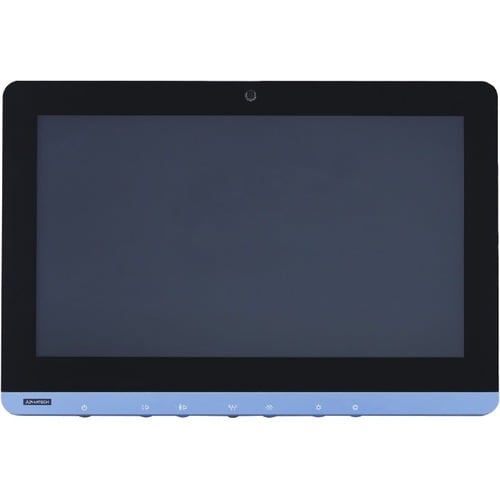

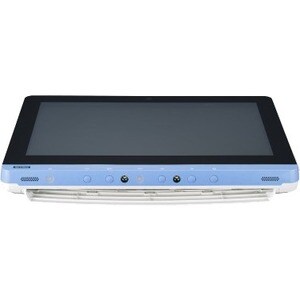

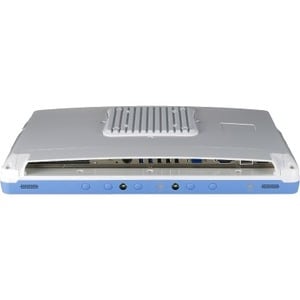

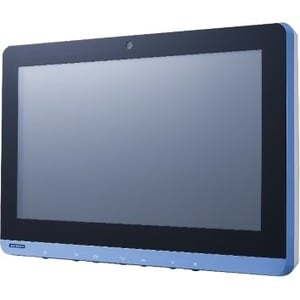

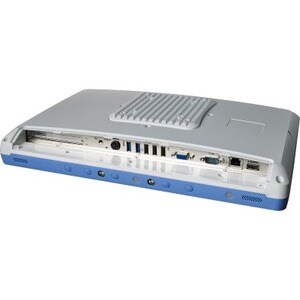

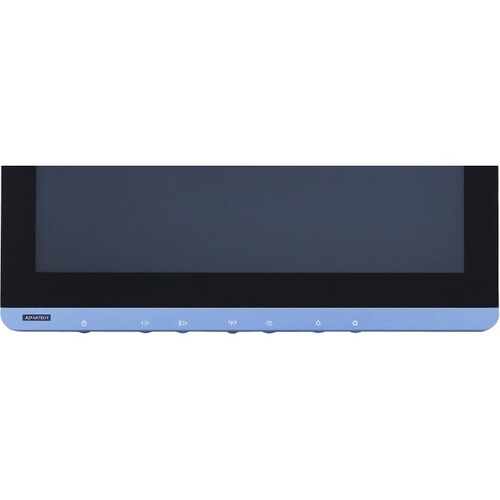

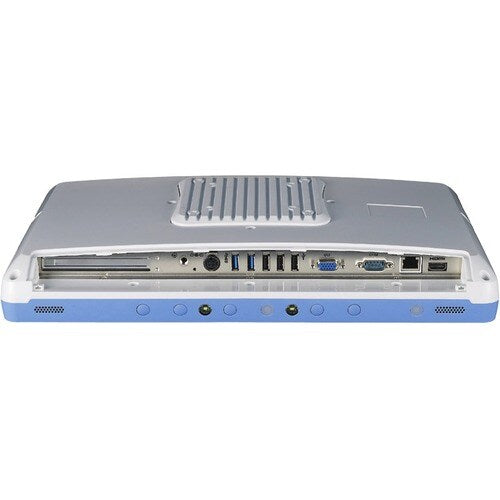

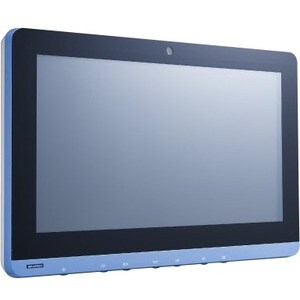

POC-W152 runs on an Intel® Core™ i3, i5 or i7 processor and the chipset capable of displaying crystal clear images on its 15.6" wide-screen display. The system is highly integrated and provides a rich selection of high speed I/O connectors, user-friendly function keys, and customizable features. POC-W152, housed in a slim 5.98 cm casing, weighs only 4.65 kg. The system optionally accommodates a multi-touch resistive touchscreen for ease of use, with many other optional features also available including Bluetooth, RFID, WLAN and more. In addition, POC-W152 terminal has a three-year warranty and have passed Reliability Demonstration Testing (RDT) to ensure continuous and flawless operation. This high performance fanless terminal is designed for image intense medical applications in operating arenas, at bedside, nursing stations, or other point-of-care locations within the hospital or clinic.
- Runs on an Intel® Core™ i3, i5 & i7 processor with a fanless, high performance profile
- 15.6" full HD resolution with edge-to-edge and bezel-less design
- USB 3.0 and PCIe(x4) expansion slot, mini PCIe slot x 2
- Offers a multi-touch option to deliver a truly unmatched touchscreen experience
- IP43 enclosure to protect against dust and water splashing for ease of cleaning
- Isolated design provides unique electric leakage protection for COM ports, LAN ports, and optional USB port
- Optional Bluetooth, RFID, inner WLAN module, Li-ion battery pack, and auto-focus 5MP camera
Spécifications techniques
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Memory | |
| Maximum Memory Supported | 8 GB |
| Standard Memory | 4 GB |
| Memory Technology | DDR3L SDRAM |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Maximum Power Supply Wattage | 100 W |
| Interfaces/Ports | |
| HDMI | Yes |
| VGA | Yes |
| Total Number of USB Ports | 5 |
| Number of USB 2.0 Ports | 3 |
| Number of USB 3.0 Ports | 2 |
| Physical Characteristics | |
| Weight (Approximate) | 10.25 lb (4650 g) |
| Form Factor | Desktop |
| Height | 10.79" (274 mm) |
| Width | 15.97" (405.53 mm) |
| Depth | 2.39" (60.82 mm) |
| Processor | |
| Processor Speed | 2 GHz |
| Processor Type | Celeron |
| Processor Model | J1900 |
| Processor Core | Quad-core (4 Core) |
| Processor Manufacturer | Intel |
| Display & Graphics | |
| Screen Resolution | 1366 x 768 |
| Screen Size | 15.6" (396.24 mm) |
| Screen Mode | HD |
| Touchscreen | Yes |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | HD Graphics |
| Graphics Memory Technology | DDR3L SDRAM |
| Graphics Memory Accessibility | Shared |
| General Information | |
| Product Type | All-in-One Computer |
| Manufacturer Part Number | POC-W152-C11D-ACE |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | POC-W152 |
| Product Name | POC-W152 15.6" Widescreen Point-of-Care Terminal |
| Product Line | Point-of-Care |
| Brand Name | Advantech |
