À propos du produit

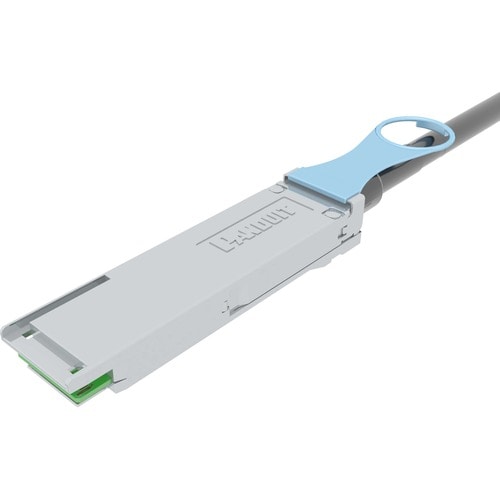

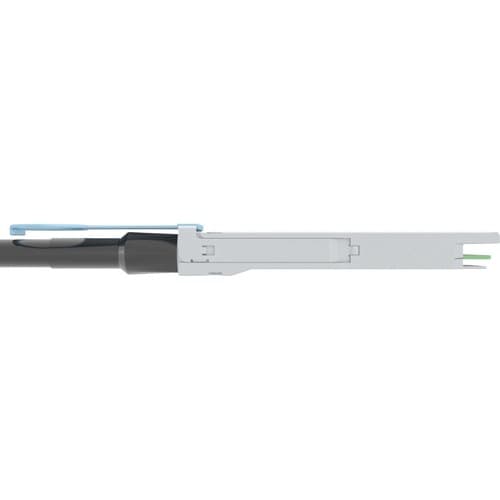

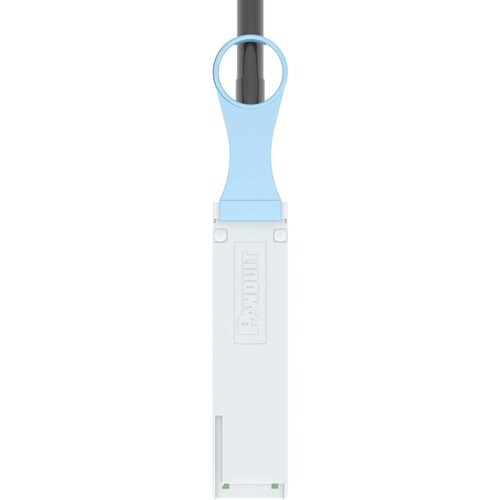

Direct attach passive copper cable assembly features QSFP28 100 Gbps hot pluggable modular connectors on each end. The high speed cable assembly has twinaxial cable, is black, and is 4 meters in length.
- 100% performance tested:Confidence that each assembly delivers specified performance for ensurenetwork availability
- High Density:Can be used in place of four SFP28 Direct Attach Cables tripling switch port density
- Low latency performance:Ideal for high performance computer clustering and other latency sensitive applications
- Passive low power assembly:Provides a low cost short reach interconnect option with no additional power draw
- Low profile :Robust easy-to-use connector latching feature allows easy installation in belly-to-belly high density installations
- Small diameter cable design:Enables proper cable management and improved airflow
- Built-in strain :relief Ensures proper bend radius control for reliable deployment
- Variety of lengths :1 to 5 meters (1 meter increments) for design flexibility and optimum airflow
Spécifications techniques
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Material Details | PVC - jacket |
| Product Color | Black |
| Color Family | Black |
| Product Material | Copper |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | PQSF2PXC4MBL |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Name | Twinaxial Network Cable |
| Brand Name | Panduit |
| Technical Information | |
| Cable Length | 13.1 ft |
| Data Transfer Rate | 100 Gbit/s |
| Device Supported | Switch |
| Computer | |
| Network Device | |
| Server | |
| Features | Strain Relief |
| Pull Tab Latch | |
| Flame Resistant | |
| Latching Connector | |
| Bendable | |
| PoE | |
| Passive | |
| Cable Type | Twinaxial |
| Connector Type on First End | QSFP28 Network |
| Connector Type on Second End | QSFP28 Network |
| American Wire Gauge | 26 AWG |
| Connector on First End Details | 1 x QSFP28 Network |
| Connector on Second End Details | 1 x QSFP28 Network |
