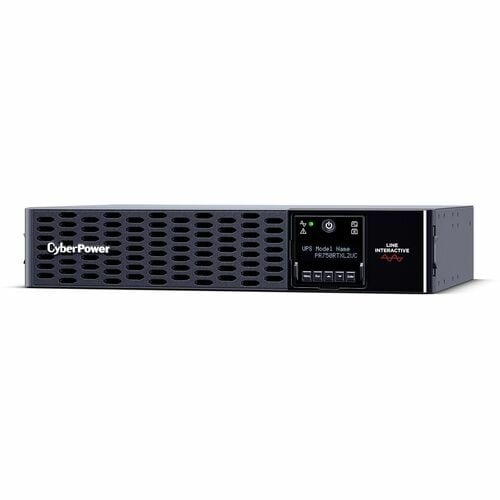

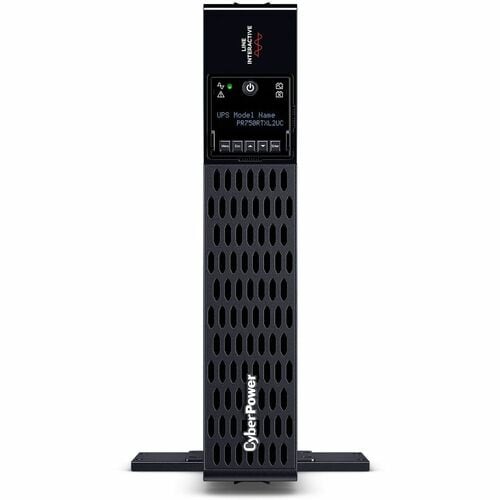

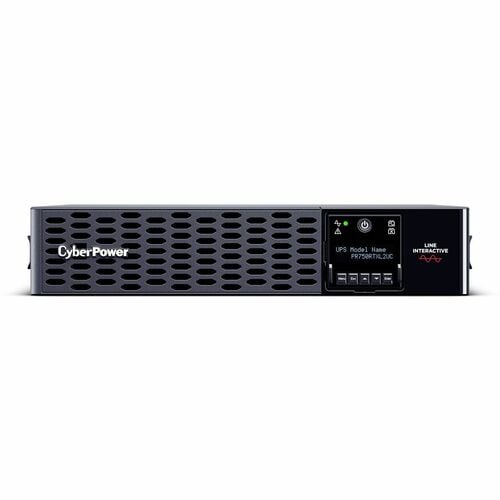

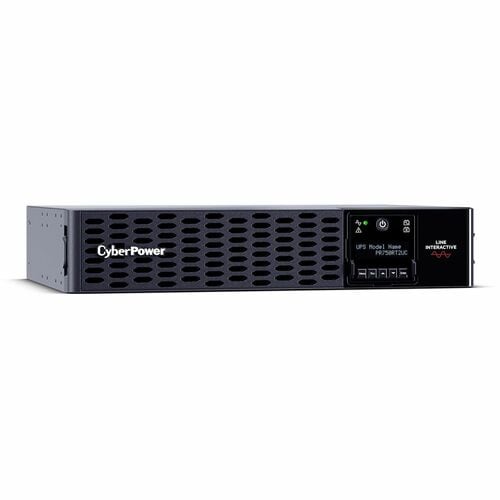

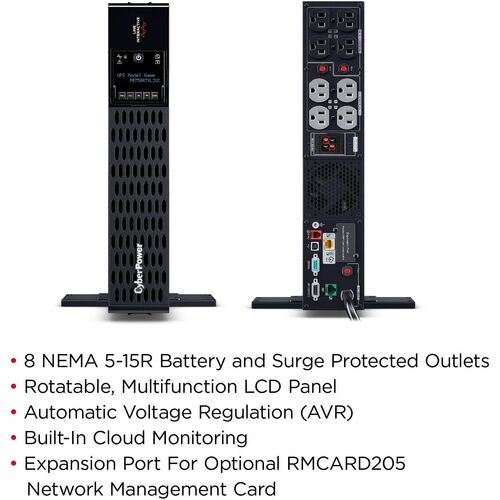

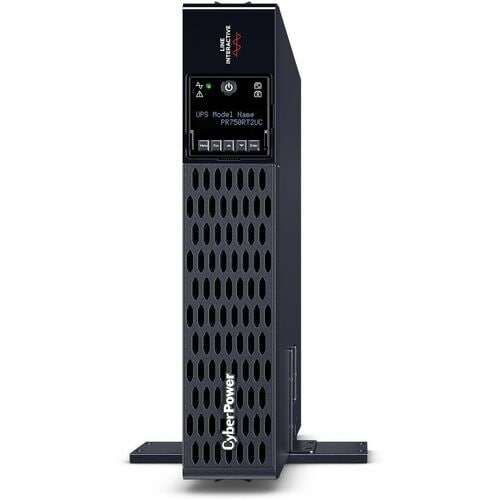

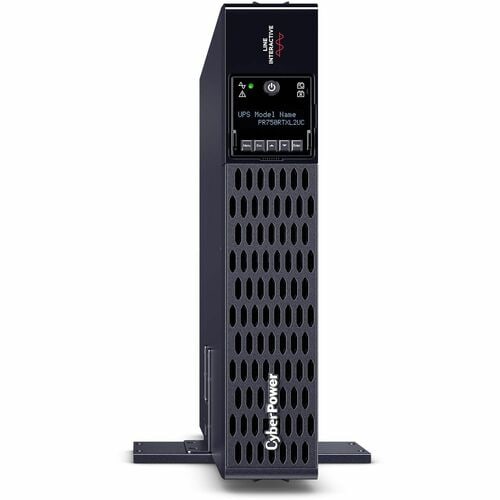

The PR750RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

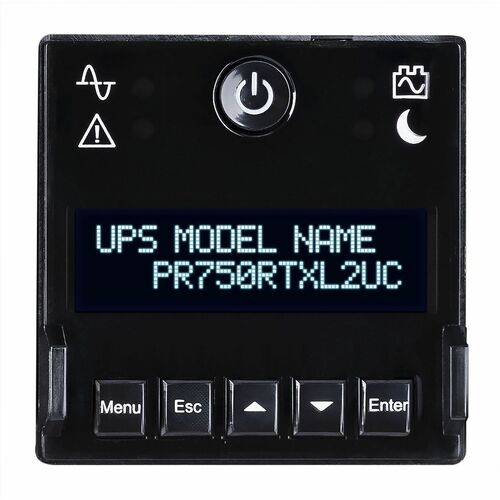

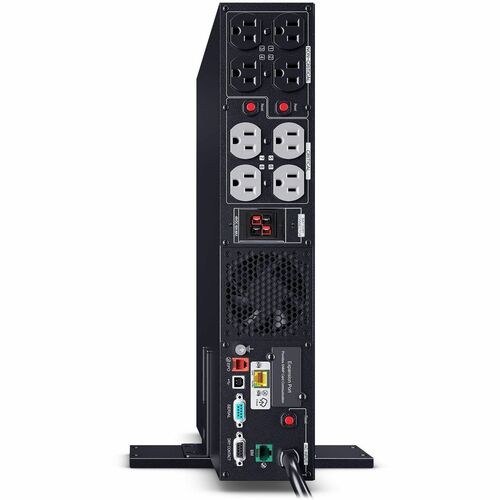

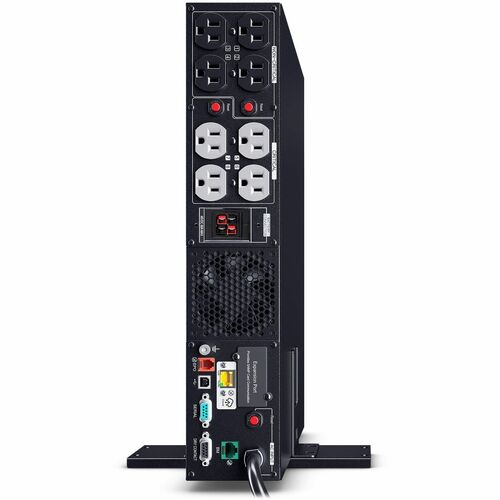

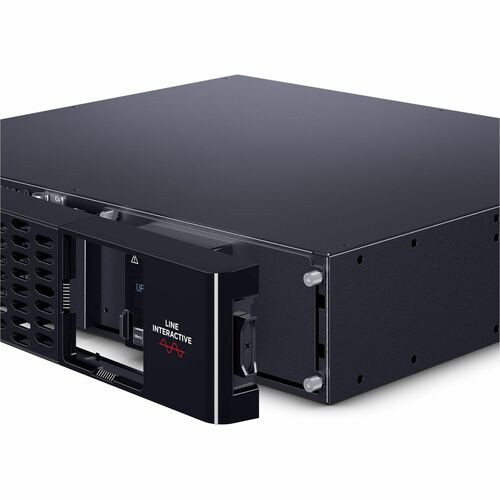

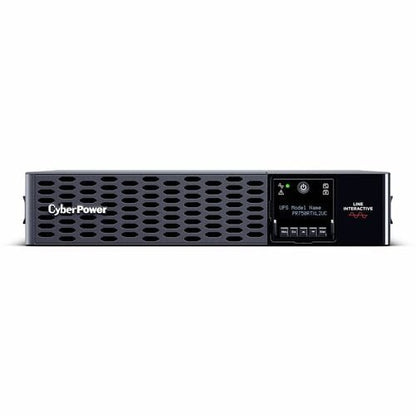

The Smart App Sinewave PR750RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR750RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U01 Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built-in cloud monitoiring.
With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR750RTXL2UC.
- Capacity: 750 VA / 750 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 100-125 VAC ± 5%
- Runtime (half/full): 28 minutes / 11.3 minutes
- Plug type & cord: NEMA 5-15P, 10 ft. cord

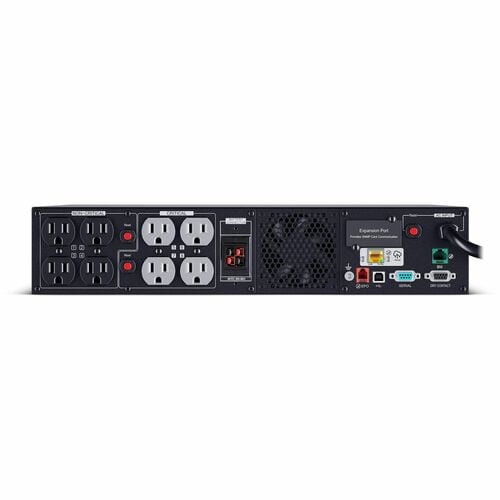

- Outlets: 8 surge + battery backup
- Outlet types: 8 × NEMA 5-15R

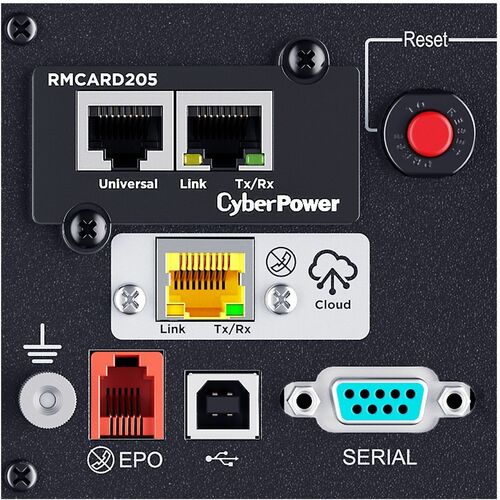

- Communication: USB, Serial, SNMP, Relay, EPO, Cloud
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205. Includes built-in cloud
- Warranty: 3 year
- Connected Equipment Guarantee: $400,000
- ENERGY STAR® qualified: Yes
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | LED Indicators:
|
| Display & Graphics | |
| Display | LCD |
| Warranty | |
| Additional Warranty Information | Connected Equipment Guarantee: Lifetime |
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Miscellaneous | |
| Certifications & Standards | UL1778 |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Conditions | |
| Thermal Dissipation | 34.90 BTU/h |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Maximum Storage Elevation | 49209.32 ft (14999000 mm) |
| Sound Emission (A-Weighted) | 52.5 dB(A) |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | PR750RTXL2UC |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PR750RTXL2UC |
| Product Name | Smart App Sinewave PR750RTXL2UC 750VA Rack/Tower UPS |
| Product Line | Smart App Sinewave |
| Brand Name | CyberPower |
| Management | |
| Network Management | Relay-MS Card |
| SNMP/HTTP Remote Monitoring | |
| Dry Contact | |
| Alarm | Overheat |
| Low Battery | |
| Battery Mode | |
| Overload | |
| Over-charge | |
| Physical Characteristics | |
| Weight (Approximate) | 56.30 lb (25537.25 g) |
| Form Factor | Rack/Tower |
| Length | 22" (558.80 mm) |
| Rack Height | 2U |
| Height | 3.40" (86.36 mm) |
| Width | 17.10" (434.34 mm) |
| Depth | 16.20" (411.48 mm) |
| Product Color | Black |
| Color Family | Black |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Battery Capacity | 7000 mAh |
| Number of Batteries | 4 |
| Backup/Run Time (Half Load) | 28 Minute |
| Backup/Run Time (Full Load) | 11.30 Minute |
| Battery Characteristics | Sealed |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| 125 V AC | |
| 110 V AC | |
| 100 V AC | |
| Surge Energy Rating | 2430 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 100 V AC - 125 V AC |
| 75 V AC - 149 V AC | |
| Output Frequency | 50 Hz |
| 60 Hz | |
| Input Frequency | 63 Hz |
| 47 Hz | |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 750 W |
| Output Power Factor | 1 |
| Technical Information | |
| Application/Usage | Server |
| VoIP | |
| Corporate | |
| Equipment | |
| Network Device | |
| Storage Device | |
| Telecommunication | |
| Overload Protection | Yes |
| Surge Suppression | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 10 ft (3.05 m) |
| Receptacle Type | NEMA 5-15R |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Number of Battery & Surge Outlets | 8 |
| Number of Critical Load Outlets | 4 |
| Transfer Time | 11 ms |
| Receptacle Detail | 8 x NEMA 5-15R |
