Data line surges make up an overwhelming majority of all surge induced damages where the equipment was thought to be already protected but had a back door such as a modem line unprotected. Network interface cards, in particular, can be destroyed by relatively mild spikes.
According to Ethernet standards (IEEE 802.3), non-AC network electrical hazards include: Direct contact between components and power or lightning circuits, static charge buildup on cables and component, high-energy transients coupled onto the local cabling system (those induced by other cables which are installed in the general proximity of network cables or lightning within a mile radius) and potential differences (even from building to building, between safety grounds to which components are connected.)
Spécifications techniques
| Environmental Conditions | |
| Maximum Operating Temperature | 113°F (45°C) |
| Power Description | |
| Maximum Surge Current | 200 A |
| Warranty | |
| Additional Warranty Information | 10 years repair or replace |
| Physical Characteristics | |
| Weight (Approximate) | 2.08 oz (58.97 g) |
| Height | 4.06" (103 mm) |
| Width | 1.85" (47 mm) |
| Depth | 1.10" (28 mm) |
| Product Color | Beige |
| Color Family | Beige |
| General Information | |
| Product Type | Surge Suppressor/Protector |
| Manufacturer Part Number | PS9-DTE |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Packaged Quantity | 1 Each |
| Manufacturer | Schneider Electric SA |

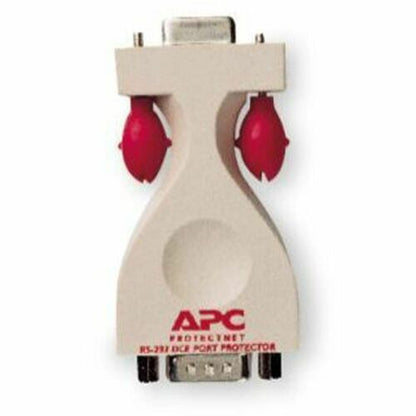

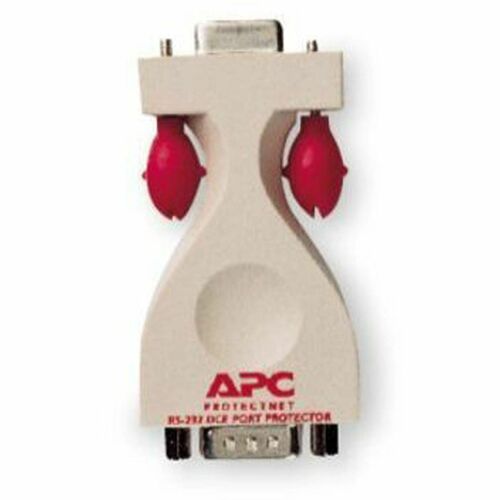

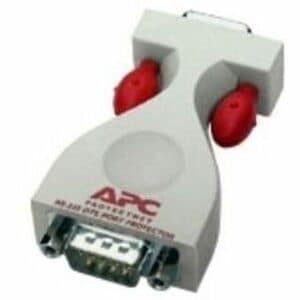

| Product Name | ProtectNet RS232 9 Pin Surge Suppressor |
| Product Line | ProtectNet |
| Brand Name | APC by Schneider Electric |
| Miscellaneous | |
| Additional Information |
|
| Package Contents | |
| Certifications & Standards | UL Listed| |
| Environmentally Friendly | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=PS9-DTE_ROHS_DECLARATION&p_FileName=PS9-DTEKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=764082&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=764082&lang=en-us |
| REACH free of SVHC | Yes |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
