À propos du produit

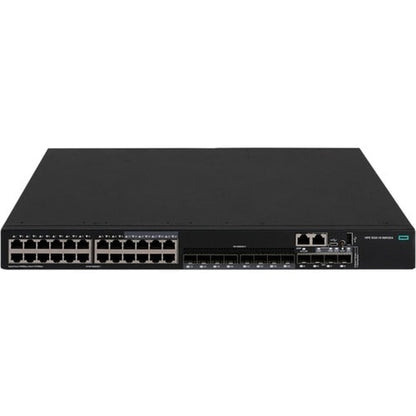

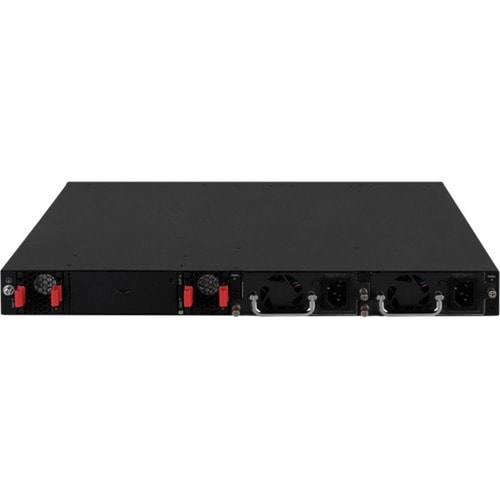

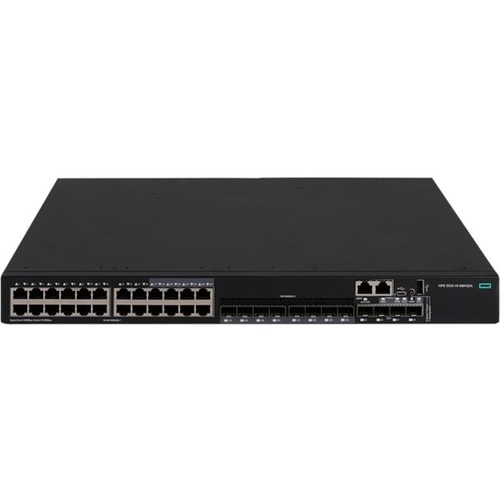

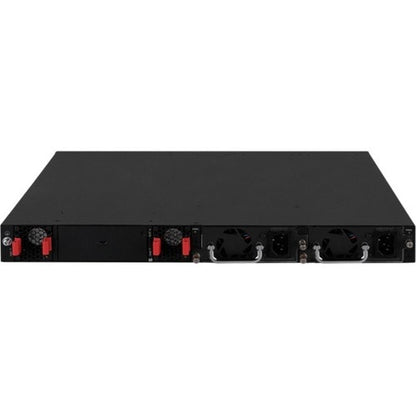

HPE FlexNetwork 5520 HI Switch Series
The HPE FlexNetwork 5520 HI Switch series delivers superior performance, high availability, and simplified manageability by leveraging advanced features at the access and aggregation layer of medium and large enterprise networks.
These switches deliver faster performance and advanced L3 features with support for larger ARP/MAC tables and Longest Prefix Match (LPM). VXLAN and EVPN enable multitenant isolation and greater scalability; high availability and resiliency provided by Distributed Resilient Network Interconnect (DRNI), Intelligent Resilient Framework (IRF), Virtual Router Redundancy Protocol (VRRP), Equal-Cost Multipath (ECMP) and Bi-directional Forwarding Detection (BFD). Real-time network health, network and switch performance and visibility provided with Intelligent Management Center (IMC) and Intelligent Network Quality Analyzer (iNQA). Support for IPv4/IPv6, OpenFlow, and MPLS/VPLS features provides investment protection and eases transition from IPv4 to IPv6 networks.
The HPE FlexNetwork 5520 HI Switch series delivers superior performance, high availability, and simplified manageability by leveraging advanced features at the access and aggregation layer of medium and large enterprise networks.
These switches deliver faster performance and advanced L3 features with support for larger ARP/MAC tables and Longest Prefix Match (LPM). VXLAN and EVPN enable multitenant isolation and greater scalability; high availability and resiliency provided by Distributed Resilient Network Interconnect (DRNI), Intelligent Resilient Framework (IRF), Virtual Router Redundancy Protocol (VRRP), Equal-Cost Multipath (ECMP) and Bi-directional Forwarding Detection (BFD). Real-time network health, network and switch performance and visibility provided with Intelligent Management Center (IMC) and Intelligent Network Quality Analyzer (iNQA). Support for IPv4/IPv6, OpenFlow, and MPLS/VPLS features provides investment protection and eases transition from IPv4 to IPv6 networks.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Can work as layer 3 routing for scalable network design
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
- Cascade to other network devices through the uplink port to expand your local area network
Spécifications techniques
| Management & Protocols | |
| Manageable | Yes |
| I/O Expansions | |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Shared SFP Slot | Yes |
| Total Number of Expansion Slots | 13 |
| Power Description | |
| Power Source | Power Supply |
| Frequency | 60 Hz |
| 50 Hz | |
| Power Consumption | 24 W |
| Number of Power Supplies Supported | 2 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Cabinet Mount | |
| Height | 1.72" (43.69 mm) |
| Width | 17.32" (439.93 mm) |
| Depth | 14.17" (359.92 mm) |
| Compatible Rack Unit | 1U |
| Media & Performance | |
| Network Technology | 100/1000Base-X |
| 10GBase-X | |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| 10 Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| 8 x Gigabit Ethernet TP/SFP Combo | |
| 16 x Gigabit Ethernet Network | |
| 1 x Expansion Slot | |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | R8M25A |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer | Hewlett Packard Enterprise |
| Product Model | 5520 24G 4SFP+ HI |
| Product Name | FlexNetwork 5520 24G 4SFP+ HI Switch |
| Product Line | FlexNetwork |
| Product Series | 5520 HI |
| Brand Name | HPE |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1v |
| IEEE 802.1w | |
| IEEE 802.2 | |
| IEEE 802.3ab | |
| IEEE 802.3ac | |
| IEEE 802.3ad | |
| IEEE 802.3ae | |
| IEEE 802.3ah | |
| IEEE 802.3az | |
| IEEE 802.3i | |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 802.3z | |
| IEEE 802.1ad | |
| IEEE 802.1ab | |
| IEEE 802.1ae | |
| IEEE 802.1ak | |
| IEEE 802.1AX | |
| IEEE 802.1p | |
| IEEE 802.1Q | |
| IEEE 802.1r | |
| IEEE 802.1s |
