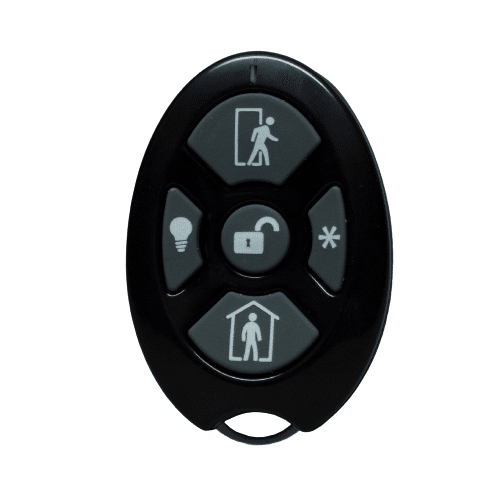

Alula Honeywell / 2GIG 345 Compatible Wireless Keyfob, Replaces KEY2-345 Overview
Five Button Fob is a portable device used to remotely control a security panel. The buttons can be configured to arm, disarm, trigger panic alarms, or control home automation functions.
Alula Honeywell/2GIG Wireless Keyfob Features
- Support for up to 8 button functions
- Low battery indication
- 2-year warranty
Enroll by placing the panel into wireless enrollment mode and pressing a fob button multiple times as instructed by the panel’s installation manual. Alternatively, the sensor ID located on the back of the fob can be used to manually enroll the fob.
Assign User: Fobs must be assigned to a user to function properly.
Loop Definitions
- Star = Loop 1
- Unlock = Loop 2
- Arm Away = Loop 3
- Arm Stay = Loop 4
* To replace the battery, remove the screw on the back of the fob and unsnap the back from the cover.
Alula Honeywell/2GIG Wireless Keyfob Specifications
- Physical
- Housing Dimensions: 2.2 x 1.5 x .6 inches (5.6 x 3.8 x 1.4 centimeters)
- Weight with Battery: 0.66 ounces (19 grams)
- Environmental
- Operating Temperature: 32°F to 120°F (0°C to 49°C)
- Maximum Humidity: 85% non-condensing relative humidity
- Sensor Specifications
- Frequency: 345 MHz
- Replacement Battery: One Panasonic CR2032
- Nominal Battery Life: 5 Years
- Transmitted Indications: Low Battery
- Certification: RE200-5: FCC, IC
**Pro Tips
Optional advanced button commands are sent by pressing the lights button and another button at the same time. Advanced button commands are transmitted on a secondary ID which is the sensor’s primary ID with the last digit replaced by a 1.
Advanced Button Commands
- Lights + Star = Loop 1
- Lights + Unlock = Loop 2
- Lights + Away = Loop 3
- Lights + Stay = Loop 4
Fob template programming can be used to enroll the fob. Some older panels require the STAY button (Loop 4) to be pressed for template programming.
LED blinks when a button press is transmitted.
Spécifications techniques
Alula Honeywell / 2GIG 345 Compatible Wireless Keyfob, Replaces KEY2-345 Overview
Five Button Fob is a portable device used to remotely control a security panel. The buttons can be configured to arm, disarm, trigger panic alarms, or control home automation functions.
Alula Honeywell/2GIG Wireless Keyfob Features
- Support for up to 8 button functions
- Low battery indication
- 2-year warranty
Enroll by placing the panel into wireless enrollment mode and pressing a fob button multiple times as instructed by the panel’s installation manual. Alternatively, the sensor ID located on the back of the fob can be used to manually enroll the fob.
Assign User: Fobs must be assigned to a user to function properly.
Loop Definitions
- Star = Loop 1
- Unlock = Loop 2
- Arm Away = Loop 3
- Arm Stay = Loop 4
* To replace the battery, remove the screw on the back of the fob and unsnap the back from the cover.
Alula Honeywell/2GIG Wireless Keyfob Specifications
- Physical
- Housing Dimensions: 2.2 x 1.5 x .6 inches (5.6 x 3.8 x 1.4 centimeters)
- Weight with Battery: 0.66 ounces (19 grams)
- Environmental
- Operating Temperature: 32°F to 120°F (0°C to 49°C)
- Maximum Humidity: 85% non-condensing relative humidity
- Sensor Specifications
- Frequency: 345 MHz
- Replacement Battery: One Panasonic CR2032
- Nominal Battery Life: 5 Years
- Transmitted Indications: Low Battery
- Certification: RE200-5: FCC, IC
**Pro Tips
Optional advanced button commands are sent by pressing the lights button and another button at the same time. Advanced button commands are transmitted on a secondary ID which is the sensor’s primary ID with the last digit replaced by a 1.
Advanced Button Commands
- Lights + Star = Loop 1
- Lights + Unlock = Loop 2
- Lights + Away = Loop 3
- Lights + Stay = Loop 4
Fob template programming can be used to enroll the fob. Some older panels require the STAY button (Loop 4) to be pressed for template programming.
LED blinks when a button press is transmitted.
