À propos du produit
Recessed Magnetic Contacts come standard in NC, NO, SPDT, and SPDT electrical configurations. Standard wide gap is 3? and several mounting options include floor or rail bracket.

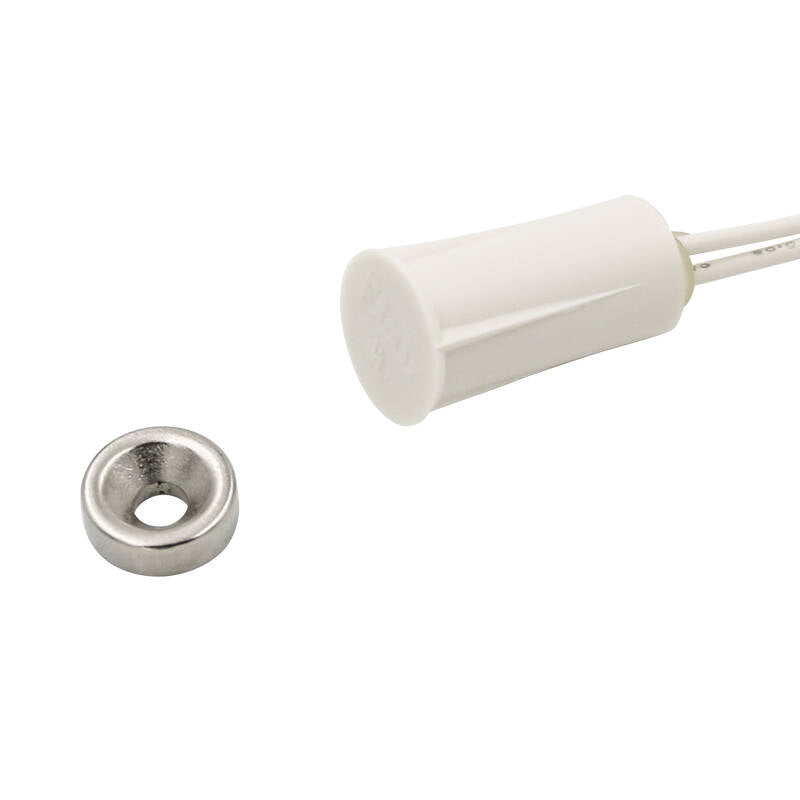

RECESSED 3/8” DIA. STUBBY MAGNETIC CONTACT RMS94-2 SERIES FEATURES:
- 3/8” Dia. Recessed Magnetic Contact
- 12” #22 AWG Wire Leads
- Rare Earth Magnet
- Self Locking in Wood
- E.O.L. Resistors, Diodes and Supervisory Loops Available
- Contacts and Magnets Available Separately
- Colors: White, Brown, Black and Gray
- Lifetime Warranty
- Safety Approvals
RECESSED 3/8” DIA. STUBBY MAGNETIC CONTACT RMS94-2 SERIES SPECIFICATIONS:
- Part Number: RMS94-2N, RMS93-2N, RMS95-2N
- ColoR: White, Brown, Gray, and Black
- Electrical Rating: RMS94-2N: Maximum 100 VDC, 50 ma., 10 W, RMS93-2N and RMS95-2N: Maximum 30 VDC, 20 ma., 3 W
- Gap: 1/2? +
- Lead Length: 12? Wire Leads
- Loop Type (with magnet present): RMS94-2N: Normally Closed, RMS93-2N: Normally Open, RMS95-2N: SPDT
- Size: 3/8? Dia. x 3/4? Long
Spécifications techniques
Recessed Magnetic Contacts come standard in NC, NO, SPDT, and SPDT electrical configurations. Standard wide gap is 3? and several mounting options include floor or rail bracket.
RECESSED 3/8” DIA. STUBBY MAGNETIC CONTACT RMS94-2 SERIES FEATURES:
- 3/8” Dia. Recessed Magnetic Contact
- 12” #22 AWG Wire Leads
- Rare Earth Magnet
- Self Locking in Wood
- E.O.L. Resistors, Diodes and Supervisory Loops Available
- Contacts and Magnets Available Separately
- Colors: White, Brown, Black and Gray
- Lifetime Warranty
- Safety Approvals
RECESSED 3/8” DIA. STUBBY MAGNETIC CONTACT RMS94-2 SERIES SPECIFICATIONS:
- Part Number: RMS94-2N, RMS93-2N, RMS95-2N
- ColoR: White, Brown, Gray, and Black
- Electrical Rating: RMS94-2N: Maximum 100 VDC, 50 ma., 10 W, RMS93-2N and RMS95-2N: Maximum 30 VDC, 20 ma., 3 W
- Gap: 1/2? +
- Lead Length: 12? Wire Leads
- Loop Type (with magnet present): RMS94-2N: Normally Closed, RMS93-2N: Normally Open, RMS95-2N: SPDT
- Size: 3/8? Dia. x 3/4? Long
