À propos du produit
Business Driver. Space Saver.NUC 13 Pro Mini PCs, Kits, and Boards offer the combination of size, performance, and reliability you need to drive modern business.It all starts with 13th Gen Intel Core processors that deliver outsized performance in a 4x4 form factor, with up to 14 processor cores (6P+8E) and up to 64GB dual-channel DDR4 memory. Select SKUs also come with Intel vPro Enterprise, which provides comprehensive security, enterprise-grade stability, and hardware-based remote management.
Spécifications techniques
| Primary Information | |
| System Type: | Personal Computer |
| Model: | NUC13ANKI5 |
| Cabinet Form Factor: | UCFF |
| Processor / Generation: | Intel 13th Generation |
| Processor / Type: | Core i5 |
| Processor / Manufacturer: | Intel |
| Multi-Core Technology: | 12-Core |
| Processor / Clock Speed: | 3.4 GHz |
| Max Turbo Frequency: | 4.6 GHz |
| Cache Memory Installed Size: | 12 MB |
| Processor / Number: | 1340P |
| Processor / Installed Qty: | 1 |
| Cache Memory Installed Size: | 12 MB |
| RAM / Technology: | DDR4 SODIMM |
| RAM / Total Slots Qty: | 2 |
| RAM / Total Installed Size: | 8 GB |
| RAM / Memory Speed: | 3200 MHz |
| RAM Form Factor: | SODIMM |
| RAM / Max Supported Size: | 64 GB |
| Storage Controller Type: | M.2 |
| Hard Drive / Type: | SSD |
| Hard Drive Capacity / HDD: | None GB |
| Hard Drive / Installed Qty: | None |
| Hard Drive / Interface Type: | None |
| Hard Drive / Spindle Speed: | None RPM |
| SSD Capacity: | 512 GB |
| SSD / Installed Qty: | 1 |
| Optical Storage Type: | None |
| Audio Output: | 3.5mm headphone jack |
| Storage Controller Type: | M.2 |
| Storage Controller / Channel Qty: | 1 |
| Memory Card Reader: | None |
| Hard Drive / Capacity (2nd): | None GB |
| Data Link Protocol: | Wi-Fi, Bluetooth 5.3 |
| Network Controller: | Intel Wi-Fi 6E AX211 |
| Video Output Type: | 2x HDMI 2.1 TMDS Compatible | 2x DP 1.4a via Type C |
| Max Monitors Supported: | 4 |
| Video Output Interface: | HDMI; Display Port |
| Speakers: | None |
| Operating System: | Microsoft Windows 11 Professional |
| Power / Voltage Required: | 12-20 VDC |
| Interfaces & Connections: | Front: 2x USB 3.2 Rear: 2x USB 4 (type C) | 1x USB 3.2 | 1x USB 2.0 Internal: 1x USB 3.2 on m.2 22x42 (pins) | 2x USB 2.0 (headers) |
| Front I/O Ports: | 2x USB 3.2 |

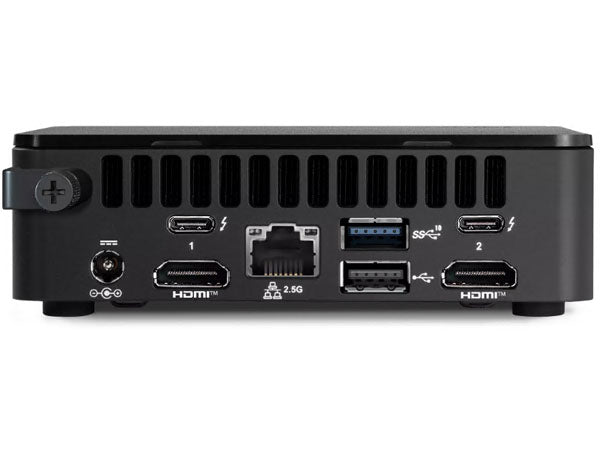

| Rear I/O Ports: | 2x USB 4 (type C) | 1x USB 3.2 | 1x USB 2.0 |
| Width: | 112 Mm |
| Depth: | 117 Mm |
| Height: | 37 Mm |
| Enclosure Color: | Black |
| Memory | |
| Cache Memory Type: | Smart Cache |
| RAM / Total Slots Qty: | 2 |
| RAM / Technology: | DDR4 SODIMM |
| RAM / Total Installed Size: | 8 GB |
| RAM / Memory Speed: | 3200 MHz |
| RAM Form Factor: | SODIMM |
| RAM / Max Supported Size: | 64 GB |
| Processor | |
| Processor / Generation: | Intel 13th Generation |
| Processor / Manufacturer: | Intel |
| Processor / Type: | Core i5 |
| Multi-Core Technology: | 12-Core |
| Processor / Clock Speed: | 3.4 GHz |
| Max Turbo Frequency: | 4.6 GHz |
| Processor / Number: | 1340P |
| Processor / Installed Qty: | 1 |
| Cache Memory Type: | Smart Cache |
| Cache Memory Installed Size: | 12 MB |
| Storage | |
| Hard Drive / Type: | SSD |
| Hard Drive Capacity / HDD: | None GB |
| Hard Drive / Installed Qty: | None |
| Hard Drive / Interface Type: | None |
| Hard Drive / Spindle Speed: | None RPM |
| SSD Capacity: | 512 GB |
| SSD / Installed Qty: | 1 |
| Optical Storage Type: | None |
| Storage Controller Type: | M.2 |
| Hard Drive / Capacity (2nd): | None GB |
| Expansion | |
| Interfaces & Connections: | Front: 2x USB 3.2 Rear: 2x USB 4 (type C) | 1x USB 3.2 | 1x USB 2.0 Internal: 1x USB 3.2 on m.2 22x42 (pins) | 2x USB 2.0 (headers) |
| Front I/O Ports: | 2x USB 3.2 |
| Rear I/O Ports: | 2x USB 4 (type C) | 1x USB 3.2 | 1x USB 2.0 |
| Networking | |
| Data Link Protocol: | Wi-Fi, Bluetooth 5.3 |
| Network Controller: | Intel Wi-Fi 6E AX211 |
| Power | |
| Power / Voltage Required: | 12-20 VDC |
