À propos du produit
The Lumaris tape light takes scene control to the next level, offering a simple and seamless way to add tunable white accent lighting to Lutron connected home projects.
Built on the ultra-reliable Lutron Clear Connect–Type X wireless technology, the Lumaris tape light is a native component within the Lutron platform including controls, apps, programming software, and Lutron Connect cloud services.

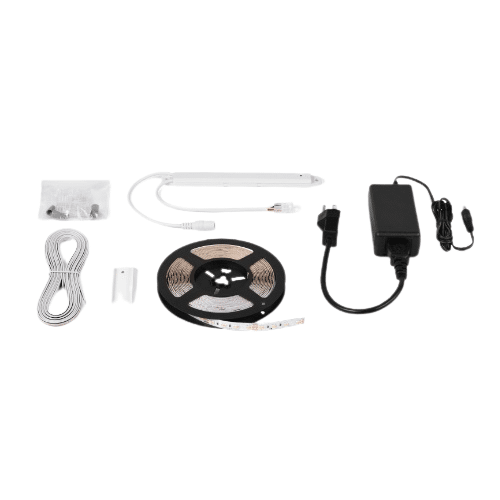

A complete Lumaris tape light solution consists of fieldcut tunable white LED tape, a wireless controller with integrated LED drivers, high-reliability punch connectors, dedicated wiring, and a plug-in power supply. Aluminum mounting channel and lens for LED tape sold separately by others.
Lutron RadioRA3 Lumaris Day Light 2500-5000K White Tunable LED Tape Lite Kit Features:
- Lighting System:
- Seamless integration with HomeWorks QSX and RadioRA 3
- User programmable intensity and color temperature presets
- Warm dim to mimic the dimming curve of anincandescent lamp
- Automatically changes color temperature based ontime of day
- Manual adjustments via the app or integration Wireless Controller (with plug-in power supply)
- Continuous, flicker-free dimming from 100% down to 0.1% of measured light output 1
- 32 W rated load (16.4 ft [5 m] of LED tape)
- 50,000 hours rated lifetime 2
- Ambient operating temperature: 32 °F to 104 °F(0 °C to 40 °C)
- Uses Clear Connect–Type X wireless communication
- Output short-circuit and overload-protection
- Low-profile, easy to hide
- Barrel connector for easy installation

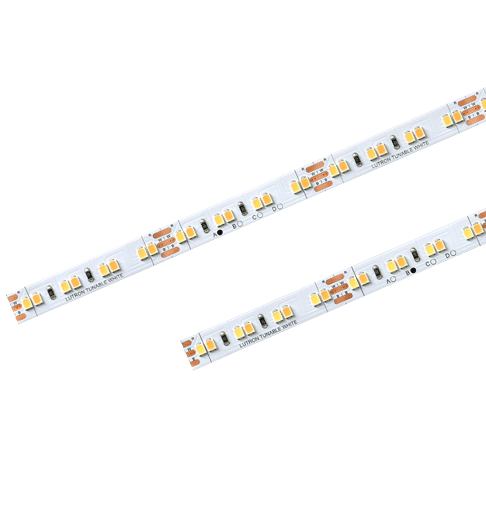

- LED Tape:
- 2-channel tunable white
- Two color temperature ranges available:
- Soft White: 1800 K – 3000 K
- Daylight: 2500 K – 5000 K
- 90+ CRI (color rendering index)
- 3 step MacAdam ellipse (SDCM)
- Lumen output: 200 lumens per foot typical
- Luminous efficacy: 100 lumens per watt typical
- Power consumption: 1.8 W per foot typical
- Rated life: L70 – 50,000 hours
- 2 in (50.8 mm) cuttable segments
- Strong VHB adhesive
- Indoor damp/dry location rated
- Wardrobe closet rated
Lutron RadioRA3 Lumaris Day Light 2500-5000K White Tunable LED Tape Lite Kit Specifications:
- Regulatory Approvals
- Power Supply
- Limited Power Supply
- US DoE Level VI compliant
- ICES-003 compliant
- FCC Part 15 Class B compliant
- cULus Listed for USA and Canada
- Power Supply
- Wireless Controller
- cULus Listed for USA and Canada
- FCC Part 15 Class B & C compliant
- ICES-003 compliant
- Tunable White LED Tape
- cULus Listed for USA and Canada
- Indoor damp/dry location rated
- Wardrobe closet rated
- FCC Part 15 Class B compliant
- ICES-003 compliant
- Soft White/Daylight Kit (HWL-TLK-DK, HWL-TLK-SW, RRL-TLK-DL, RRL-TLK-SW)
- When combined, the wireless controller and either of the Tunable White LED tapes comply with California Title 24 requirements as detailed in Reference Joint Appendix JA8 for High Luminous Efficacy Light Sources
- Electrical
- Power Supply
- Input: 100–240 V~ 50/60 Hz 1 A max
- Output: 24 V- 1.5 A
- Power Supply
- Wireless Controller
- Input: 24 V- 1.5 A
- Output: 24 V- 1.33 A 32 W max
- Warranty
- The warranty will not cover issues caused by use of incompatible devices (including non-Lutron LED tape and/or power supplies).
Spécifications techniques
The Lumaris tape light takes scene control to the next level, offering a simple and seamless way to add tunable white accent lighting to Lutron connected home projects.
Built on the ultra-reliable Lutron Clear Connect–Type X wireless technology, the Lumaris tape light is a native component within the Lutron platform including controls, apps, programming software, and Lutron Connect cloud services.
A complete Lumaris tape light solution consists of fieldcut tunable white LED tape, a wireless controller with integrated LED drivers, high-reliability punch connectors, dedicated wiring, and a plug-in power supply. Aluminum mounting channel and lens for LED tape sold separately by others.
Lutron RadioRA3 Lumaris Day Light 2500-5000K White Tunable LED Tape Lite Kit Features:
- Lighting System:
- Seamless integration with HomeWorks QSX and RadioRA 3
- User programmable intensity and color temperature presets
- Warm dim to mimic the dimming curve of anincandescent lamp
- Automatically changes color temperature based ontime of day
- Manual adjustments via the app or integration Wireless Controller (with plug-in power supply)
- Continuous, flicker-free dimming from 100% down to 0.1% of measured light output 1
- 32 W rated load (16.4 ft [5 m] of LED tape)
- 50,000 hours rated lifetime 2
- Ambient operating temperature: 32 °F to 104 °F(0 °C to 40 °C)
- Uses Clear Connect–Type X wireless communication
- Output short-circuit and overload-protection
- Low-profile, easy to hide
- Barrel connector for easy installation
- LED Tape:
- 2-channel tunable white
- Two color temperature ranges available:
- Soft White: 1800 K – 3000 K
- Daylight: 2500 K – 5000 K
- 90+ CRI (color rendering index)
- 3 step MacAdam ellipse (SDCM)
- Lumen output: 200 lumens per foot typical
- Luminous efficacy: 100 lumens per watt typical
- Power consumption: 1.8 W per foot typical
- Rated life: L70 – 50,000 hours
- 2 in (50.8 mm) cuttable segments
- Strong VHB adhesive
- Indoor damp/dry location rated
- Wardrobe closet rated
Lutron RadioRA3 Lumaris Day Light 2500-5000K White Tunable LED Tape Lite Kit Specifications:
- Regulatory Approvals
- Power Supply
- Limited Power Supply
- US DoE Level VI compliant
- ICES-003 compliant
- FCC Part 15 Class B compliant
- cULus Listed for USA and Canada
- Power Supply
- Wireless Controller
- cULus Listed for USA and Canada
- FCC Part 15 Class B & C compliant
- ICES-003 compliant
- Tunable White LED Tape
- cULus Listed for USA and Canada
- Indoor damp/dry location rated
- Wardrobe closet rated
- FCC Part 15 Class B compliant
- ICES-003 compliant
- Soft White/Daylight Kit (HWL-TLK-DK, HWL-TLK-SW, RRL-TLK-DL, RRL-TLK-SW)
- When combined, the wireless controller and either of the Tunable White LED tapes comply with California Title 24 requirements as detailed in Reference Joint Appendix JA8 for High Luminous Efficacy Light Sources
- Electrical
- Power Supply
- Input: 100–240 V~ 50/60 Hz 1 A max
- Output: 24 V- 1.5 A
- Power Supply
- Wireless Controller
- Input: 24 V- 1.5 A
- Output: 24 V- 1.33 A 32 W max
- Warranty
- The warranty will not cover issues caused by use of incompatible devices (including non-Lutron LED tape and/or power supplies).
